Square mesh AL

Product catalog summary

Overview: This document provides technical specifications for expanded and flattened square mesh made from aluminium. It details various types of mesh, including SQ 40, SQ 50, SQ 60, and SQ 70, with specific dimensions and characteristics.

Specifications:

Material: Natural anodised aluminium.
Mesh Types: SQ 40, SQ 50, SQ 60, SQ 70.
Dimensions: The document lists dimensions for each type, including long way (DL) and short way (DC) measurements, both actual and nominal.
Weight: Provided in kg/m² for each mesh type.
Strand Width and Thickness: Detailed for each mesh type, with strand width (av) and thickness (sp) in mm.

Mesh Types and Characteristics:

SQ 40: Available in dimensions 40 x 30 mm, with a thickness of 3 mm and a weight of 1.9 kg/m².
SQ 50: Dimensions 50 x 37 mm, thickness 3 mm, weight 1.6 kg/m².
SQ 60: Dimensions 60 x 45 mm, thickness 4 mm, weight 2.2 kg/m².
SQ 70: Dimensions 70 x 53 mm, thickness 4 mm, weight 2 kg/m².

Manufacturing Notes:

All mesh types are made to order.
Mesh is available in both flattened (S) and square (Q) forms.

Key Terms:

DL: Long way of the mesh.
DC: Short way of the mesh.
av: Strand width.
sp: Thickness.

Catalog excerpts

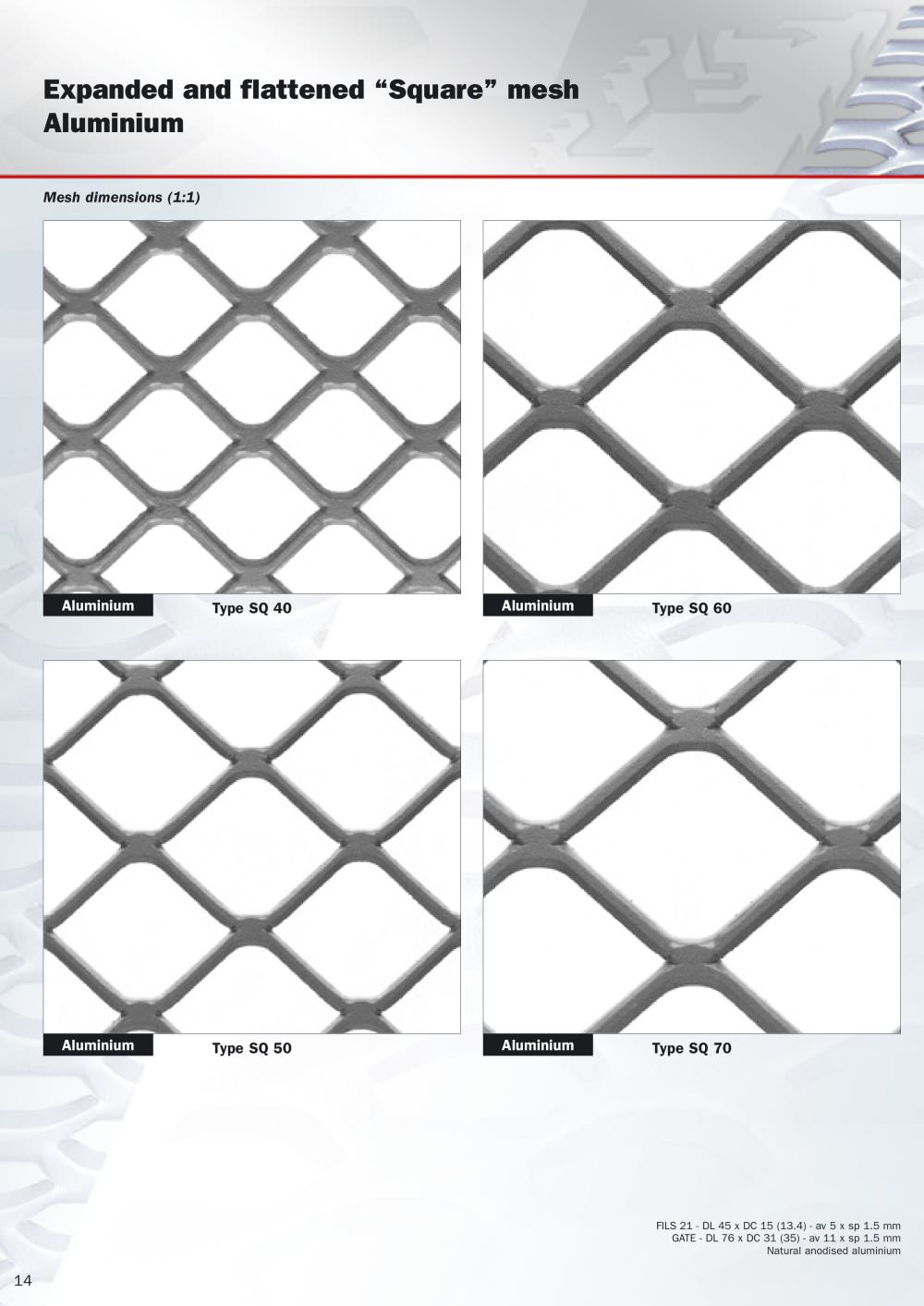

Expanded and flattened “Square” mesh Aluminium Type SQ 40 Type SQ 60 Type SQ 50 Type SQ 70 FILS 21 - DL 45 x DC 15 (13.4) - av 5 x sp 1.5 GATE - DL 76 x DC 31 (35) - av 11 x sp 1.5 Natural anodised aluminium Aluminium Aluminium Aluminium Aluminium Mesh dimensions (1:1) 14

Open the catalog to page 1

SQ 40 sp 3 40 x 30 40 x 30 3.5 3 1.9 made to order made to order Q 40 sp 3 40 x 30 40 x 27 3.5 3 2.1 made to order made to order SQ 50 sp 3 50 x 37 50 x 37 3.5 3 1.6 made to order made to order Q 50 sp 3 50 x 37 50 x 35 3.5 3 1.8 made to order made to order SQ 60 sp 4 60 x 45 60 x 45 4.5 4 2.2 made to order made to order Q 60 sp 4 60 x 45 60 x 41 4.5 4 2.65 made to order made to order SQ 70 sp 4 70 x 53 70 x 53 4.8 4 2 made to order made to order Q 70 sp 4 70 x 53 70 x 48 4.8 4 2.2 made to order made to order S = Flattened Q = Square The highlighted data are for the mesh in the photos. (DC) Type...

Open the catalog to page 2
