- Osso Bin (Large)
Osso Bin (Large)
Osso Bin (Large)
Recommended foundation consists of one pad measuring 550 x 550 x 300 mm made from C20 concrete.
Follow health and safety lifting guidelines. Two people are required for off-loading and positioning the product.
Maintenance varies based on usage and location. All elements should be cleaned annually. Galvanised and powder-coated mild steel require maintenance only if damaged, while stainless steel requires no maintenance. Note that pinholing may occur when powder coating is applied over hot dip galvanised surfaces, which is not considered a defect.
The bin is made of galvanised and powder-coated mild steel. The bin liner is made from pre-galvanised mild steel sheet, and the bin lid is made from satin polished stainless steel with a hinge for access to the removable bin liner.
Metric: Length 500mm, Width 500mm, Height 850mm
Imperial: Length 1’ 7½”, Width 1’ 7½”, Height 2’ 9½”
95 liters
36 kg
Fixing centres are 260mm (10”) x 225mm (9”) with three sleeve anchors concealed in the base.
Catalog excerpts

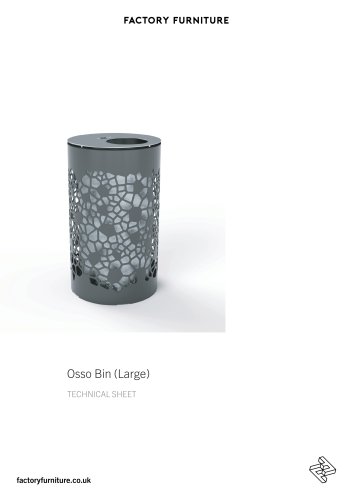

FACTORY FURNITURE Osso Bin (Large) TECHNICAL SHEET
Open the catalog to page 1
Bin - Galvanised & powder-coated mild steel* Bin liner - Pre-galvanised mild steel sheet Bin lid - Satin polished stainless steel - hinged for access to removable bin liner 1 no. pad 550 x 550 x 300 mm in C20 concrete (recommendation only) Dimensions Metric L 500mm | width 500mm | height 850mm Imperial L 1’ 7½” | width 1’ 7½” | height 2’ 9½” Fixing centres & method 260mm (10”) x 225mm (9”) 3 no. sleeve anchors (concealed in base) Handling Please observe health & safety lifting guidelines. Two people will be required for the off-loading and positioning of product Maintenance Depends on usage and...
Open the catalog to page 2All Factory Street Furniture catalogs and technical brochures

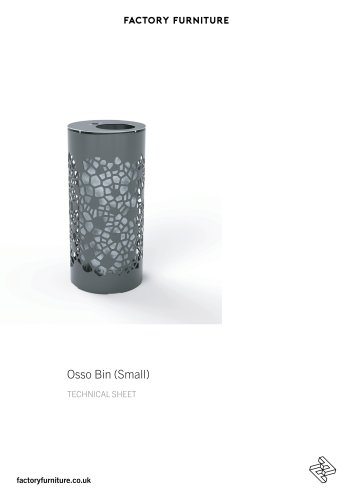

Osso Bin (Small)2 Pages

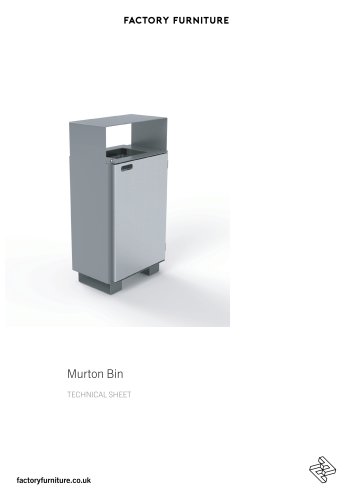

Murton Bin2 Pages

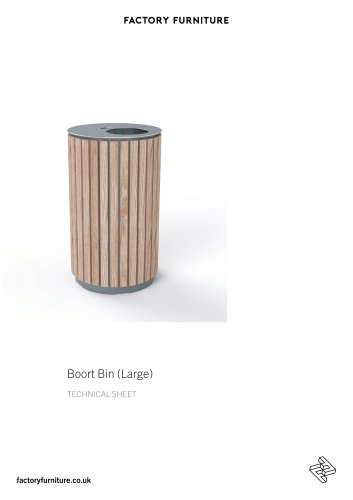

Boort Bin (Large)2 Pages

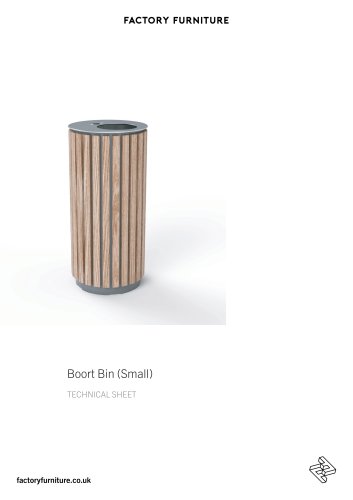

Boort Bin (Small)2 Pages

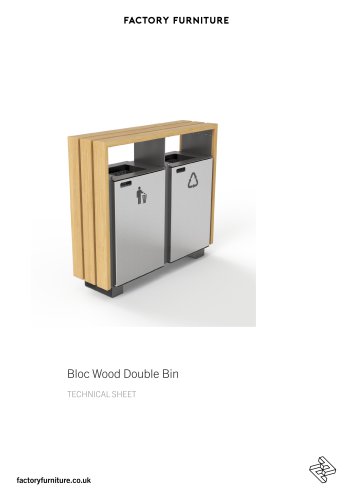

Bloc Wood Double Bin2 Pages

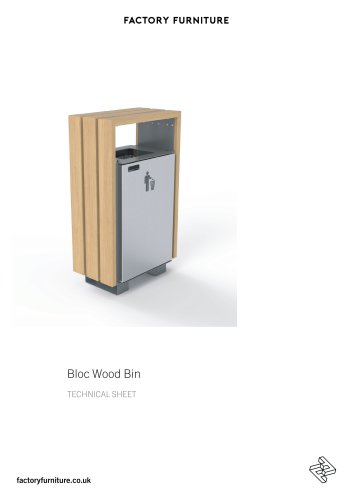

Bloc Wood Bin2 Pages

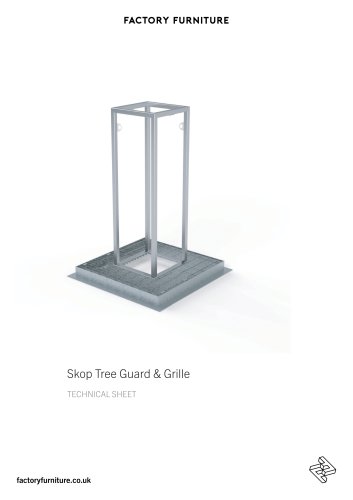

Skop Tree Guard & Grille2 Pages

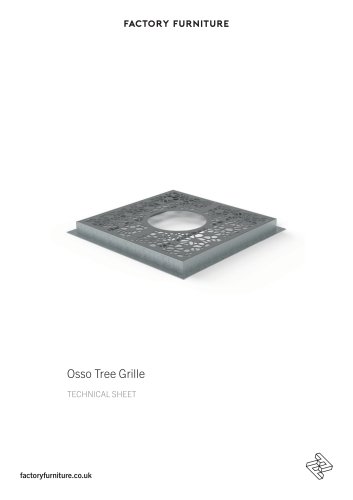

Osso Tree Grille2 Pages

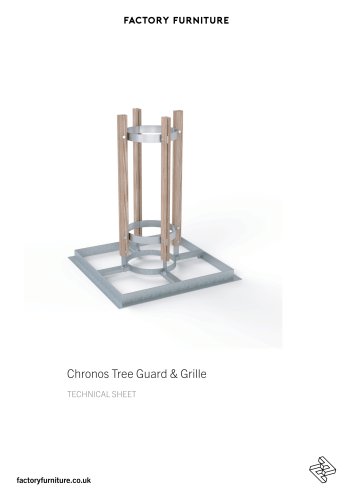

Chronos Tree Guard & Grille2 Pages

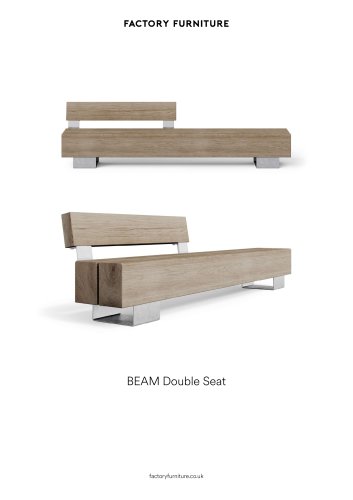

BEAM Double Seat6 Pages

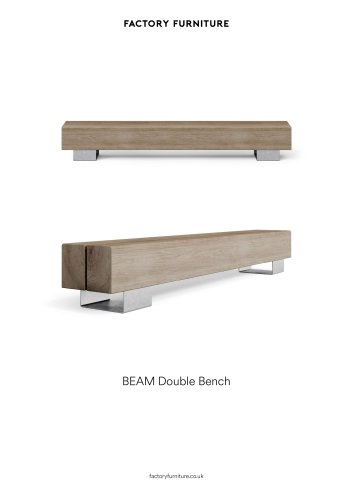

BEAM Double Bench6 Pages

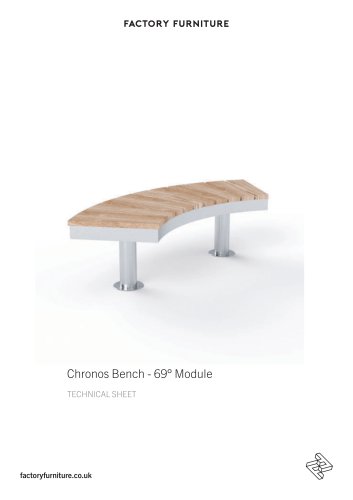

Chronos Bench - 69° Module2 Pages
Factory Furniture 2024190 Pages
Tree Granite Planter2 Pages
OSSO Radial Bench (3.0m)2 Pages
OSSO Radial Bench (2.5m)2 Pages
OSSO Radial Bench (2.0m)2 Pages
Tord Lounger2 Pages
Archived catalogs

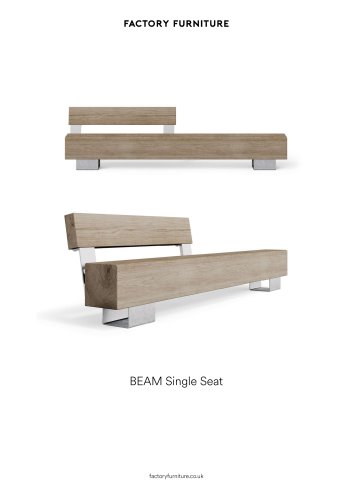

BEAM Single Seat6 Pages
