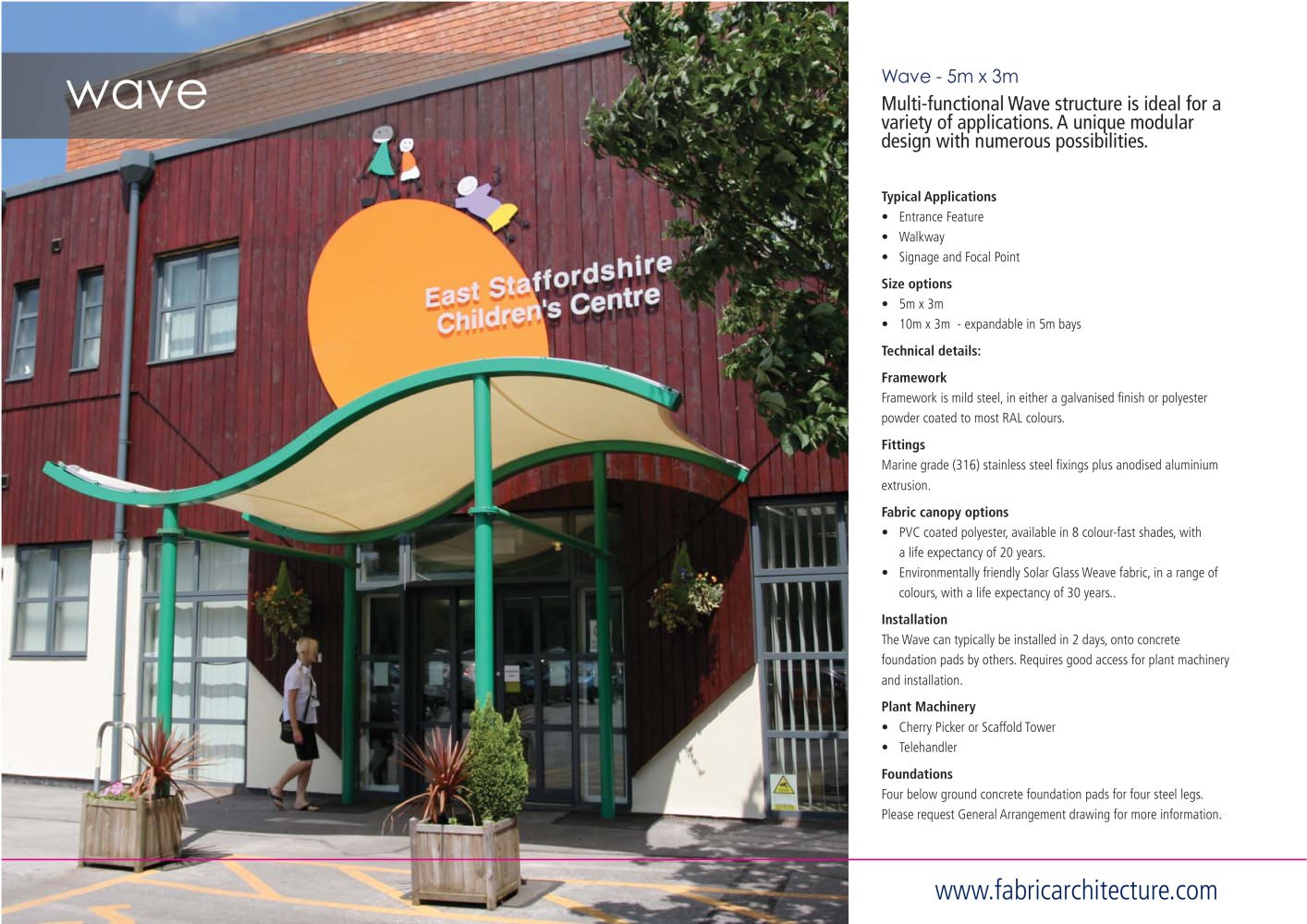

wave Four below ground concrete foundation pads for four steel legs. Please request General Arrangement drawing for more information. Foundations Cherry Picker or Scaffold Tower Telehandler The Wave can typically be installed in 2 days, onto concrete foundation pads by others. Requires good access for plant machinery and installation. Plant Machinery Installation PVC coated polyester, available in 8 colour-fast shades, with a life expectancy of 20 years. Environmentally friendly Solar Glass Weave fabric, in a range ofcolours, with a life expectancy of 30 years.. Fabric canopy options Marine grade (316) stainless steel fixings plus anodised aluminium extrusion. Technical details: Framework Fittings Framework is mild steel, in either a galvanised finish or polyester powder coated to most RAL colours. 5m x 3m 10m x 3m - expandable in 5m bays Entrance Feature Walkway Signage and Focal Point Size options Typical Applications Multi-functional Wave structure is ideal for avariety of applications. A unique modular design with numerous possibilities. Wave - 5m x 3m www.fabricarchitecture.com >

Open the catalog to page 1

Build lengthways to create walkways Expand and Adapt fabric architecture Clever framework design controls rainwater run- off without the need for complex gutter system Rainwater Management Unit B4 Nexus, Gloucester Business Park, Hurricane Rd, Brockworth, Glos. GL3 4AG fabric architecture limited T All dimensions quoted are approximate. Our policy is one of continuous improvement. Whilst every effort has been made to achieve the degree of reliability and accuracy appropriate to a product ofthis kind, the right is reserved to make changes at any time, without notice, to prices, materials,...
