1. Catalogs
  2. FABRAL
  3. 1 1/2” SSR
video corpo

1 1/2” SSR

1 1/2” SSR

1 1/2” SSR

Product catalog summary
Product Overview: Fabral's 1 1/2” SSR Standing Seam metal roofing offers a classic design with durability, suitable for both residential and commercial applications. It is made from 24 gauge steel and features narrow batten seams for aesthetic appeal and clips for easy installation and thermal movement.
Specifications: The roofing is available in eight Enduracote™ paint colors and Acrylic Coated Galvalume, with a full line of complementary trim and accessories. It is designed to withstand various weather conditions, including rain, wind, and snow.
Color Options and Reflectivity: The product comes in several colors, each with specific Initial Reflectivity (IR) values, such as White (IR=.54) and Acrylic Coated Galvalume (IR=.69). Some colors are Energy Star approved.
Enduracote™ Paint System: This system uses advanced resin technology for enhanced durability and long-term performance, offering low maintenance and lasting beauty.
Warranty: The product includes a lifetime film integrity warranty for walls and roofs, a 30-year warranty against fade and chalk, and a 10-year edge rust warranty against acid rain.
Features: The 1 1/2” SSR features a lifetime limited paint warranty, easy installation, suitability for new or re-roofing applications, and requires 30% fewer parts than conventional standing seam roofs. It can span up to 24” on center purlins or furring and accommodate pitches as low as 1:12.
Installation Details: The roofing system includes a true standing seam with clips for expansion and contraction, and requires a minimum of two screws per clip with a maximum spacing of 24” center to center. Oil canning, a potential issue, can be mitigated by installing an ethofoam backer rod under the panels.
See more

Catalog excerpts

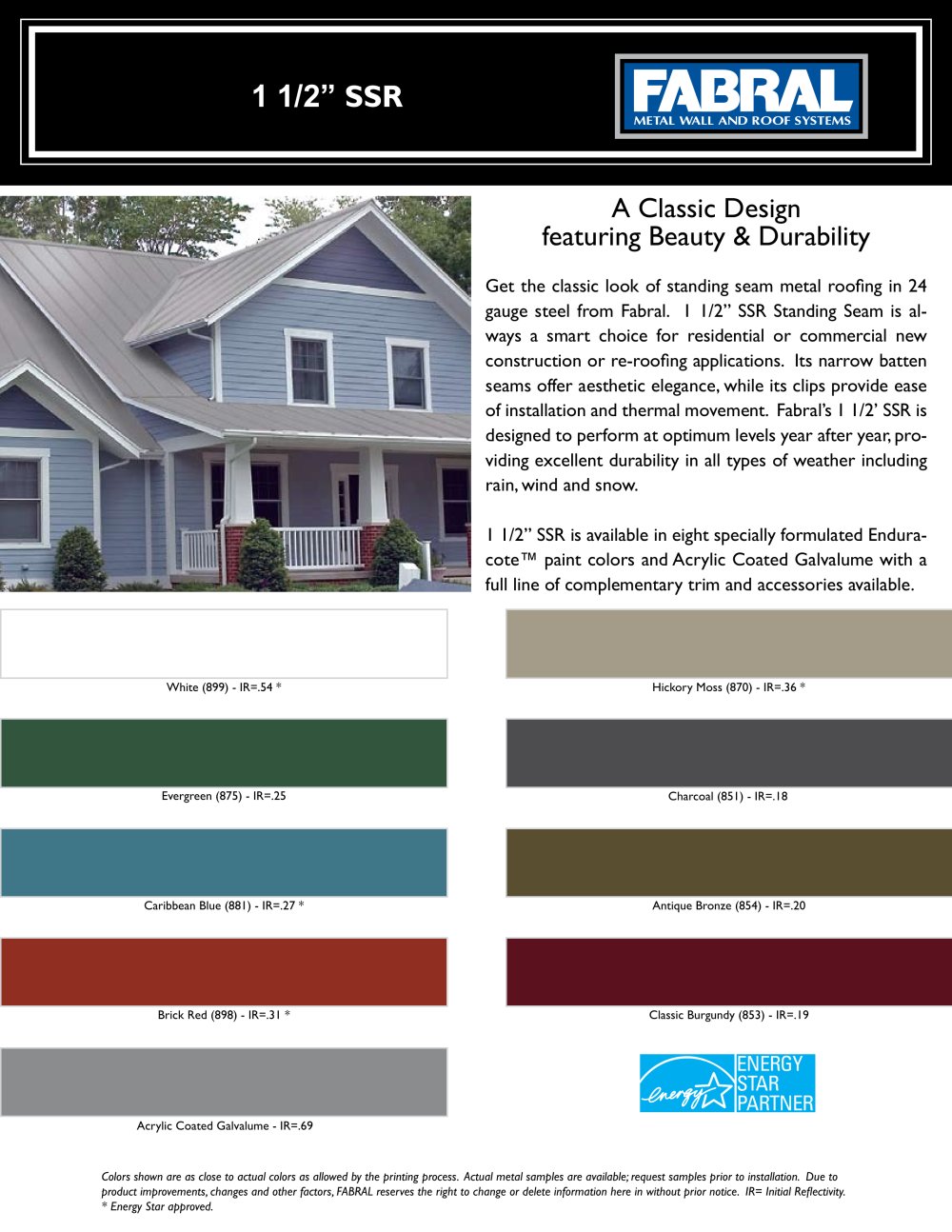

1 1/2” SSR-1

Get the classic look of standing seam metal roofing in 24 gauge steel from Fabral. 1 1/2Ԕ SSR Standing Seam is al -ways a smart choice for residential or commercial new rain, wind and snow. construction or re-roofing applications. Its narrow batten seams offer aesthetic elegance, while its clips provide ease of installation and thermal movement. Fabrals 1 1/2Ғ SSR is designed to perform at optimum levels year after year, pro viding excellent durability in all types of weather including - 1 1/2 SSR is available in eight specially formulated Endura - coteԙ paint colors and Acrylic Coated Galvalume with a full line of complementary trim and accessories available. > White (899) - IR=.54 *Hickory Moss (870) - IR=.36 *Evergreen (875) - IR=.25Charcoal (851) - IR=.18Caribbean Blue (881) - IR=.27 *Antique Bronze (854) - IR=.20Brick Red (898) - IR=.31 *Classic Burgundy (853) - IR=.19Acrylic Coated Galvalume - IR=.69 Colors shown are as close to actual colors as allowed by the printing process. Actual metal samples are available; request samples prior to installation. Due to * Energy Star approved. product improvements, changes and other factors, FABRAL reserves the right to change or delete information here in without prior notice. IR= Initial Reflectivity. size="-1">

 Open the catalog to page 1
