FAAC CITY - Traffic bollards

Product catalog summary

Overview
FAAC City provides mobile solutions for access control, city traffic management, and protection of sensitive areas using high-resistance metal bollards. These bollards regulate vehicle access and prevent illegal parking.

Product Features
FAAC City bollards are embedded in road surfaces and can be raised or lowered to control vehicle access. They are available in automatic, semi-automatic, and fixed versions, suitable for pedestrian areas, restricted zones, and sensitive locations like embassies and banks.

Automatic Bollards
Designed for frequent vehicle transit areas, these bollards are controlled via smart cards, remote controls, or schedules. They feature pneumatic or hydraulic activation and come in painted or stainless steel finishes.

Semi-Automatic Bollards
These bollards are key-activated and rise automatically, ideal for areas with limited access needs. They do not require electricity.

Fixed Bollards
Used alongside automatic or semi-automatic bollards, fixed versions provide permanent barriers while maintaining architectural consistency.

Technical Specifications
FAAC City bollards are available in various models:

FAAC City 220 H600: 600 mm stroke, 220 mm diameter, 5,000 Joules impact resistance.
FAAC City 275 H600/H800: 600 or 800 mm stroke, 275 mm diameter, 9,000 Joules impact resistance.
FAAC City K 275 H700: High-security model with 15,000 Joules impact resistance and 630,000 Joules break-in resistance.

Accessories and Customization
Accessories include flashing lights, pit covers, and electronic control units. Bollards can be customized with different colors to match urban environments.

Applications
FAAC City bollards are used in urban traffic management, authorized vehicle access control, and protection of high-value or sensitive areas.

Specifications
The FAAC CITY K system includes dimensions of 650 x 650 x 1200 mm, a 10-meter standard cable, and components like a knurled cylinder and flashing light. It also features a pit heater, pit cover, electronic control unit, and SLAVE module, with an extension cable available up to 30 meters.

Impact and Break-in Resistance
The FAAC CITY 275K bollard withstands 15,000 Joules of impact resistance and 630,000 Joules of break-in resistance, stopping vehicles within one meter of collision.

Accessories and Power Backup
Automatic bollard accessories include a power pack with a 24 V DC feeder and two 1.2 Ah buffer batteries for lowering the bollard during power cuts.

Subsidiaries and Contact Information
Contact information is provided for FAAC subsidiaries in multiple countries, with headquarters in Zola Predosa, Italy.

Disclaimer
FAAC reserves the right to make technical modifications without notice, and descriptions and illustrations are not binding.

Catalog excerpts

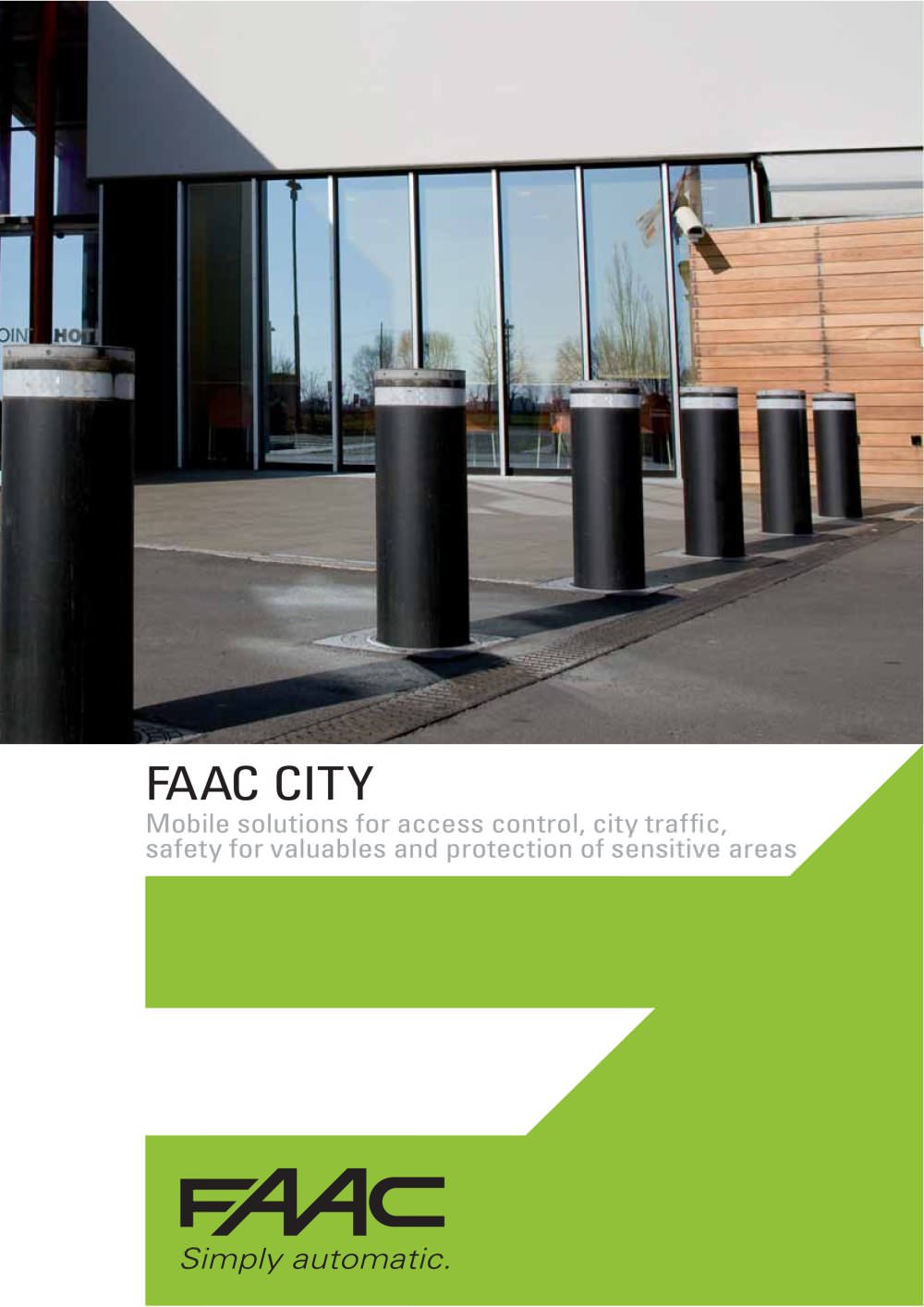

FAAC CITY Mobile solutions for access control, city traffic, safety for valuables and protection of sensitive areas

Open the catalog to page 1

FAAC CITY AUTOMATIC Recommended for areas of frequent, necessary transits every day. Thanks to Smart cards, remote controls or hourly programming, the cylinder descends and rises automatically. FAAC CITY SEMI-AUTOMATIC Recommended in areas with limited access through time or combined with the automatic model. It solves parking or transit problems, at a reasonable price and without electricity. It is activated by a key, with slight pressure. It automatically rises and locks. VARIOUS USE REQUIREMENTS SEMI-AUTOMATIC AUTOMATIC 3

Open the catalog to page 3

FAAC CITY AUTOMATIC K Impact resistance means that, at a given threshold and with this energy value, the impact of an object neither disables the concealed bollard, or damages the manoeuvring mechanisms, or parts of the structure. The concealed bollard continues to operate and safety is guaranteed. TRAFFIC BOLLARD Impact resistance 15,000 Joules FAAC CITY 275K Impact resistance 15,000 Joules Mass (kg) Speed (km/h) Mass-Speed with energy of Mass Speed (km/h) Speed (m/s) 15,000 J 14

Open the catalog to page 14

Resistance to breaking-in at a given threshold means that the impact of a vehicle with this energy value disables the concealed traffi c bollard, entailing permanent damage to the manoeuvring mechanisms and structure, but the concealed bollard stops the vehicle within one meter of the collision point. TRAFFIC BOLLARD Break-in resistance 630,000 Joules FAAC CITY 275K Break-in resistance 630,000 Joules Mass-Speed with energy of 630,000 J Mass Speed (km/h) Speed (m/s) Mass (kg) Speed (km/h) 15

Open the catalog to page 15

FAAC SUBSIDIARIES FAAC AG Tel. +41 52 3461721 Fax +41 52 3461723 Illnau, Switzerland www.faac.ch FAAC FRANCE Tel. +33 4 72218700 Fax +33 4 72218701 Corbas, France www.faac.fr FAAC GMBH Tel. +49 8654 49810 Fax +49 8654 498125 Freilassing, Germany www.faac.de FAAC MIDDLE EAST Dafza Dubai, UAE www.faac.ae [email protected] F.A.A.C. SA Tel. +34 91 6613112 Fax +34 91 6610050 Madrid, España www.faac.es FAAC UK LTD. Tel. +44 1256 318100 Fax +44 1256 318101 Basingstoke Hampshire, UK www.faac.co.uk FAAC AUSTRALIA PTY LTD Tel. +61 2 7565644 Fax +61 2 87565677 Homebush – Sydney, Australia www.faac.com.au FAAC...
