Automatic door 930 NSF

Automatic door 930 NSF

Product catalog summary

Architectural Design: The FAAC 930 NSF automations are designed with elegance and compactness, suitable for various architectural environments, even in limited spaces. They can be adapted for single sliding doors with a maximum weight of 120 kg or double sliding doors with a maximum weight of 80 kg per leaf. These automations contribute to energy savings and the removal of architectural barriers.

Reliability and Performance: The 930 NSF automations are designed for continuous use without limitations. The system includes a motor, control unit, supply unit, and optional components like batteries and locks, all assembled in a compact module for easy installation.

Intelligent Control: A microprocessor ensures real-time monitoring and intelligent control of door activities. Operation logics can be selected using a standard functions keypad.

Safety Features: The system automatically adjusts opening and closing force and speed according to door weight and friction, complying with international safety standards. In case of obstacles, the door reopens immediately and checks for obstacles at slow speed during the next closing.

Accessories: The system includes various accessories such as self-supporting head profiles, electro-mechanical locks, photocells, sensors, keyswitches, and emergency kits. Emergency batteries ensure operation for 30 minutes during power outages.

Technical Specifications: The system operates on a 230 V AC power supply with a power consumption of 100 W. It features a 24 V DC motor with an encoder, adjustable opening/closing speeds, and a static force of 150 N. The protection class is IP 23, suitable for indoor use only, with an operational temperature range of -20°C to +55°C.

Models and Usage: The 930 NSF series includes models for single and double leaves, with specific configurations for self-supporting profiles. The system offers automatic adjustments for optimal performance, including speed, acceleration, and safety features.

Programming and Management: The system includes a programming display and functions keyboard for managing access, speed, safety, diagnostics, and time slots. It supports manual and automatic operations, with troubleshooting through LED indicators.

Contact Information: FAAC provides contact details for its headquarters in Italy and subsidiaries worldwide, including locations in Switzerland, France, Germany, the Middle East, Spain, the UK, Australia, India, Poland, Belgium, Austria, the USA, Sweden, and China.

Catalog excerpts

Automations for sliding doors >

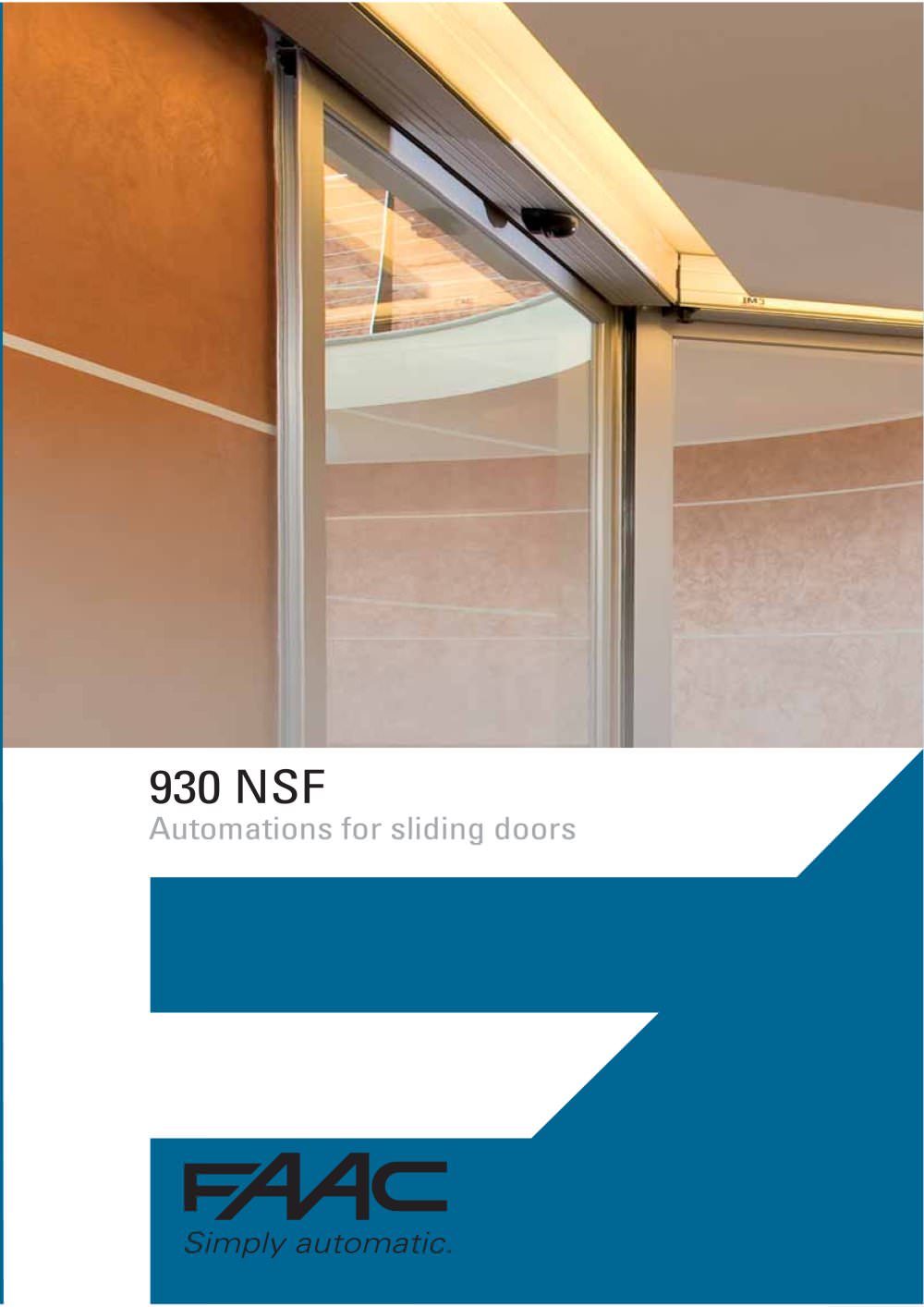

Open the catalog to page 1

single leaf, two leaves continuous duty Architectural designThanks to their sober elegance and compact dimensions, FAAC 930 NSF automations can be adapted to every type of architectural environment, even in limited space conditions. For the outmost versatility of use, the NSF Series can be adapted to sliding doors with single leaves and a maximum weight of 120 kg or with double leaves and a maximum weight of 80 kg each leaf. A 930 NSF automation also guarantees considerable energy savings as regards air-conditioning and the total removal of architectural barriers. Reliable and always slidingDesigned...

Open the catalog to page 2

1 Motor with electrical lock2 Microprocessor control unit 3 Trolleys with steel wheels and tefl on rail4 Toroidal transformer and emergency batteries 5 Drive trolley 6 Knob for manual release 7 Eyelets for a fast mechanical installation Motor with electrical lock > Trolleys with steel wheels and tefl on rail Accessories > Self-supporting head profi le 930 NSFA1 and 930NSFA2Electro-mechanical lock with internal releaseMiniswitch GLS photocellInfra-red passive sensorMicrowave radar Wall-mounted and fl ush-mounted keyswitches T20/T21 with emergency release devices Profi les for glass leaf fi ttingLock...

Open the catalog to page 3

Electric power supply 230 V ac (+6%-10%) 50 (60) Hz Power consumption 100 W Frequency of use 100% Drive unit 24 V dc motor with encoder Head profi le length VP x 2 + 100 mm Drive by electro-driven toothedbelt Opening/closing speed adjustable (two leaves) 20180 cm/s Emergency opening/closing speed adjustable Pause time adjustable from 0 to 30 s Static force 150 N (self-learning adjustment) Partial opening adustabile (two leaves) from 20 cm to total Anti-crushing device standard Photocells fail-safe standard (can be excluded) Protection class IP 23 (for indoor use only) Environmental temperature...

Open the catalog to page 4

PROGRAMMING DISPLAY > Main functions Entering of access passwordOpening speed adjustmentClosing speed adjustmentAnti break-in function management Pause times adjustmentAnti-crushing adjustment Diagnostic displayWeekly calendar managementManagement of interlock with or without memorySelection of battery operation logics Confi guration of 3 outputs on the control unit Confi guration of 2 emergency inputs on the control unit Display of number of cycles carried out Management of 5 daily time slots Programming display SD KEEPER FUNCTIONS KEYBOARD > Main functions ManualOpenAutomaticPartial openingOne...

Open the catalog to page 5

HEADQUARTERS FAAC SpAVia Benini, 1 40069 Zola Predosa (BO) ֖ Italy Tel. +39 05161724 Fax +39 051 758518 www.faacgroup.com [email protected] FAAC SUBSIDIARIES FAAC AGTel. +41 52 3461721Fax +41 52 3461723Illnau, Switzerland www.faac.ch FAAC FRANCE Tel. +33 472218700Fax +33 472218701Corbas, France www.faac.frFAAC GMBHTel. +49 8654 49810 Fax +49 8654 498125 Freilassing, Germanywww.faac.de FAAC MIDDLE EASTDubai, Emirati Arabi [email protected] F.A.A.C. SATel. +34 91 6613112 Fax +34 91 6610050Madrid, Espaֱawww.faac.esFAAC UK LTD.Tel. +44 1256 318100 Fax +44 1256 318101 Basingstoke Hampshire, UKwww.faac.co.uk...

Open the catalog to page 6
