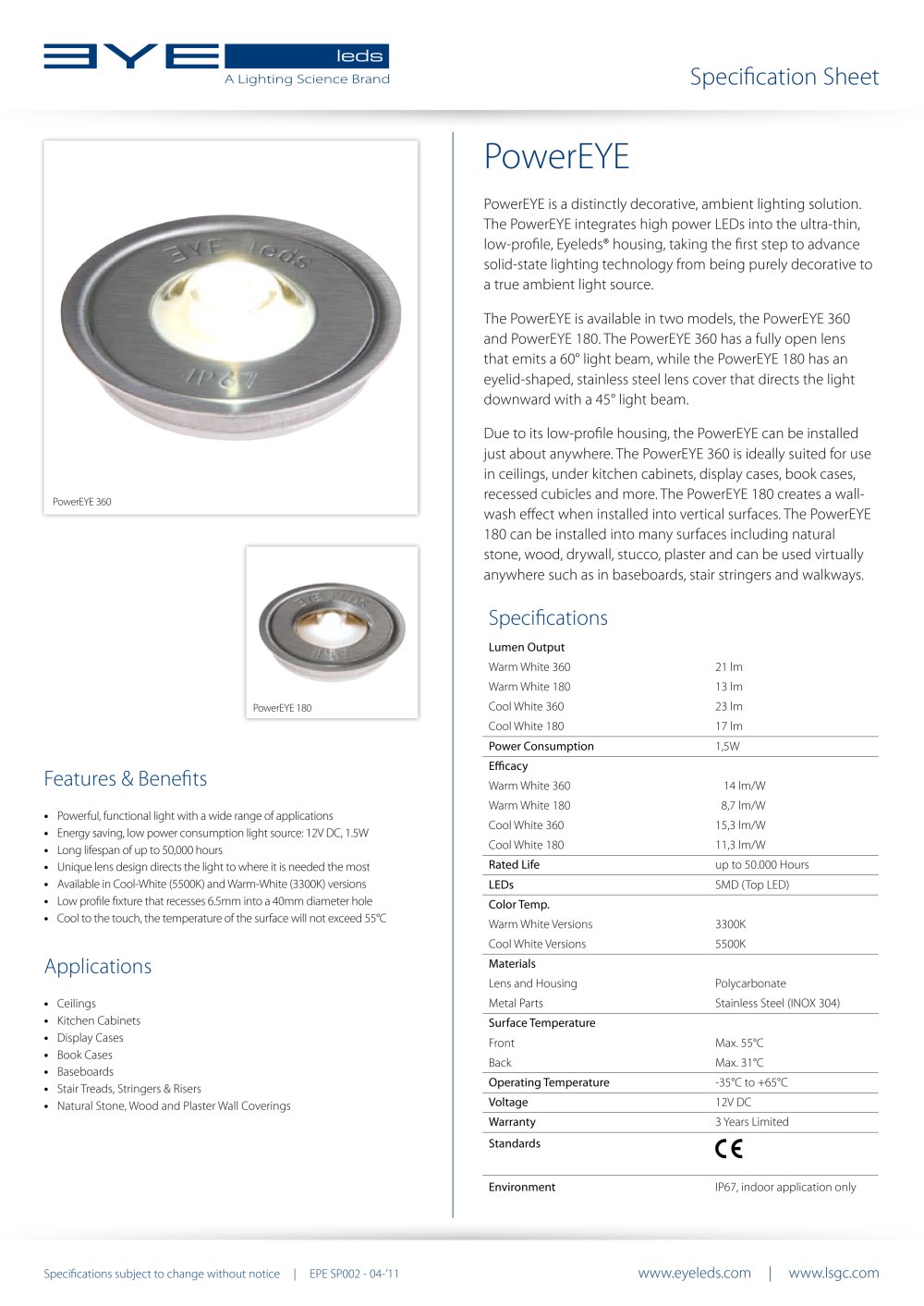

leds A Lighting Science Brand Spcification Sheet PowerEYE PowerEYE is a distinctly decorative, ambient lighting solution. The PowerEYE integrates high power LEDs into the ultra-thin, low-profile, Eyeleds® housing, taking the first step to advance solid-state lighting technology from being purely decorative to a true ambient light source. The PowerEYE is available in two models, the PowerEYE 360 and PowerEYE 180. The PowerEYE 360 has a fully open lens that emits a 60° light beam, while the PowerEYE 180 has an eyelid-shaped, stainless steel lens cover that directs the light downward with a 45° light beam. Due to its low-profile housing, the PowerEYE can be installed just about anywhere. The PowerEYE 360 is ideally suited for use in ceilings, under kitchen cabinets, display cases, book cases, recessed cubicles and more. The PowerEYE 180 creates a wall-wash effect when installed into vertical surfaces. The PowerEYE 180 can be installed into many surfaces including natural stone, wood, drywall, stucco, plaster and can be used virtually anywhere such as in baseboards, stair stringers and walkways. Specifications Lumen Output Warm White 360 21 lm Warm White 180 13 lm Cool White 360 23 lm Cool White 180 17 lm PowerEYE 360 PowerEYE 180 Power Consumption 1,5W Features & Benefits Powerful, functional light with a wide range of applications 镕 Energy saving, low power consumption light source: 12V DC, 1.5W Long lifespan of up to 50,000 hours Օ Unique lens design directs the light to where it is needed the most Available in Cool-White (5500K) and Warm-White (3300K) versions Օ Low profile fixture that recesses 6.5mm into a 40mm diameter hole Cool to the touch, the temperature of the surface will not exceed 55°C Applications Օ Ceilings Kitchen Cabinets Օ Display Cases Book Cases Օ Baseboards Stair Treads, Stringers & Risers Օ Natural Stone, Wood and Plaster Wall Coverings Efficacy Warm White 360 14 lm/W Warm White 180 8,7 lm/W Cool White 360 15,3 lm/W Cool White 180 11,3 lm/W Rated Life up to 50.000 Hours LEDs SMD (Top LED) Color Temp. Warm White Versions 3300K Cool White Versions 5500K Materials Lens and Housing Polycarbonate Metal Parts Stainless Steel (INOX 304) Surface Temperature Front Max. 55°C Back Max. 31°C Operating Temperature -35°C to +65°C Voltage 12V DC Warranty 3 Years Limited Standards C Environment IP67, indoor application only Specifications subject to change without notice | EPE SP002 - 04-'11 www.eyeleds.com | www.lsgc.com

PowerEYE Spcification Sheet PowerEYE 360 - Dimensions Top View Fixture in Mounting Ring Mounting Ring Fixture Mounting Ring - Side View Example Connection Diagram istallation Diagram PowerEYE 360 Installation Diagram PowerEYE 180 4- 0 40mm -^ 4- 0 45mm -fc- 7mm ' Ceiling/Material ' Thickness 0 40 mm 0 45 mm Ordering Information Product Description Finish/LED Colour Stainless Steel / Warm White LED Stainless Steel / Cool White LED Stainless Steel / Warm White LED Stainless Steel / Cool White LED Item Code 491.399.0U.36309 491.399.0U.03509 491.400.0U.36309 491.400.0U.03509 M W ^ 7mm Wall...
