Outdoor Pro
2Pages

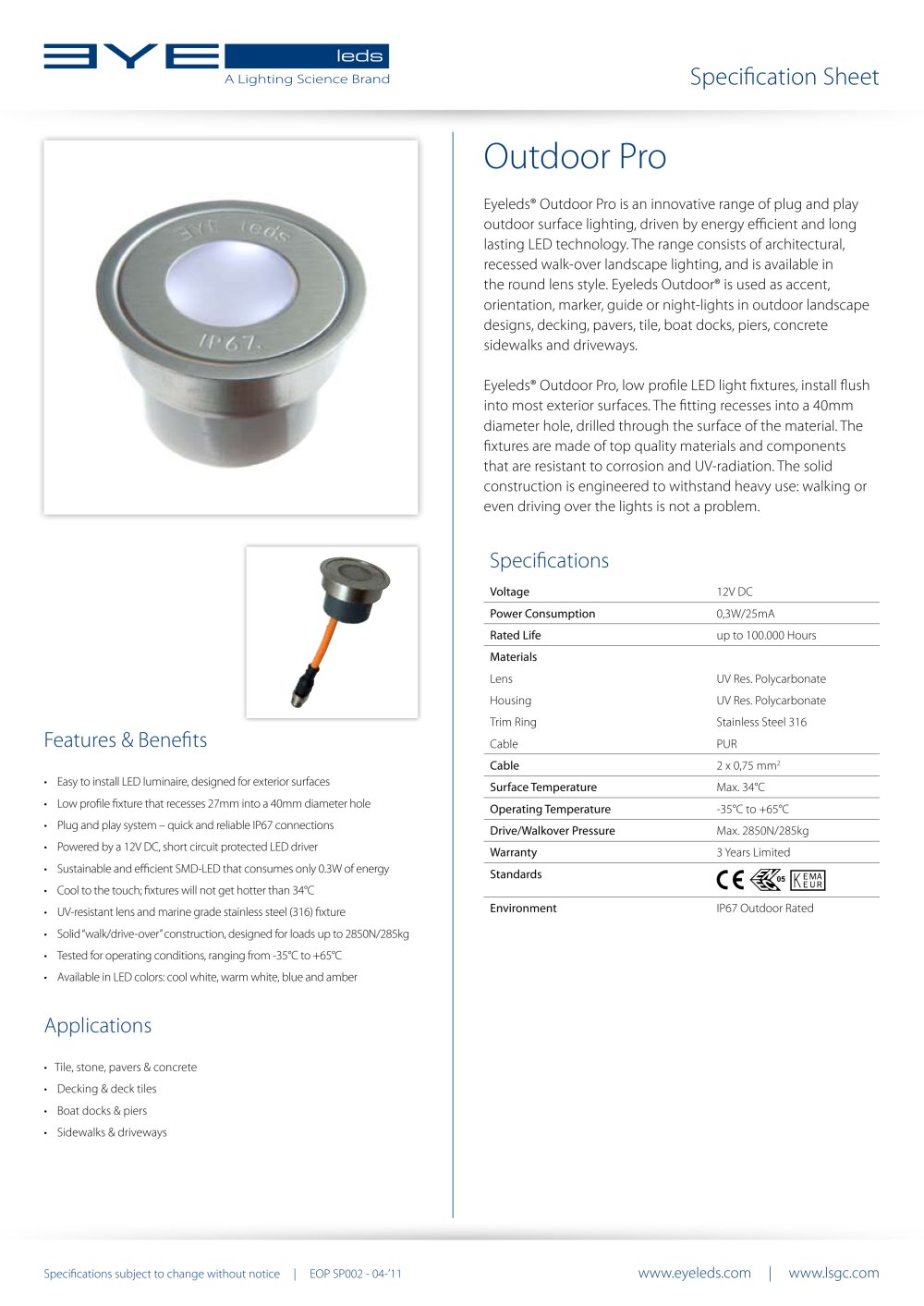

leds A Lighting Science Brand Spcification Sheet Outdoor Pro Eyeleds® Outdoor Pro is an innovative range of plug and play outdoor surface lighting, driven by energy efficient and long lasting LED technology. The range consists of architectural, recessed walk-over landscape lighting, and is available in the round lens style. Eyeleds Outdoor® is used as accent, orientation, marker, guide or night-lights in outdoor landscape designs, decking, pavers, tile, boat docks, piers, concrete sidewalks and driveways. Eyeleds® Outdoor Pro, low profile LED light fixtures, install flush into most exterior surfaces. The fitting recesses into a 40mm diameter hole, drilled through the surface of the material. The fixtures are made of top quality materials and components that are resistant to corrosion and UV-radiation. The solid construction is engineered to withstand heavy use: walking or even driving over the lights is not a problem. Specifications Voltage 12V DC Power Consumption 0,3W/25mA Rated Life up to 100.000 Hours Materials Lens UV Res. Polycarbonate Housing UV Res. Polycarbonate Trim Ring Stainless Steel 316 Cable PUR Cable 2 x 0,75 mm2 Surface Temperature Max. 34°C Operating Temperature -35°C to +65°C Drive/Walkover Pressure Max. 2850N/285kg Warranty 3 Years Limited Features & Benefits Easy to install LED luminaire, designed for exterior surfaces 镕 Low profile fixture that recesses 27mm into a 40mm diameter hole Plug and play system - quick and reliable IP67 connections Օ Powered by a 12V DC, short circuit protected LED driver Sustainable and efficient SMD-LED that consumes only 0.3W of energy Օ Cool to the touch; fixtures will not get hotter than 34°C UV-resistant lens and marine grade stainless steel (316) fixture Օ Solid "walk/drive-over" construction, designed for loads up to 2850N/285kg Tested for operating conditions, ranging from -35°C to +65°C Օ Available in LED colors: cool white, warm white, blue and amber Applications Tile, stone, pavers & concrete Օ Decking & deck tiles Boat docks & piers Օ Sidewalks & driveways Standards l/EMA IXEUR Environment IP67 Outdoor Rated Specifications subject to change without notice | EOP SP002 - 04-'11 www.eyeleds.com | www.lsgc.com

Outdoor Pro Spcification Sheet Dimensions 100mm 0,6mm -15mm m 12mm-] I 48mm 045mm 014mm S}6,2mm SJ32mm 039mm Installation 040 mm © Marking! A CAUTION: Always ensure the accessibility of cables and ^ cable connections for potential interchangeability of ' components after the installation is completed. Do not install cables and connections directly in concrete, I mortar or other adhesive bonding materials without using pMHP US鎗 F M an accessible conduit system. Example Connection Diagram Max. 50m M mלs F M BUES F 200cm 500cm Ordering Informatio Product Finish / LED Colour LED unit...
