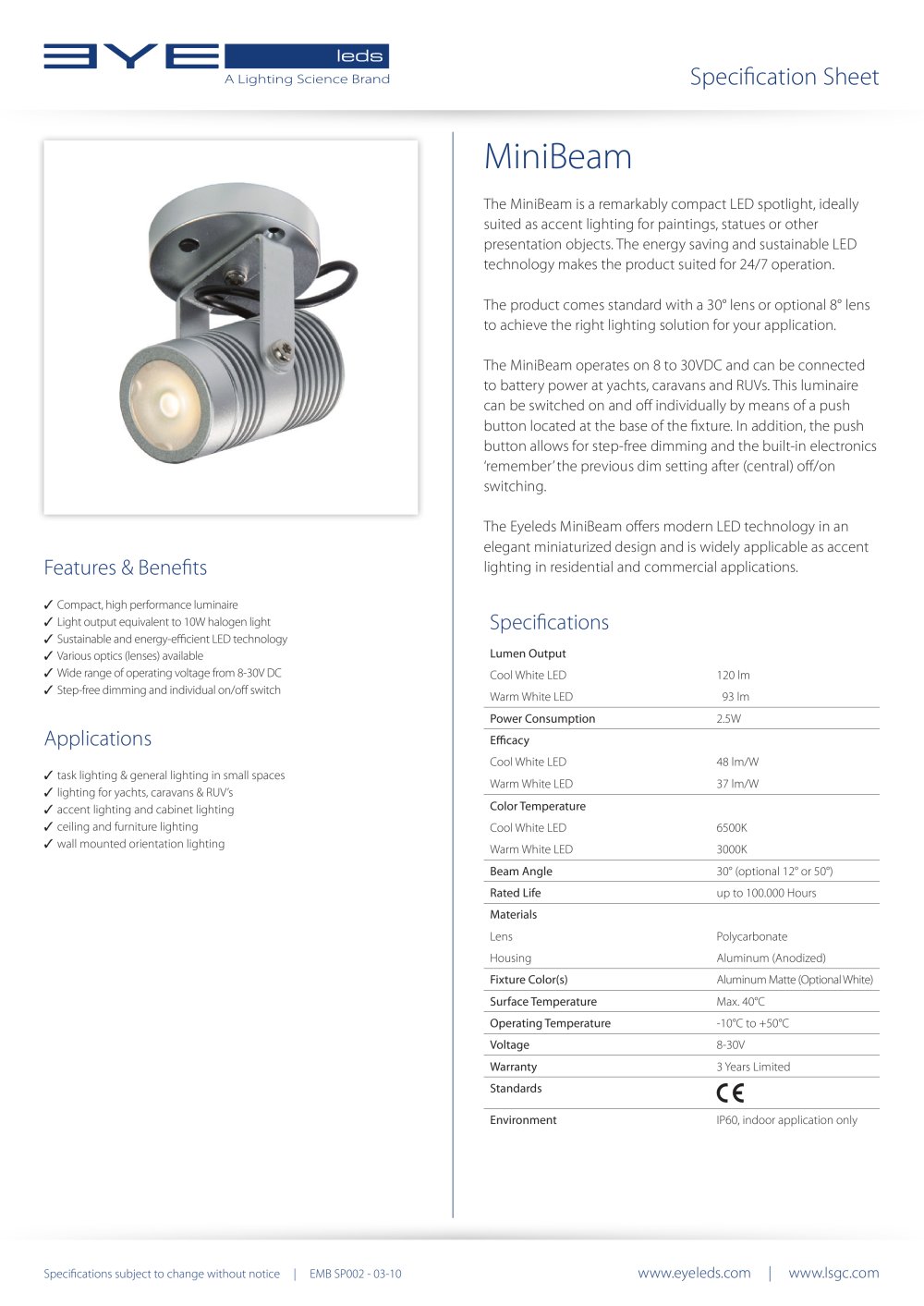

leds A Lighting Science Brand Spcification Sheet MiniBeam The MiniBeam is a remarkably compact LED spotlight, ideally suited as accent lighting for paintings, statues or other presentation objects. The energy saving and sustainable LED technology makes the product suited for 24/7 operation. The product comes standard with a 30° lens or optional 8° lens to achieve the right lighting solution for your application. The MiniBeam operates on 8 to 30VDC and can be connected to battery power at yachts, caravans and RUVs. This luminaire can be switched on and off individually by means of a push button located at the base of the fixture. In addition, the push button allows for step-free dimming and the built-in electronics 'remember' the previous dim setting after (central) off/on switching. The Eyeleds MiniBeam offers modern LED technology in an elegant miniaturized design and is widely applicable as accent lighting in residential and commercial applications. Features & Benefts ✓ Compact, high performance luminaire ✓ Light output equivalent to 10W halogen light ✓ Sustainable and energy-efficient LED technology ✓ Various optics (lenses) available ✓ Wide range of operating voltage from 8-30V DC ✓ Step-free dimming and individual on/off switch Specifications Lumen Output Cool White LED 120 lm Warm White LED 93 lm Applications Power Consumption 2.5W Efficacy Cool White LED 48 lm/W Warm White LED 37 lm/W Color Temp鯩rature Cool White LED 6500K Warm White LED 3000K Beam Angle 30° (optional 12° or 50°) Rated Life up to 100.000 Hours Materials Lens Polycarbonate Housing Aluminum (Anodized) Fixture Color(s) Aluminum Matte (Optional White) Surface Temperature Max. 40°C Operating Temperature -10°C to +50°C Voltage 8-30V Warranty 3 Years Limited Standards C Environment IP60, indoor application only ✓ task lighting & general lighting in small spaces ✓ lighting for yachts, caravans & RUV's ✓ accent lighting and cabinet lighting ✓ ceiling and furniture lighting ✓ wall mounted orientation lighting Specifications subject to change without notice | EMB SP002 - 03-10 www.eyeleds.com | www.lsgc.com

MiniBeam Spcification Sheet Dimensions 100cm )35mm M 8mm 12mm 49mm 24mm 1 43mm Ordering Information Description Finish / LED Colour Item Code 965.554.0U.17509 965.555.0U.17509 965.554.0U.00509 965.555.0U.00509 Accessory Item Code 324.073.0U.00502 324.034.0U.00102 324.034.0U.00402 324.034.0U.00202 324.034.0U.00302 324.059.0U.00201 324.074.0U.00502 MiniBeam 2.5W LED Spotlight MiniBeam 2.5W LED Spotlight MiniBeam 2.5W LED Spotlight MiniBeam 2.5W LED Spotlight Aluminum Matte / Cool White Aluminum Matte / Warm White White / Cool White* White / Warm White* Driver 28V / 27W (A) Power Cord, EU Plug...
