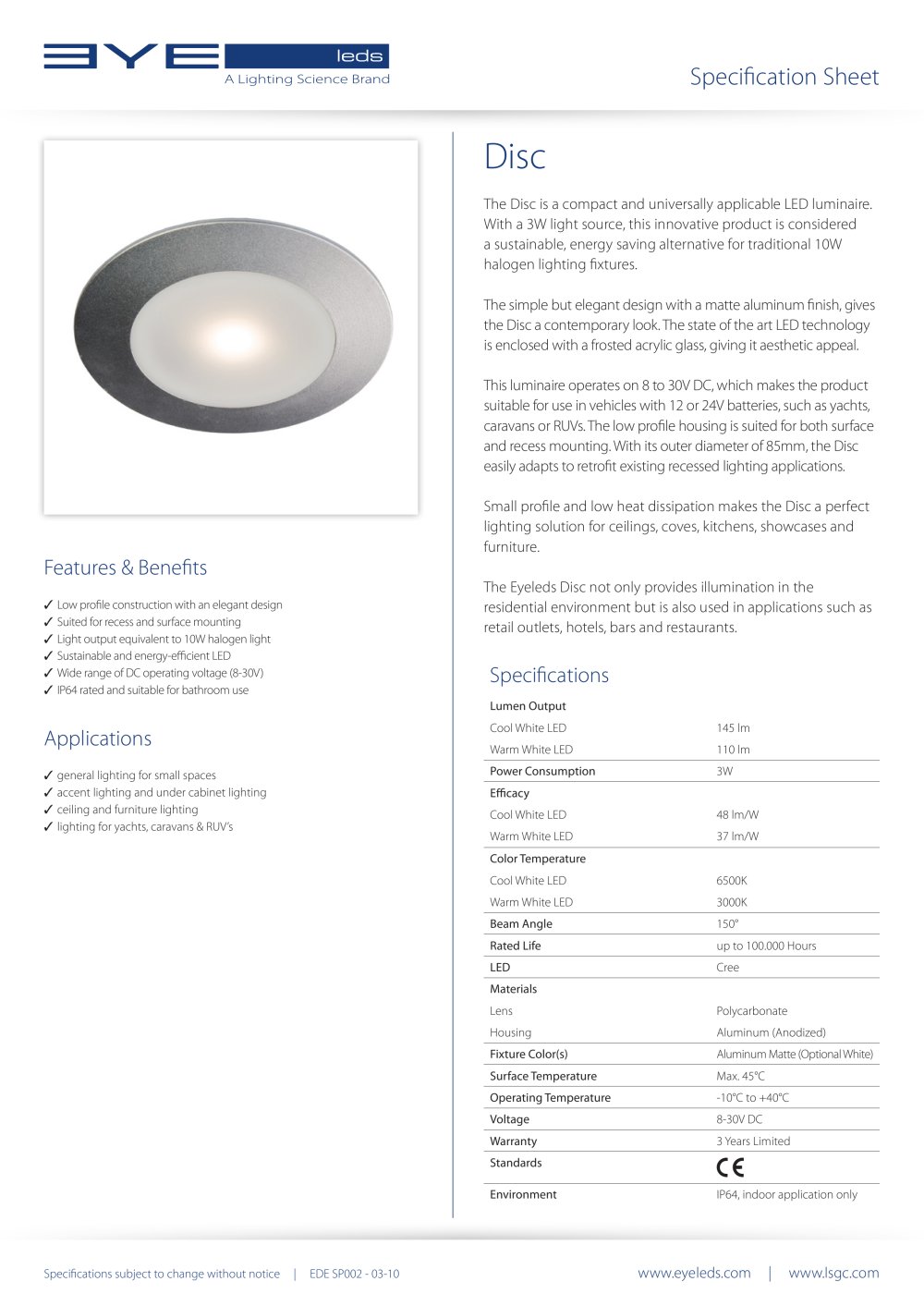

leds A Lighting Science Brand Spcification Sheet Disc The Disc is a compact and universally applicable LED luminaire. With a 3W light source, this innovative product is considered a sustainable, energy saving alternative for traditional 10W halogen lighting fixtures. The simple but l驩gant design with a matte aluminum finish, gives the Disc a contemporary look. The state of the art LED technology is enclosed with a frosted acrylic glass, giving it aesthetic appeal. This luminaire oprtes on 8 to 30V DC, which makes the product suitable for use in vehicles with 12 or 24V batteries, such as yachts, caravans or RUVs.The low profile housing is suited for both surface and recess mounting. With its outer diameter of 85mm, the Disc easily adaptsto retrofit existing recessed lighting applications. Small profile and low heat dissipation makes the Disc a perfect ighting solution for ceilings, coves, kitchens, showcases and furniture. The Eyeleds Disc not only provides illumination in the residential environment but is also used in applications such as retail outlets, hotels, bars and restaurants. Specifications Lumen Output Cool White LED 145 lm Warm White LED 110 lm Features & Benef颯ts ✓ Low profile construction with an lgant design ✓ Suited for recess and surface mounting ✓ Light output equivalent to 10W halogen light ✓ Sustainable and energy-efficient LED ✓ Wide range of DC operating voltage (8-30V) ✓ IP64 rated and suitable for bathroom use Applications ✓ general lighting for small spaces ✓ accent lighting and under cabinet lighting ✓ ceiling and furniture lighting ✓ lighting for yachts, caravans & RUV's Power Consumption 3W Efficacy Cool White LED 48 lm/W Warm White LED 37 lm/W Color Temp驩rature Cool White LED 6500K Warm White LED 3000K Beam Angle 150° Rated Life up to 100.000 Hours LED Cree Materials Lens Polycarbonate Housing Aluminum (Anodized) Fixture Color(s) Aluminum Matte (Optional White) Surface Temperature Max. 45°C Operating Temperature -10°C to +40°C Voltage 8-30V DC Warranty 3 Years Limited Standards C Environment IP64, indoor application only Specifications subject to change without notice | EDE SP002 - 03-10 www.eyeleds.com | www.lsgc.com

Disc Spcification Sheet Ordering Information Product Disc 3W LED Downlight Disc 3W LED Downlight Disc 3W LED Downlight Disc 3W LED Downlight Finish / LED Colour Aluminum Matte / Cool White Aluminum Matte / Warm White White / Cool White* White / Warm White* Item Code 967.558.0U.17509 967.559.0U.17509 967.558.0U.00509 967.559.0U.00509 Accessory # Driver 28V / 27W (A) Power Cord, EU Plug (B) Power Cord, CH Plug Power Cord, US Plug Power Cord, UK Plug Extension Cable 200cm (C) Distribution Block 6-way (D) Item Code 324.073.0U.00502 324.034.0U.00102 324.034.0U.00402 324.034.0U.00202...
