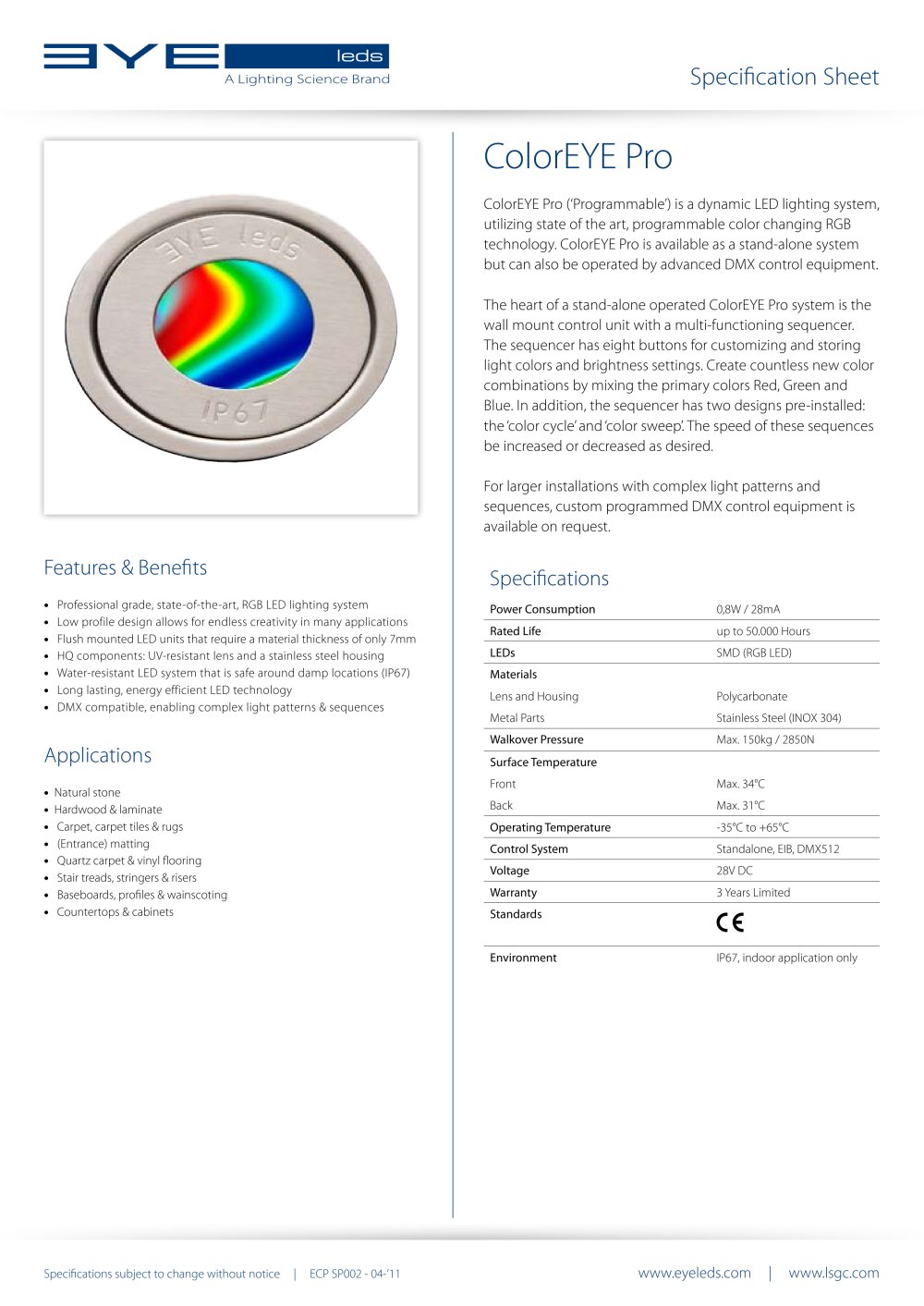

leds A Lighting Science Brand Spcification Sheet ColorEYE Pro ColorEYE Pro ('Programmable') is a dynamic LED lighting system, utilizing state of the art, programmable color changing RGB technology. ColorEYE Pro is available as a stand-alone system but can also be operated by advanced DMX control equipment. The heart of a stand-alone operated ColorEYE Pro system is the wall mount control unit with a multi-functioning sequencer. The sequencer has eight buttons for customizing and storing light colors and brightness settings. Create countless new color combinations by mixing the primary colors Red, Green and Blue. In addition, the sequencer has two designs pre-installed: the 'color cycle' and 'color sweep'. The speed of these sequences be increased or decreased as desired. For larger installations with complex light patterns and sequences, custom programmed DMX control equipment is available on request. Features & Benefits Professional grade, state-of-the-art, RGB LED lighting system 镕 Low profile design allows for endless creativity in many applications Flush mounted LED units that require a material thickness of only 7mm Օ HQ components: UV-resistant lens and a stainless steel housing Water-resistant LED system that is safe around damp locations (IP67) Օ Long lasting, energy efficient LED technology DMX compatible, enabling complex light patterns & sequences Applications Օ Natural stone Hardwood & laminate Օ Carpet, carpet tiles & rugs (Entrance) matting Օ Quartz carpet & vinyl flooring Stair treads, stringers & risers Օ Baseboards, profiles & wainscoting Countertops & cabinets Specifications Power Consumption 0,8W / 28mA Rated Life up to 50.000 Hours LEDs SMD (RGB LED) Materials Lens and Housing Polycarbonate Metal Parts Stainless Steel (INOX 304) Walkover Pressure Max. 150kg / 2850N Surface Temperature Front Max. 34°C Back Max. 31°C Operating Temperature -35°C to +65°C Control System Standalone, EIB, DMX512 Voltage 28V DC Warranty 3 Years Limited Standards CՀ Environment IP67, indoor application only Specifications subject to change without notice | ECP SP002 - 04-'11 www.eyeleds.com | www.lsgc.com

ColorEYE Pro Spcification Sheet Dimensions Fixture in Mounting Ring Mounting Ring Fixture Mounting Ring - Side View Side View Example Connection Diagram (Standaione Setup) Max. 200m Wire Run * Use repeater 2-way (AZ640001U), repeater 5-way (AZ650001U) for installations >24 light units. Installation Diagram A- 045mm -► ▼ 4- 040mm -► = 7mm Flooring Thickness Ordering Information Product Description Finish / LED Colour Item Code ColorEYE Pro Single Linkable LED Unit (Multi) Stainless Steel / RGB LED 491.313.0U.22209 Accessory # Item Code Accessory # Item Code Power Supply Pro 28V DC / 27W (A)...
