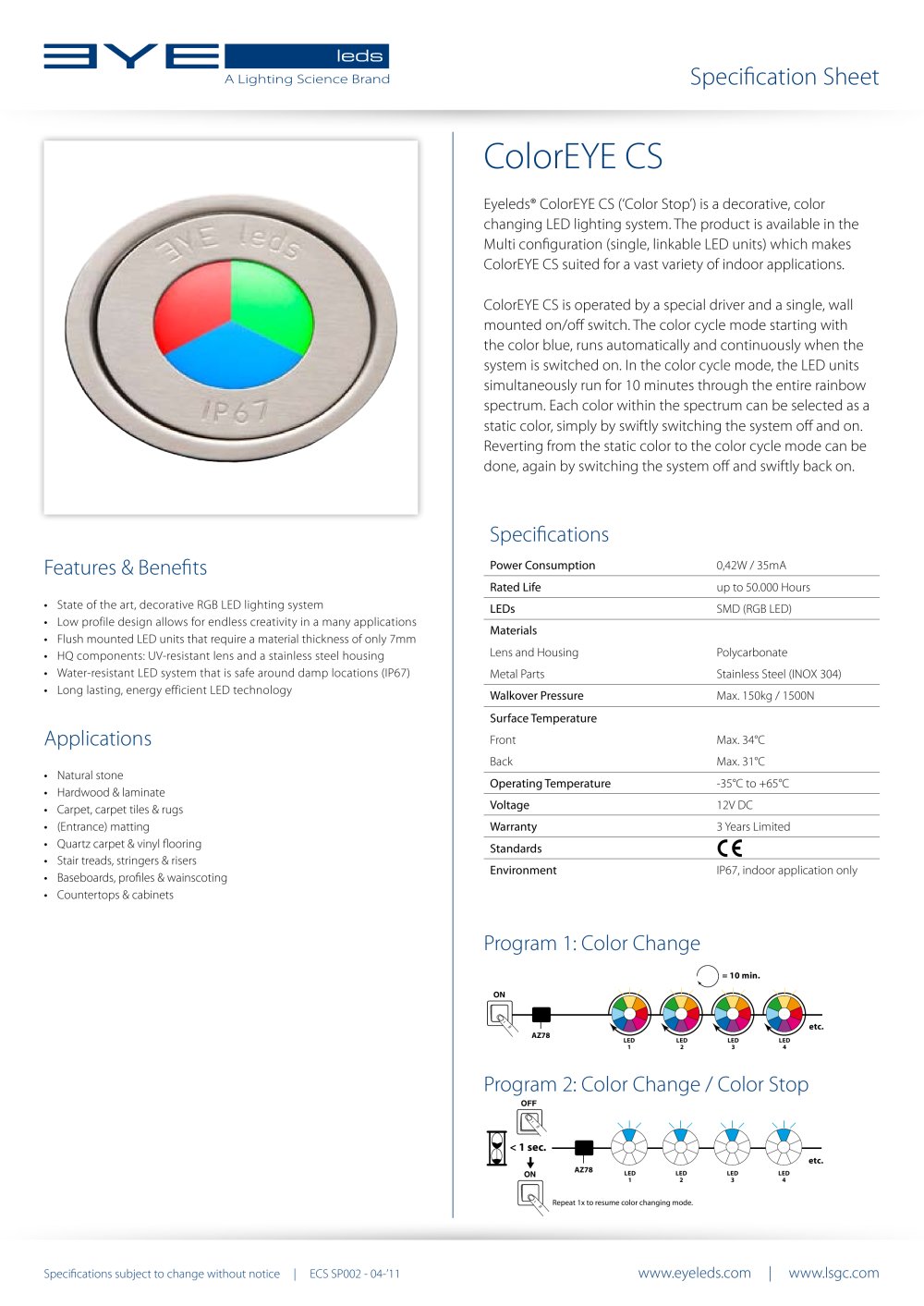

leds A Lighting Science Brand Spcification Sheet ColorEYE CS Eyeleds® ColorEYE CS ('Color Stop') is a decorative, color changing LED lighting system. The product is available in the Multi configuration (single, linkable LED units) which makes ColorEYE CS suited for a vast variety of indoor applications. ColorEYE CS is operated by a special driver and a single, wall mounted on/off switch. The color cycle mode starting with the color blue, runs automatically and continuously when the system is switched on. In the color cycle mode, the LED units simultaneously run for 10 minutes through the entire rainbow spectrum. Each color within the spectrum can be selected as a static color, simply by swiftly switching the system off and on. Reverting from the static color to the color cycle mode can be done, again by switching the system off and swiftly back on. Specifications Features & Benefits State of the art, decorative RGB LED lighting system 镕 Low profile design allows for endless creativity in a many applications Flush mounted LED units that require a material thickness of only 7mm Օ HQ components: UV-resistant lens and a stainless steel housing Water-resistant LED system that is safe around damp locations (IP67) Օ Long lasting, energy efficient LED technology Applications Natural stone Օ Hardwood & laminate Carpet, carpet tiles & rugs Օ (Entrance) matting Quartz carpet & vinyl flooring Օ Stair treads, stringers & risers Baseboards, profiles & wainscoting Օ Countertops & cabinets Power Consumption 0,42W / 35 mA Rated Life up to 50.000 Hours LEDs SMD (RGB LED) Materials Lens and Housing Polycarbonate Metal Parts Stainless Steel (INOX 304) Walkover Pressure Max. 150kg / 1500N Surface Temperature Front Max. 34°C Back Max. 31°C Operating Temperature -35°C to +65°C Voltage 12V DC Warranty 3 Years Limited Standards Environment IP67, indoor application only Program 1: Color Change o- LED 1 LED 2 LED 3 LED 4 Program 2: Color Change / Color Stop Specifications subject to change without notice | ECS SP002 - 04-'11 www.eyeleds.com | www.lsgc.com

ColorEYE CS Spcification Sheet Dimensions - Multi Configuration 6,5 mm Top View 40 mm 0 Fixture - Side View 80 cm 6,5 mm 80 cm J_11,522 11,5 l J l_ 37 _J l Tm^m^m^ "1 H mm H H Fixture in Mounting Ring Mounting Ring Mounting Ring - Side View ide View 37 mm Fixture Installation Diagram A-045mm -M <-0 40mm -► Flooring Thickness Example Connection Diagram 12V 230-240V A Ordering Informatior Product Description Finish / LED Colour Item Code ColorEYE CS Single Linkable LED Unit (Multi) Stainless Steel / RGB LED 680.320.0U.22209 Accessory # Item Code Built-In Power Supply CS 12V DC / 10W (A)...
