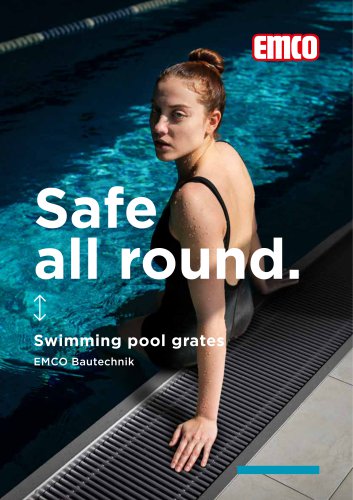

Safe all round. Swimming pool grates EMCO Bautechnik

EMCO Bautechnik GmbH has been developing and manufacturing customisable entrance mat systems and clean-off mats that meet high quality and safety standards for over 65 years. The product portfolio also includes high-quality gratings for swimming pools and sanitary facilities.

Swimming pools at their very best. For more than 55 years – EMCO swimming pool grates. In swimming pool construction, the raised water level combined with an overflow channel has become the standard. It offers undisputed advantages in terms of user comfort and hygiene. A wide range of requirements are placed on the cover for the overflow channel: → It must accommodate the overflowing water and ensure absolute safety and hygiene. → It must be comfortable to walk on and, thanks to its design, blend harmoniously into the overall layout. By selecting high-quality plastics as profile materials, EMCO...

Your planning & implementation won’t go down the drain. We’re here to help at every stage of the process. In sensitive areas such as swimming pools, it is the details that determine optimal functionality. Professional planning from the outset and high-quality components ensure long-term safety, a high level of comfort and an attractive ambience. During the installation phase, we can support you across Europe, if required, through our trained EMCO service staff. They take all production-related measurements on site and also carry out any on-site installation and adjustment work to ensure the best...

→ Technical support from design through to installation → Europe-wide services provided by trained staff → Original colour and fabric samples • On-site measurements • Installation and fitting work → Tender documents online → Cleaning and care instructions → Preparation of installation plans with detailed item numbers* *For all grilles except model 760 Technical installation plan with item numbers

Swimming pool grates Crosswise. Roll-up. Flexible. Topseller. 10-11 Parallel. Rigid. Clean lines. 12-13 Wide. Rigid. Great value for money. 14-15 Can be fitted with tiles. Award-winning. Stylish. 16-19 Information and warning signs 20 Mounting frames and angle profiles 22 Floor grates Fixed design. Accessible. 23 Hygiene mats Preventing accidents - can be retrofitted. 24-25 Client references: Germany, Austria, Switzerland 26 Cleaning, Maintenance, Service 28 Chemical and physical resistance 29 Sales in Germany, Austria and Switzerland 30

Safety is the best foundation. Accident prevention for public and private swimming pool construction. Compliance with European standards for the construction of public and private swimming pools is of paramount importance, not only to prevent slips on wet surfaces but also to avoid fingers and toes being crushed. EMCO swimming pool grates are resistant to UV light, chlorine, seawater and therapeutic water.

Overview of the rating groups: The surface of EMCO swimming pool grates features a safety-profile embossing, which is regularly tested and certified by an accredited testing laboratory. We can demonstrate that our swimming pool grates meet the required slip resistance standards in accordance with Assessment Group C, thereby fulfilling the highest safety requirements. • Barefoot walkways (largely dry) • Pool floors in non-swimmer pools (water depths 0.80-1.35 m) GapsDIN EN 16582-1, DIN EN 13451-1 Group B angle of inclination > 18° To prevent fingers and toes from getting caught or crushed, we...

723/720 Swimming pool grates models

• public and private swimming pools with an overflow channel • whirlpools with an overflow channel Security profile embossing • Use of durable and robust plastics • Easy to handle as it can be rolled up • Position numbers on the gratings • Special shapes such as radii, cut-outs and various types of corner designs can be incorporated into the grating 1 Installed perpendicular to the pool edge. Grating height Grating width 100 mm to 500 mm (greater widths are possible with the aid of on-site supports) Standard colours m-i vw m\ White Grey Beige Yellow similar RAL 9010 similar RAL 7001 similar RAL...

724/721 Swimming pool grates models © L’ Aquapolis, Limoges, France

• public and private swimming pools with an overflow channel • whirlpools with an overflow channel • Use of durable and robust plastics • excellent water drainage • Position numbers on the gratings • can also be used in curved sections, subject to technical approval parallel to the pool edge Grating height Grating width 100 mm to 340 mm (greater widths are possible with the aid of on-site supports) Standard colours Technical Specifications rounded top edge for optimal water drainage * Also applies to Model 721 | Corner solutions and special shapes: see p. 21 This model is not approved for use...

760/760E Swimming pool grates models

Wide. Rigid. Great value for money. Ideal for straight grating runs. Areas of application · public and private swimming pools with overflow channels Security profile embossing Classification level C Safety tested. Features · Easy to use · Good value for money · Versatile applications running at right angles to the pool edge Bar spacing < 8 mm in accordance with the European standard Standard colours (Special colours from the RAL Classic colour chart are available on request) Sample sketch Model 760 E Technical Specifications Model Grating length Grating width (mm) Non-standard widths (cut to...

Swimming pool grates model

Stylish design solutions for hotel and private pools. The substrate is suitable for tiling. Plastic cassette for applying adhesive to tiles or natural stone on site • Bespoke plastic cassette • Can withstand normal foot traffic • Compatible with most flood channels • Also suitable for retrofitting • Adhesive instructions and lifting hooks included running at right angles to the pool edge Segment length Grating width The cut-outs in the plastic cassette define the bonding points for the tiles/natural stone, whilst ensuring that the maximum permissible joint widths are observed. General note: Technical...
