Elica
ELICA COLLECTION

ELICA COLLECTION

Product catalog summary

Introduction and Brand Philosophy

Elica is a globally recognized brand specializing in innovative, efficient, and stylish kitchen ventilation systems. Their products serve both functional and aesthetic purposes, emphasizing cutting-edge design, improved air quality, and quiet operation.

Product Collections and Design Concepts

The Elica Collection showcases a range of uniquely designed models inspired by artistic and natural themes. Key designs include:

OLA: Inspired by the Möbius strip, symbolizing infinity.
PLATINUM: Features reflective metal surfaces.

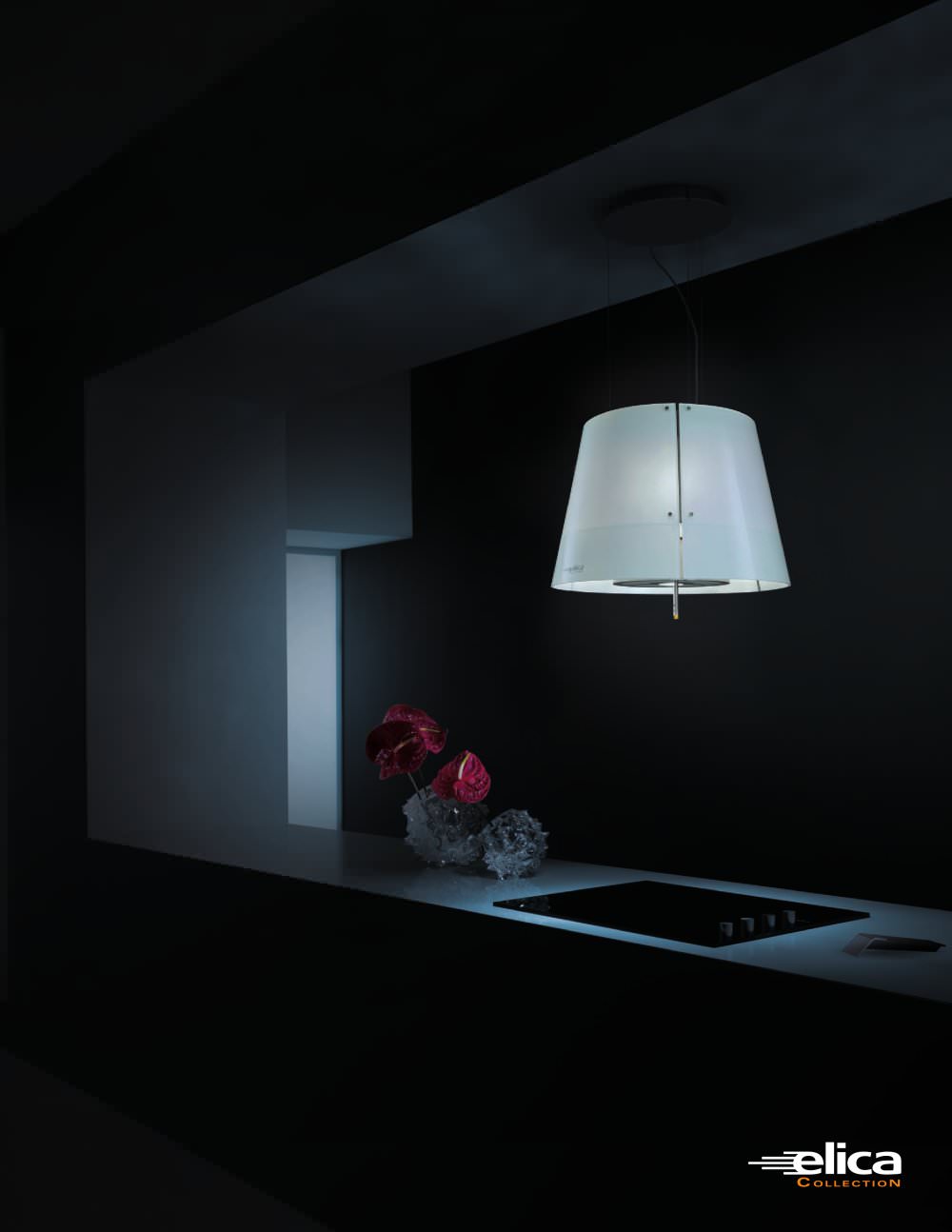

GRACE: Combines form with illumination and airflow.
SPACE: Represents time and infinity through circular design.
STAR: Evokes shifting perceptions and identities.
WAVE: Draws from nature and Finnish design principles.
TWIN: Symbolizes symmetry and balance.
OM and MINI OM: Customizable architectural elements.
MENHIR: Combines technology with archetypal forms.
SAMURAI: Emphasizes precision and discipline.
ATLANTIS: Represents a gateway across time and space.
BOGART, OPTICA, GLIDE: Focus on light, geometry, and futuristic aesthetics.

Technological Innovations and Features

EDS3 (Elica Deep Silence): Acoustic foam and Pro Filter reduce noise by 35% for quiet operation.
Evolution Plus System: Compact integration of ventilation, lighting, controls, and filters in a sleek steel cylinder.
PURE Function: Post-cooking air purification cycle to eliminate airborne contaminants.
Passive Silencer: Sound-absorbing insulation to further reduce noise.
Blower Options: Internal 600 CFM blower for standard use; 1100 CFM Whisper In-Line blower for professional-grade ventilation with low noise.
Perimeter Ventilation: Aerodynamic air intake design enhancing suction efficiency and noise reduction.
Ducted vs Recirculating Systems: Most models support ducted ventilation for optimal performance but can operate as recirculating systems with charcoal filters when ducting is not possible.

Testing and Certifications

All products in the Elica Collection hold UL and CUL certifications and comply with stringent internal performance standards, ensuring safety, quality, and reliability.

Control Systems and Accessories

Brass and Black Remote Controls: Stylish and ergonomic remotes for ventilation and lighting control.
Elica Control Ball (Patented): Spherical integrated control for blower speed and lighting adjustments.
Digital "R" Controls: Blue-lit buttons with automatic switch-off.
Light Soft Controls: Softly illuminated buttons for ease of use.
Booster Speed with Timer: Provides maximum ventilation power for rapid smoke or odor removal.
Touch Screen Controls: Nearly invisible when idle, activated by touch for blower and lighting control.
Magic Wand Controls: Innovative stem control for intuitive operation.

Product Specifications and Models

The document details multiple models with varying sizes, finishes, blower capacities, noise levels, control types, lighting, filters, installation options, and accessories. Highlights include:

Bogart: 42" wall-mounted, stainless steel & glass, 600 CFM internal blower, 1100 CFM in-line blower, control ball, passive silencer, ducted or recirculating.
Atlantis: 36" wall-mounted, stainless steel & glass, light soft push button controls.
Grace: 20" island/wall mounted, stainless steel & colored glass, 300 CFM internal blower, magic wand controls, recirculating only.
Glide: 30-36" undercabinet, stainless steel & glass, 450 CFM internal blower, electronic touch controls, ducted or recirculating.
Mini Om: 22" wall-mounted, colored glass, 450 CFM internal blower, passive silencer, perimeter ventilation.
Menhir: 22" island hood, stainless steel, 600 CFM internal blower, control ball, passive silencer.
Ola: 20-32" wall-mounted, stainless steel & colored glass, 350-450 CFM internal blower, touch or push button controls, recirculating only.

Additional Model Details

Mini Om: 36" wall-mounted, 600 CFM internal blower, 1100 CFM in-line blower, noise 1.5-9 sones, halogen lighting, stainless steel mesh filters.
Optica: 20" island/wall-mounted, 350 CFM internal blower, noise 0.3-3.8 sones, halogen lighting, anodized aluminum mesh filters, recirculating only.
Platinum: 31" wall-mounted, 600 CFM internal blower, digital controls with Pure Function, EDS3 filters, ducted or recirculating.
Space: 42" wall-mounted, 600 CFM internal blower, control ball, halogen lighting, ducted or recirculating.
Samurai: 36" island-mounted, 550 CFM internal blower, Magic Wand control, halogen and incandescent lighting, recirculating only.
Twin: 19" island-mounted, 300 CFM internal blower, Magic Wand control, halogen and incandescent lighting, recirculating only.
Wave: 42" island hood, 600 CFM internal blower, 1100 CFM in-line blower, halogen lighting, ducted or recirculating.
Twin Optica: 20" island/wall-mounted, 350 CFM internal blower, halogen and lamp lighting, recirculating only.

Controls and Features Summary

Control types include soft push buttons, digital controls with Pure Function, control ball, and Magic Wand remotes.
Speed settings typically include 3 speeds plus booster options.
Lighting primarily halogen (20W-50W), some models include incandescent lamps and dimmers.
Filters include stainless steel mesh, anodized aluminum mesh, and EDS3 noise-reducing technology.
Installation options vary between ducted, recirculating, or both depending on model.

Accessories

Recirculating kits tailored to specific models.
Chimney extension kits in short and long versions.
Blower kits for internal and in-line blowers with different CFM ratings.
Remote controls available in brass or black finishes.
Wall-mounted brackets for select island/wall models.

Filters

Long-life filters are available for all models, designed for durability and compatibility. Specific filter kits correspond to each model.

Additional Information

Product design coordinated by Elica Team with Fabrizio Crisà.
Specifications may change due to continuous product improvements.
Catalog reproduction is legally protected; color tones may vary due to printing.
Contact details for Elica offices in Italy and USA are provided for support and showroom visits.

Critical Summary

Elica combines artistic design with advanced ventilation technology.
Multiple blower and control options accommodate diverse user needs.
Quiet operation is ensured through EDS3 technology and passive silencers.
Flexible installation supports both ducted and recirculating systems.
All products meet rigorous safety and performance certifications.
The range hoods serve as both functional appliances and design centerpieces in modern kitchens.

Catalog excerpts

Innovative Design, Efficient Performance and Quality Built. All over the world the name Elica is synonymous with efficiency, innovation and design in the production of ventilation systems for the home. Beautiful, distinctive and stylish design are the unifying elements and core philosophy of our range of ventilation systems. Universally acclaimed for their radically innovative appearance, our products are far more than simple range hoods for domestic kitchens: they are key personalities that define the room in which they are installed. Elica not only designs the hoods, we design the air itself....

Open the catalog to page 3

4 OLA Elica Team design As in a mobius strip, the on-lookers gaze is transfixed by the mystery of the infinite, which has no beginning and no end. Thought is suspended, the eye deceived, as it seeks in vain for something familiar – color, material, function…and finds nothing, except wonder.

Open the catalog to page 6

6 PLATINUM Elica Team design

Open the catalog to page 8

7 As light shines, gleaming metal sparkles into life and the world around is mirrored in its surface. Colors and images amplify and change, performing a fascinating dance that transforms a simple object into a brilliant kaleidoscope.

Open the catalog to page 9

10 GRACE Elica Team design

Open the catalog to page 12

11 An everyday, intimate form that hides the true identity of the object that it is: bright enough to illuminate the words of a book, but intimately linked to the vital breath of the air.

Open the catalog to page 13

14 SPACE Elica Team design

Open the catalog to page 16

15 The circle: symbol of the absolute and the alchemist. A movement that leaves and returns to the origin of everything, depicting, in reality, the shape of time itself. Space enters our everyday architecture and brings a fragment of the infinite into the world of the useful and necessary.

Open the catalog to page 17

18 STAR Elica Team design

Open the catalog to page 20

19 “…I saw a small and shifting sphere, its radiance almost sublime. At first I thought it was rolling; but then I realized that this movement was an illusion produced by the dizzying sights that it enclosed” Borges: The Aleph. Fragments of dreams – or reality? – that are found in the everyday world, remind us that order and the evident do not always mean certainty, because objects can assume an infinity of new identities. Or even, simultaneously, contain them.

Open the catalog to page 21

22 Wave in the Finnish language is Aalto: recalling nature and the far north, with its unmistakable world of beautiful and useful objects, and recalling, as well, one of that world’s foremost interpreters. Wave is not only about function: it is light in movement, air that assumes color, a gift that brings with it the magic poetry of the shadows. WAVE Elica Team design

Open the catalog to page 24

26 TWIN Elica Team design

Open the catalog to page 28

27 From the idea of the double, of symmetry, of the mirror that reflects an identical image, its form is the essence of balance and proportion. The mystery of the twin, as if in one of Leonardo’s games of reversal, repeats itself.

Open the catalog to page 29

30 OM, MINI OM Elica Team design

Open the catalog to page 32

31 From large to small, from one to many: a new version of Om that allows everyday reality to gather the fragments of a single original thought – fragments of color and pure form - and design the space and the architecture of your own private world.

Open the catalog to page 33

36 MENHIR David Lewis design

Open the catalog to page 38

37 Technology as magic, form as archetype: an echo of the ancestral divine – higher intelligence – defined in evocative imagery. Menhir. Yet, more than that, a daring exercise in design, where technology permits the creation of forms that embody the essence of the absent.

Open the catalog to page 39

38 SAMURAI Elica Team design Formal discipline. Gestural precision. Every detail, reflection and action forms part of a ritual that scans and defines the setting in which life is played out. Ordinary and extraordinary life. So that everyday objects animate the theatre of existence.

Open the catalog to page 40

40 ATLANTIS Elica Team design

Open the catalog to page 42

41 Like an imaginary gateway, Atlantis connects us to a time that is not human time. And to n-dimensional spaces. Atlantis is the ‘passageway’ that unites the future with the present. And the present with the future. All with the semblance of a simple, everyday object...

Open the catalog to page 43

42 The light slides lingeringly over pure, geometrical shapes. Not orthogonal. Referencing cinematographic memories by analogy. And so the tilted, crystal-clear surface appears as the detail of a singular ‘accessory’. Worn by the actor technology. BOGART Elica Team design

Open the catalog to page 44

44 OPTICA Elica Team design

Open the catalog to page 46

45 Icy perfection. Pure, orthogonal, Euclidean lines. Like the law of physics that governs light as it moves through the ‘vacuum’... light is like air: invisible. But real and present in filling the living space.

Open the catalog to page 47

46 An island that emits light and ‘inspires’ air. The intangible takes on physical features and enters into a relationship with the surrounding space. Providing the essential function of protecting our everyday actions. And our breathing. TWIN OPTICA Elica Team design

Open the catalog to page 48

48 GLIDE Elica Team design

Open the catalog to page 50

49 A jewel of technology with a dynamic profile, resembling a futuristic work of art, a tribute to Marinetti and his Manifesto. Sleek design, chrome-plated details, reliability, power. An object in which freedom has the impalpable outline of the air.

Open the catalog to page 51

52 ELICA DEEP SILENCE - EDS3 Lose yourself in the music you love. Listen to the happy bubbling chatter of your kids telling you about their day or simply luxuriate in the subtle vibrations of the world. Exceptionally silent, almost imperceptible at low speeds, EDS3 is Elica’s latest innovation to enrich your life, providing maximum noise reduction. EDS3 uses acoustic foam panels to absorb sound and a unique cup shaped “Pro Filter”to calm air turbulence, resulting in a 35% reduction in noise compared to traditional range hoods. Included on Space. EVOLUTION PLUS SYSTEM The unique super-compact...

Open the catalog to page 54

53 DUCTED vs RECIRCULATING Most Elica Collection kitchen ventilation products are designed as Ducted Systems, in which air from inside the kitchen is pulled through a grease filter and then vented through a duct, directly into the outside air. This is the most powerful and effective ventilation method. When installation of a ducted system is not possible or cost-effective, all Elica Collection models can also operate as a Recirculating System, in which air is pulled through a grease filter and then through a charcoal filter, which removes odors and purifies. The “cleansed” air is then recirculated...
