Product catalog summary

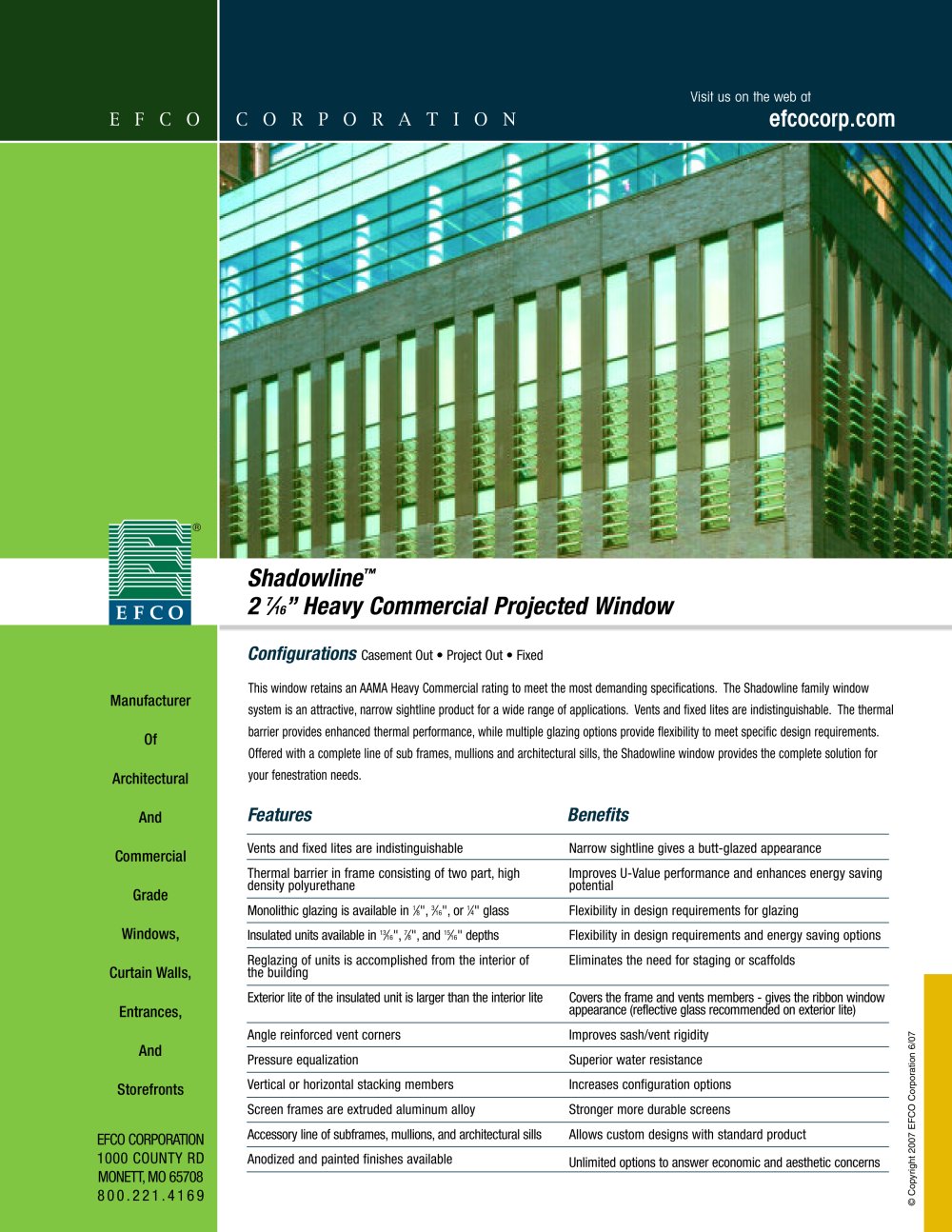

Overview: The document provides detailed specifications and features of the Shadowline™ 2 7⁄16” Heavy Commercial Projected Window by EFCO Corporation. It highlights the window's design, construction, and performance attributes, emphasizing its suitability for demanding commercial applications.

Specifications:

Frame Construction: Made from .125" nominal material wall thickness aluminum of 6063-T6 alloy with a depth of 2 7/16". Corners are screw spline constructed and sealed.
Vent Frame Construction: Consists of tubular aluminum members with .125" nominal material wall thickness of 6063-T6 alloy. Vent corners are mitered, angle reinforced, crimped, cold epoxy welded, and sealed.
Glazing Options: Monolithic glazing available in 1/8", 3/16", or 1/4" glass. Insulated units available in 13/16", 7/8", and 15/16" depths. Exterior lite of the insulated unit is larger than the interior lite.
Weather Stripping: Dual weather-stripped with a dual-durometer gasket, utilizing pressure equalization for superior water resistance.
Screens: Available in full width hinged wickets or fully hinged screens with various mesh options.
Thermal Barrier: Frames are thermally improved using high-density polyurethane.

Performance Data:

Air Infiltration: Less than .10 cfm/sf at 6.24 psf.
Water Resistance: No leakage at 12.0 psf.
Structural Performance: ±150.0 psf.
CRF (1503.1): 46J.
U-Value (1503.1): .70J.
AAMA Rating (A440-05): C-AW95.

Features and Benefits:

Indistinguishable vents and fixed lites for a seamless appearance.
Enhanced thermal performance and energy-saving potential.
Flexibility in design requirements and glazing options.
Eliminates the need for staging or scaffolds during installation.
Superior water resistance and increased configuration options.
Durable screens and custom design capabilities with standard products.

Conclusion: The Shadowline™ window system by EFCO Corporation is designed to meet the most demanding commercial specifications, offering a combination of aesthetic appeal, energy efficiency, and robust performance. It is suitable for a wide range of architectural and commercial applications.
