Triad II
Triad II
The Triad II spa is a rectangular unit with a seating capacity for three individuals. It is constructed from Ultralife™, Granitex™, or Geloy® materials. The dimensions are 83½" x 66½" x 30½" (212cm x 169cm x 77cm), with corner radii of 16" (41 cm). It holds 200 gallons (757 liters) of water, weighs 640 lbs (291 kg) when dry, and 2310 lbs (1048 kg) when full. The skirt material varies between domestic synthetic and export wood or synthetic. It includes a poly floor and an Ultra Pure™ water treatment system.
Plumbing and Jets:
The spa features one plumbing system, two filters covering 75 sq. ft., and various VCR jets including air adjustable/directional, rotator, mini rotator, and mini directional jets. It also includes an ozone jet and a heater return jet.
Features:
The spa is equipped with a dynamic massage sequencer with a control panel, NeckFlex® jet pillows, headrest pillows, and optional advanced stereo system. It has tactile therapy for foot and hand, and two cup holders.
Pump and Electrical Information:
The domestic model operates at 240 volts with a 40/30 amperage, while the export model operates at 240 volts with options for 1X16, 2X16, or 1X32 amperage. The heater options include FastFlo 2.7, 4.0, 5.5 kW for domestic and FastFlo 2.9 kW for export. Both models feature an electronic thermostat and a control system with a scrolling message center.
Installation and Caution:
Engineering specifications may vary slightly from the brochure. For E-Z lifter installation, an 18” (45.7cm) clearance is required at the back. Alternative cabinets may add weight, and exact details should be confirmed with the dealer. When drilling for power line installation, care must be taken to avoid plumbing lines. Due to manufacturing tolerances, actual spa dimensions may vary slightly from the drawings.
Catalog excerpts

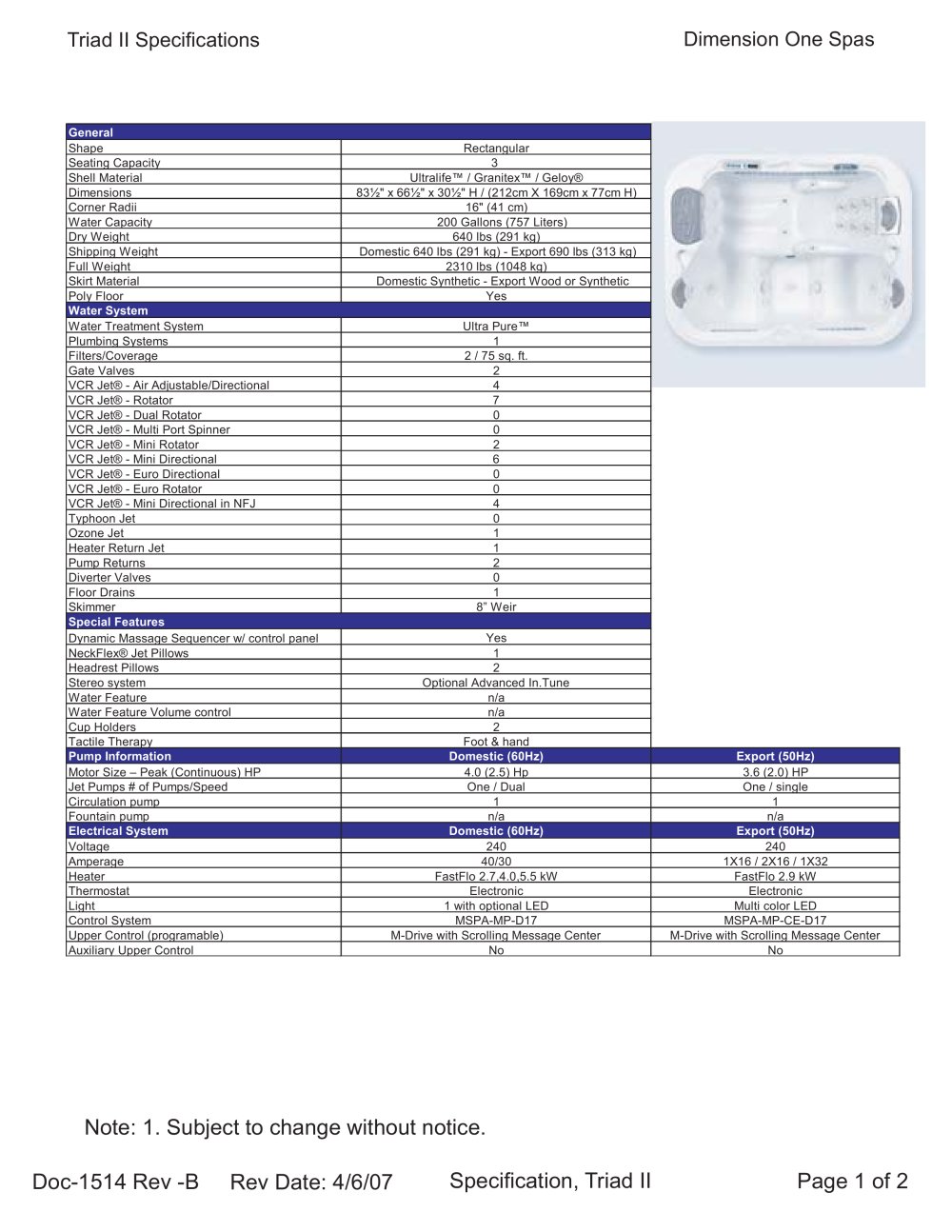

General Water System Special Features Sha p eRectan g ularSeatin g Ca p acit y 3Shell MaterialUltralife / Granitexٙ / Gelo y Dimensions83ν" x 66" x 30ݽ" H / ( 212cm X 169cm x 77cm H ) Corner Radii16" ( 41 cm ) Water Ca p acit y 200 Gallons ( 757 Liters ) Dr y Wei g ht640 lbs ( 291 k g) Shi pp in g Wei g htDomestic 640 lbs ( 291 k g) - Ex p ort 690 lbs ( 313 k g) Full Wei g ht2310 lbs ( 1048 k g) Skirt MaterialDomestic S y nthetic - Ex p ort Wood or S y ntheticPol y FloorYesWater Treatment S y stemUltra PurePlumbin g S y stems1Filters/Covera g e2 / 75 s q . ft.Gate Valves2 VCR Jetٮ - Air Ad j ustable/Directional4VCR Jet - Rotator7VCR Jetή - Dual Rotator0VCR Jet - Multi Port S p inner0VCR Jetή - Mini Rotator2VCR Jet - Mini Directional6 VCR Jetή - Euro Directional0 VCR Jet - Euro Rotator0 VCR Jetή - Mini Directional in NFJ4 T yp hoon Jet0Ozone Jet1Heater Return Jet1 Pum p Returns2Diverter Valves0Floor Drains1Skimmer8 WeirD y namic Massa g e Se q uencer w/ control p anelYesNeckFlexԮ Jet Pillows1Headrest Pillows2 Stereo s y stemO p tional Advanced In.TuneWater Featuren/a Water Feature Volume controln/a Cu p Holders2Tactile Thera py Foot & hand Pump Information Domestic ( 60Hz ) Export ( 50Hz ) Motor Size Peak ( Continuous ) HP4.0 ( 2.5 ) H p 3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedOne / DualOne / sin g leCirculation p um p 11Fountain p um p n/an/a Electrical S y stem Domestic ( 60Hz ) Export ( 50Hz ) Volta g e240240Am p era g e40/301X16 / 2X16 / 1X32HeaterFastFlo 2.7 , 4.0 , 5.5 kWFastFlo 2.9 kWThermostatElectronicElectronicLi g ht1 with o p tional LEDMulti color LEDControl S y stemMSPA-MP-D17MSPA-MP-CE-D17U pp er Control (p ro g ramable ) M-Drive with Scrollin g Messa g e CenterM-Drive with Scrollin g Messa g e CenterAuxiliar y U pp er ControlNoNo >
Open the catalog to page 1
stereo speaker location(optional) R16 in [R41 cm] > Optional stereoSub-woofer location 66 1/2 in [169 cm]ShellSee Caution Sequencer valve compartment > ON BOTTOM OF SPA, TO BETHIS 3 FOOT SQUARE AREA, 66 in [168 cm]Skirt > SUPPORTED CONSISTENT WITH THE EDGES OF SPA BASE. 63 1/2 in [162 cm]PedestalBase 26 in [67 cm]Recommended location forElectricalInlet Equipment Compartment 10 in [27 cm]Hose Bib/Water Drain Vent Vent 25 1/2 in [64 cm] Vent Control PanelFront Side of Spa 36 1/2 in [92 cm] 47 in [119 cm] 58 in [147 cm] 83 1/2 in [212 cm] > stereo speaker location(optional) Control Panel Spa LipPedestal...
