Sojourn
Sojourn
The Sojourn spa by Dimension One Spas is a square-shaped model with a seating capacity for 7 individuals. It is constructed from Granitex™/Acrylic material and measures 84" x 84" x 36" (213cm x 213cm x 91cm). The spa has a water capacity of 340 gallons (1059 liters) and a dry weight of 735 lbs (333 kg), with a full weight of 3067 lbs (1391 kg). The skirt is made from synthetic material, and it features a poly floor.
Water and Plumbing Systems:
The spa is equipped with a ClearZone® Ready water treatment system and has three plumbing systems. It includes one filter with a coverage of 75 sq. ft. and various VCR Jets, including 2 Rotators, 3 Dual Rotators, 4 Mini Rotators, 11 Mini Directionals, and 20 Euro Directionals. There is also one Ozone Jet and four pump returns.
Electrical System:
The spa operates on a 240V electrical system with a 4.0 KW heater for domestic use and a 2.0 KW heater for export. It features an electronic thermostat and a programmable digital control system.
Special Features:
The spa includes optional features such as a stereo system and LED lighting. It has a water feature with volume control and 7 cup holders. The spa also includes NeckFlex® Jet Pillows and headrest pillows.
Installation and Engineering Notes:
For E-Z lifter installation, an 18” (45.7cm) clearance is required on the backside of the spa. Alternative cabinets may add significant weight, and it is advised to consult with a dealer for exact details. The document notes that engineering specifications may slightly differ from the brochure and emphasizes the importance of measuring the actual spa for site planning due to potential manufacturing tolerances.
Catalog excerpts

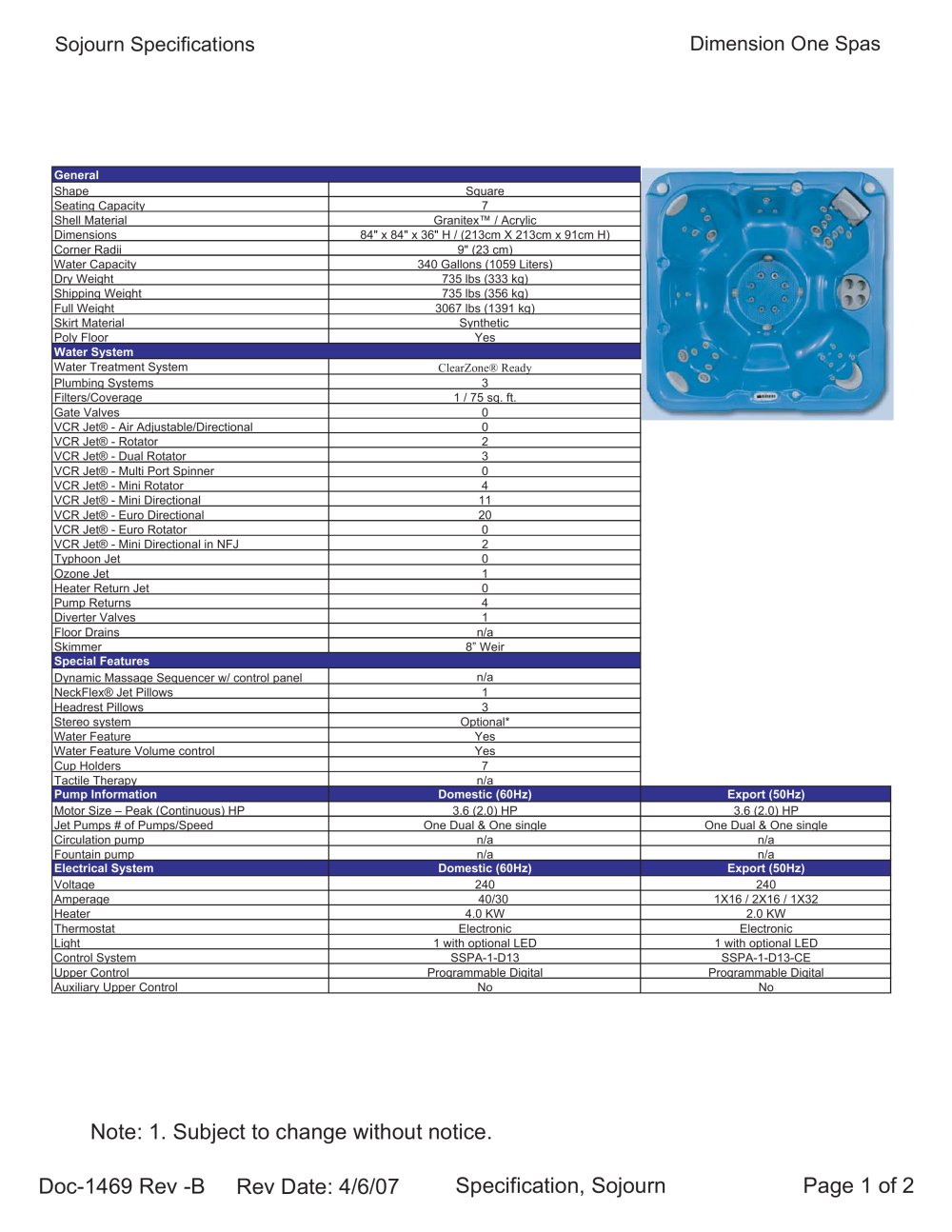

General Water System Special Features Sha p eS q uareSeatin g Ca p acit y 7Shell MaterialGranitex / Acr y licDimensions84" x 84" x 36" H / ( 213cm X 213cm x 91cm H ) Corner Radii9" ( 23 cm ) Water Ca p acit y 340 Gallons ( 1059 Liters ) Dr y Wei g ht735 lbs ( 333 k g) Shi pp in g Wei g ht735 lbs ( 356 k g) Full Wei g ht3067 lbs ( 1391 k g) Skirt Material S y ntheticPol y FloorYesWater Treatment S y stem ClearZoneٮ Read y Plumbin g S y stems3Filters/Covera g e1 / 75 s q . ft.Gate Valves0VCR Jet - Air Ad j ustable/Directional0VCR Jetή - Rotator2VCR Jet - Dual Rotator3VCR Jetή - Multi Port S p inner0VCR Jet - Mini Rotator4VCR Jetή - Mini Directional11VCR Jet - Euro Directional20 VCR Jetή - Euro Rotator0VCR Jet - Mini Directional in NFJ2T yp hoon Jet0Ozone Jet1Heater Return Jet0Pum p Returns4Diverter Valves1Floor Drainsn/aSkimmer8Δ WeirD y namic Massa g e Se q uencer w/ control p aneln/aNeckFlex Jet Pillows1Headrest Pillows3Stereo s y stemO p tional*Water FeatureYesWater Feature Volume controlYesCu p Holders7Tactile Thera py n/a Pump Information Domestic (60Hz)Export (50Hz) Motor Size Ζ Peak ( Continuous ) HP3.6 ( 2.0 ) HP3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedOne Dual & One sin g leOne Dual & One sin g leCirculation p um p n/an/aFountain p um p n/an/a Electrical System Domestic (60Hz)Export (50Hz) Volta g e240240Am p era g e40/301X16 / 2X16 / 1X32Heater4.0 KW2.0 KWThermostatElectronicElectronic Li g ht1 with o p tional LED1 with o p tional LEDControl S y stemSSPA-1-D13SSPA-1-D13-CEU pp er ControlPro g rammable Di g italPro g rammable Di g italAuxiliar y U pp er ControlNoNo >
Open the catalog to page 1
R10 in [R24 cm]Spa Shell R9 in [R23 cm]Skirt Corner > SUBWOOFER(optional) 10 in [24 cm] 10 in [24 cm] > 83 in [211 cm]ShellSee Caution > THE EDGES OF SPA BASE.SUPPORTED CONSISTENT WITHON BOTTOM OF SPA, TO BETHIS 3 FOOT SQUARE AREA, 82 1/2"Skirt 81 in [205 cm]PedestalBase 21 in [53 cm]ElectricalInlet 6 in [16 cm]Hose Bib/Water Drain > 83 in [211 cm] > Control Panel Spa Lip Pedestal Base Front View of Spa 36 in [91 cm] 32 in [82 cm] 3 1/2in [9 cm] > Door ExtendsUnder Spa Lip 81 in [205 cm] 83 in [210 cm] >
