Seville

Product catalog summary
Specifications:
The Seville spa is rectangular with a seating capacity for 5 people. It is constructed from Ultralife™, Granitex™, or Geloy® materials. The dimensions are 84" x 78" x 30" (213cm x 198cm x 76cm), with corner radii of 16" (41 cm). It holds 260 gallons (985 liters) of water, weighs 670 lbs (304 kg) when dry, and 2840 lbs (1288 kg) when full. The skirt material varies between synthetic for domestic and wood or synthetic for export models. It includes a poly floor and an Ultra Pure™ water treatment system.

Plumbing and Jets:
The spa features 2 plumbing systems, 2 filters with 75 sq. ft. coverage, and various VCR jets including 2 rotators and 14 mini directionals. It also includes 1 ozone jet and 1 heater return jet.

Pumps and Electrical System:
The spa is equipped with one dual-speed jet pump for domestic models and a single-speed for export. It operates on a 240V electrical system with different amperage settings for domestic and export models. The heater options range from 2.7 to 5.5 kW for domestic and 2.9 kW for export.

Features:
Optional features include an advanced stereo system and multi-color LED lighting. The spa has 3 cup holders and tactile therapy foot pumps.

Architectural and Installation Notes:
Due to manufacturing tolerances, actual spa dimensions may vary slightly. For installation, allow 18” (45.72cm) clearance for the E-Z lifter. Alternative cabinet options may affect weight, and exact details should be confirmed with the dealer.
See more

Catalog excerpts

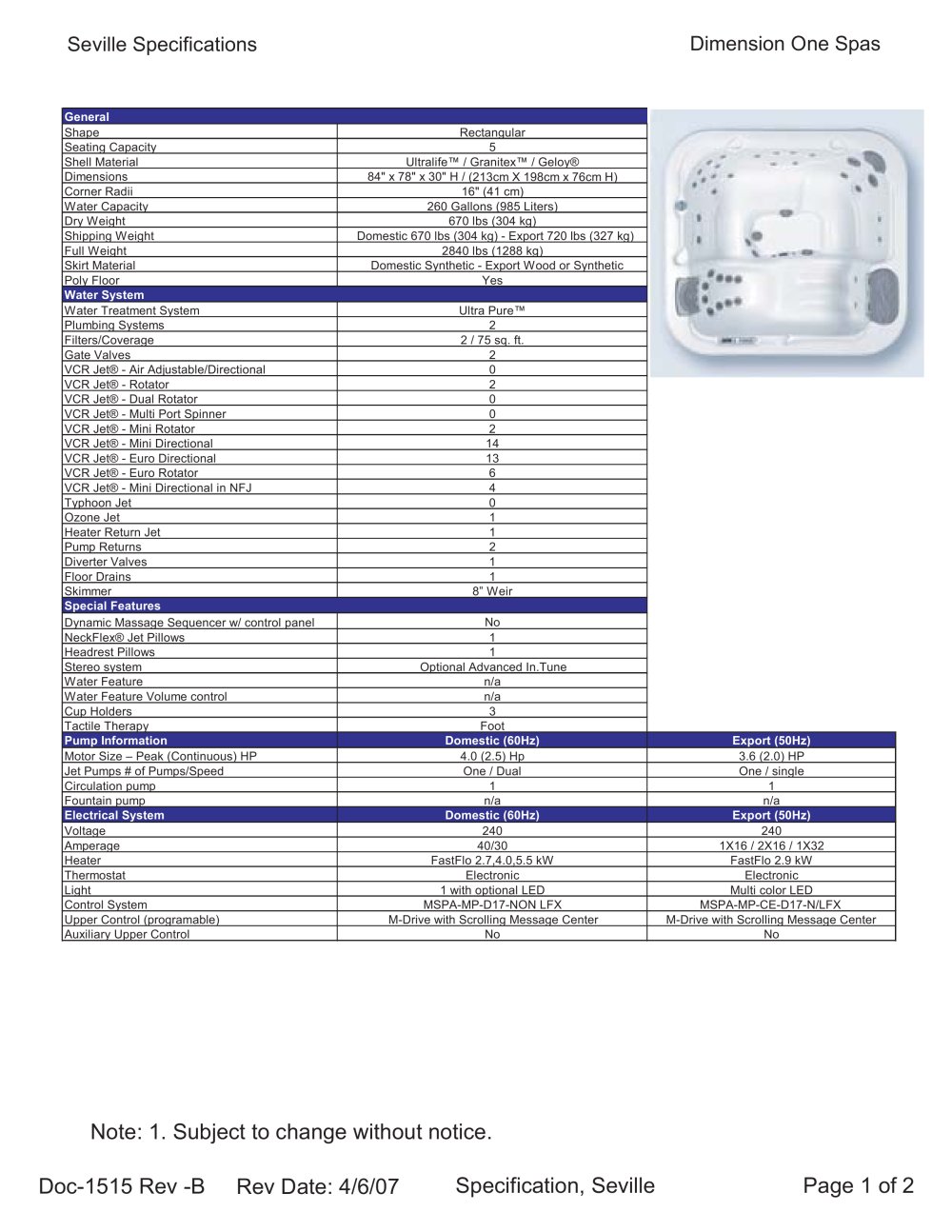

Seville-1

General Water System Special Features Sha p eRectan g ularSeatin g Ca p acit y 5Shell MaterialUltralife / Granitexٙ / Gelo y Dimensions84" x 78" x 30" H / ( 213cm X 198cm x 76cm H ) Corner Radii16" ( 41 cm ) Water Ca p acit y 260 Gallons ( 985 Liters ) Dr y Wei g ht670 lbs ( 304 k g) Shi pp in g Wei g htDomestic 670 lbs ( 304 k g) - Ex p ort 720 lbs ( 327 k g) Full Wei g ht2840 lbs ( 1288 k g) Skirt MaterialDomestic S y nthetic - Ex p ort Wood or S y ntheticPol y FloorYesWater Treatment S y stemUltra PureΙPlumbin g S y stems2Filters/Covera g e2 / 75 s q . ft.Gate Valves2VCR Jet - Air Ad j ustable/Directional0VCR Jetή - Rotator2 VCR Jet - Dual Rotator0 VCR Jetή - Multi Port S p inner0VCR Jet - Mini Rotator2 VCR Jetή - Mini Directional14VCR Jet - Euro Directional13VCR Jetή - Euro Rotator6 VCR Jet - Mini Directional in NFJ4 T yp hoon Jet0Ozone Jet1Heater Return Jet1Pum p Returns2Diverter Valves1Floor Drains1Skimmer8Δ WeirD y namic Massa g e Se q uencer w/ control p anelNoNeckFlex Jet Pillows1Headrest Pillows1 Stereo s y stemO p tional Advanced In.TuneWater Featuren/a Water Feature Volume controln/a Cu p Holders3Tactile Thera py Foot Pump Information Domestic ( 60Hz ) Export ( 50Hz ) Motor Size Ζ Peak ( Continuous ) HP4.0 ( 2.5 ) H p 3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedOne / DualOne / sin g leCirculation p um p 11Fountain p um p n/an/a Electrical S y stem Domestic ( 60Hz ) Export ( 50Hz ) Volta g e240240Am p era g e40/301X16 / 2X16 / 1X32HeaterFastFlo 2.7 , 4.0 , 5.5 kWFastFlo 2.9 kWThermostatElectronicElectronicLi g ht1 with o p tional LEDMulti color LEDControl S y stemMSPA-MP-D17-NON LFXMSPA-MP-CE-D17-N/LFXU pp er Control (p ro g ramable ) M-Drive with Scrollin g Messa g e CenterM-Drive with Scrollin g Messa g e CenterAuxiliar y U pp er ControlNoNo >

 Open the catalog to page 1
Seville-2

R16 in [R42cm] Shell > stereo speaker location(optional) Optional stereoSub-woofer location 78 in [198cm]ShellSee Caution 77 in [197cm]Skirt > THE EDGES OF SPA BASE.SUPPORTED CONSISTENT WITH ON BOTTOM OF SPA, TO BE THIS 3 FOOT SQUARE AREA, 75 in [191cm]PedestalBase > Equipment Compartment 21 in [54cm]Recommended location forElectricalInlet 11 in [28cm]Hose Bib/Water Drain > Vent Vent Vent 25 in [65cm] 37 in [93cm] 47 in [120cm] 58 in [148cm] 84 in [213cm] > stereo speaker location(optional) Control Panel Spa Lip Pedestal Base 30 in [76cm] > Hose Bib/Water Drain 27 in [67cm] > Door ExtendsUnder...

 Open the catalog to page 2
