Dream
Dream

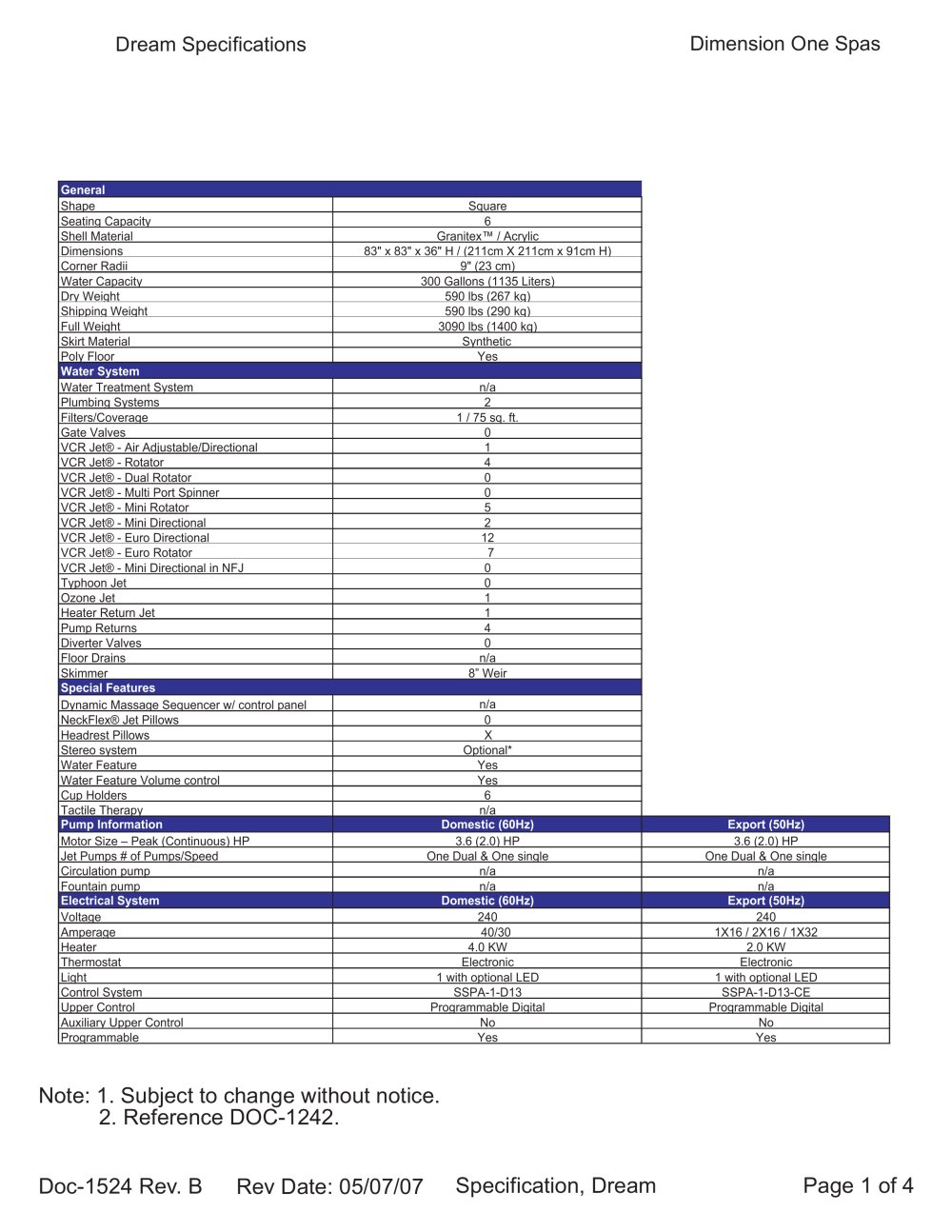

The DreamDoc-1524 Rev. B outlines the specifications for Dimension One Spas. The spa is square-shaped with a seating capacity of six. It is constructed from Granitex™/Acrylic material and measures 83" x 83" x 36" (211cm x 211cm x 91cm). The water capacity is 300 gallons (1135 liters), and the dry weight is 590 lbs (267 kg). The spa features a synthetic skirt material and a poly floor.
Water and Jet Systems:
The spa includes two plumbing systems and a variety of VCR Jets, including air adjustable/directional, rotator, mini rotator, and euro directional jets. It also features an ozone jet and a heater return jet. The skimmer has an 8” weir, and there is an optional stereo system.
Pump and Electrical Information:
The spa is equipped with one dual-speed and one single-speed jet pump. The electrical system operates at 240 volts with a 40/30 amperage for domestic use and 1X16/2X16/1X32 for export. The heater is rated at 4.0 KW for domestic and 2.0 KW for export.
General Notes:
The document notes that specifications are subject to change without notice and may differ slightly from the brochure. It advises allowing 18” (45.7 cm) clearance for E-Z lifter installation and notes that alternative cabinets may add significant weight.
Architectural Specification:
The document includes a caution regarding manufacturing tolerances that may result in minor differences between the actual spa and the drawings provided. It advises measuring the actual spa if site planning is critical.
Catalog excerpts
General Water System Special Features Sha p eS q uareSeatin g Ca p acit y 6Shell MaterialGranitex / Acr y licDimensions83" x 83" x 36" H / ( 211cm X 211cm x 91cm H ) Corner Radii9" ( 23 cm ) Water Ca p acit y 300 Gallons ( 1135 Liters ) Dr y Wei g ht590 lbs ( 267 k g) Shi pp in g Wei g ht590 lbs ( 290 k g) Full Wei g ht3090 lbs ( 1400 k g) Skirt Material S y ntheticPol y FloorYesWater Treatment S y stemn/aPlumbin g S y stems2Filters/Covera g e1 / 75 s q . ft.Gate Valves0VCR Jetٮ - Air Ad j ustable/Directional1VCR Jet - Rotator4VCR Jetή - Dual Rotator0 VCR Jet - Multi Port S p inner0VCR Jetή - Mini Rotator5VCR Jet - Mini Directional2VCR Jetή - Euro Directional12VCR Jet - Euro Rotator 7VCR Jetή - Mini Directional in NFJ0 T yp hoon Jet0Ozone Jet1Heater Return Jet1Pum p Returns4Diverter Valves0Floor Drainsn/aSkimmer8 WeirD y namic Massa g e Se q uencer w/ control p aneln/aNeckFlexԮ Jet Pillows0Headrest PillowsXStereo s y stemO p tional*Water FeatureYesWater Feature Volume controlYesCu p Holders6Tactile Thera py n/a Pump Information Domestic (60Hz)Export (50Hz) Motor Size Peak ( Continuous ) HP3.6 ( 2.0 ) HP3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedOne Dual & One sin g leOne Dual & One sin g leCirculation p um p n/an/aFountain p um p n/an/a Electrical System Domestic (60Hz)Export (50Hz) Volta g e240240Am p era g e40/301X16 / 2X16 / 1X32Heater4.0 KW2.0 KWThermostatElectronicElectronicLi g ht1 with o p tional LED1 with o p tional LEDControl S y stemSSPA-1-D13SSPA-1-D13-CEU pp er ControlPro g rammable Di g italPro g rammable Di g italAuxiliar y U pp er ControlNoNoPro g rammableYesYes >
Open the catalog to page 1
THE EDGES OF SPA BASE.SUPPORTED CONSISTENT WITHON BOTTOM OF SPA, TO BETHIS 3 FOOT SQUARE AREA, Control PanelFront of Spa > Control PanelFront of Spa Spa Lip Pedestal Base Front View of Spa >
Open the catalog to page 2All DIMENSION ONE SPAS catalogs and technical brochures
