The Diplomat spa is a square-shaped model with a seating capacity for 5 individuals. It is constructed from Ultralife™, Granitex™, or Geloy® materials. The dimensions are 91½" x 91½" x 35½" (232cm x 232cm x 90cm). It has a water capacity of 325 gallons (1230 liters) and a dry weight of 900 lbs (408 kg). The full weight when filled is 3610 lbs (1638 kg). The skirt material varies between domestic synthetic and export wood or synthetic options. The spa includes a poly floor and an Ultra Pure™ water treatment system.
Plumbing and Jets:
The spa features 4 plumbing systems, 2 filters with 75 sq. ft. coverage, and 4 gate valves. It includes various VCR jets, such as 8 air adjustable/directional, 12 rotators, and others, along with a Typhoon Jet, Ozone Jet, and Heater Return Jet. There are 4 pump returns, 2 diverter valves, and 1 floor drain.
Features:
The spa includes 2 NeckFlex® Jet Pillows, 1 headrest pillow, and optional features like an advanced stereo system and water feature with volume control. It also has 2 cup holders and tactile therapy for foot and hand.
Pump and Electrical Information:
The domestic model operates at 60Hz with a motor size of 4.0 (2.5) HP, while the export model operates at 50Hz with a motor size of 3.6 (2.0) HP. Both models have two jet pumps and one circulation pump. The electrical system supports 240 volts with varying amperage options.
Control System:
The spa is equipped with an MSPA-MP-D17-NON LFX control system, with an upper control that includes a programmable M-Drive with a scrolling message center.
Architectural Specifications:
The spa's top and front views are detailed with specific measurements for installation and equipment placement. It is important to note that engineering specifications may slightly differ from the brochure, and alternative cabinets may add weight. Caution is advised when drilling for power line installation to avoid plumbing lines.
Catalog excerpts

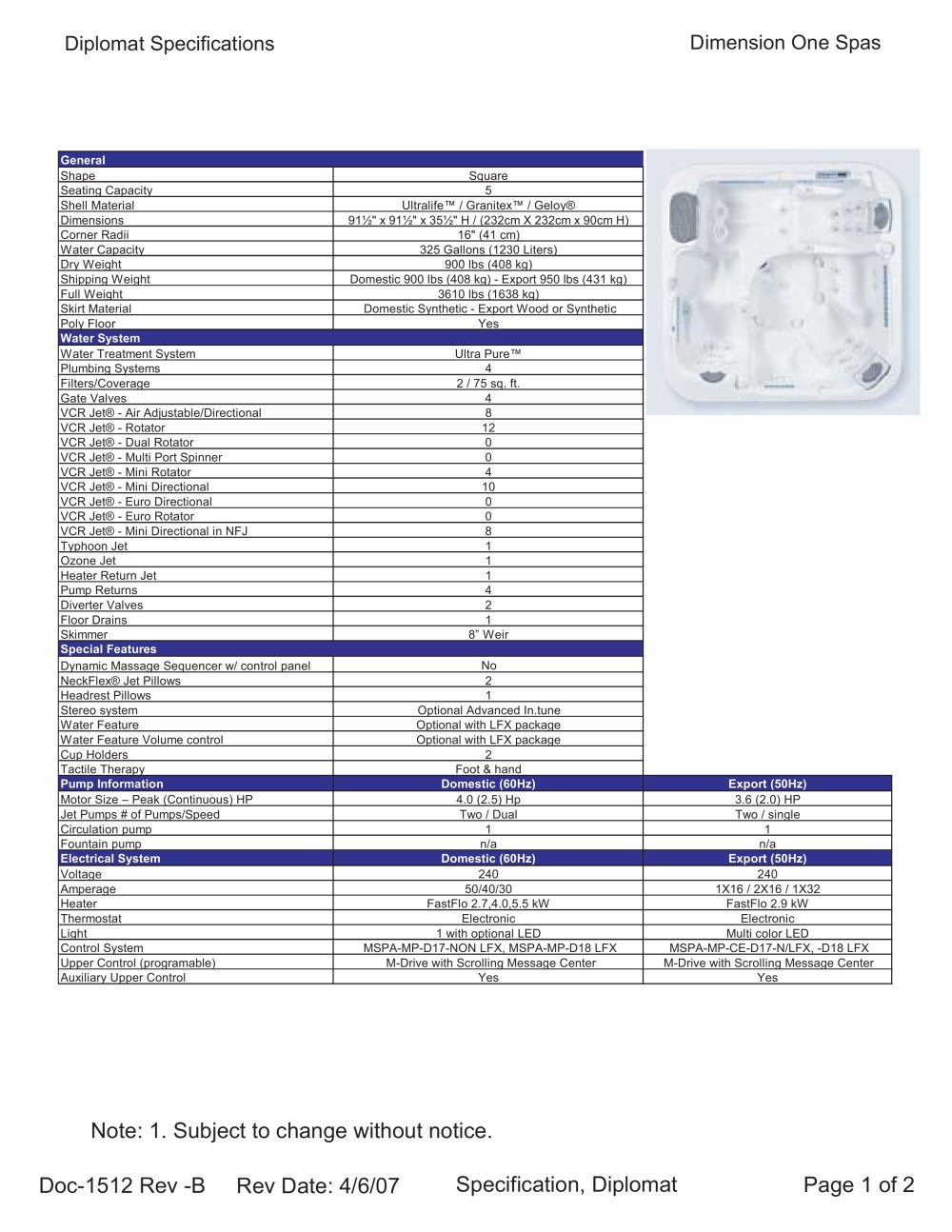

General Water System Special Features Sha p eS q uareSeatin g Ca p acit y 5Shell MaterialUltralife / Granitexٙ / Gelo y Dimensions91ν" x 91" x 35ݽ" H / ( 232cm X 232cm x 90cm H ) Corner Radii16" ( 41 cm ) Water Ca p acit y 325 Gallons ( 1230 Liters ) Dr y Wei g ht900 lbs ( 408 k g) Shi pp in g Wei g htDomestic 900 lbs ( 408 k g) - Ex p ort 950 lbs ( 431 k g) Full Wei g ht3610 lbs ( 1638 k g) Skirt MaterialDomestic S y nthetic - Ex p ort Wood or S y ntheticPol y FloorYesWater Treatment S y stemUltra PurePlumbin g S y stems4Filters/Covera g e2 / 75 s q . ft.Gate Valves4 VCR Jetٮ - Air Ad j ustable/Directional8VCR Jet - Rotator12 VCR Jetή - Dual Rotator0 VCR Jet - Multi Port S p inner0VCR Jetή - Mini Rotator4 VCR Jet - Mini Directional10 VCR Jetή - Euro Directional0 VCR Jet - Euro Rotator0 VCR Jetή - Mini Directional in NFJ8 T yp hoon Jet1Ozone Jet1 Heater Return Jet1 Pum p Returns4Diverter Valves2 Floor Drains1 Skimmer8 WeirD y namic Massa g e Se q uencer w/ control p anelNoNeckFlexԮ Jet Pillows2Headrest Pillows1Stereo s y stemO p tional Advanced In.tuneWater FeatureO p tional with LFX p acka g eWater Feature Volume controlO p tional with LFX p acka g eCu p Holders2Tactile Thera py Foot & hand Pump Information Domestic ( 60Hz ) Export ( 50Hz ) Motor Size Peak ( Continuous ) HP4.0 ( 2.5 ) H p 3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedTwo / DualTwo / sin g leCirculation p um p 11Fountain p um p n/an/a Electrical S y stem Domestic ( 60Hz ) Export ( 50Hz ) Volta g e240240Am p era g e50/40/301X16 / 2X16 / 1X32HeaterFastFlo 2.7 , 4.0 , 5.5 kWFastFlo 2.9 kWThermostatElectronicElectronic Li g ht1 with o p tional LEDMulti color LEDControl S y stemMSPA-MP-D17-NON LFX , MSPA-MP-D18 LFXMSPA-MP-CE-D17-N/LFX , -D18 LFXU pp er Control (p ro g ramable ) M-Drive with Scrollin g Messa g e CenterM-Drive with Scrollin g Messa g e CenterAuxiliar y U pp er ControlYesYes >
Open the catalog to page 1
R16 in [R41 cm]Shell > Optional stereoSub-woofer location stereo speaker location(optional) 91 1/2 in [232 cm]ShellSee Caution 91 in [231 cm]Skirt > ON BOTTOM OF SPA, TO BETHIS 3 FOOT SQUARE AREA, 89 in [225 cm]PedestalBase > SUPPORTED CONSISTENT WITH THE EDGES OF SPA BASE. 27 in [67 cm]Recommended locationElectricalInlet See Note 5 Equipment Compartment 11 in [28 cm]Hose Bib/Water Drain Vent Vent 23 1/2 in [60 cm] Vent 34 1/2 in [88 cm] 56 1/2 in [143 cm] 67 1/2 in [171 cm] 91 1/2 in [232 cm] > stereo speaker location(optional) Control Spa Lip Pedestal BaseFront View of Spa 35 1/2 in [90 cm]...
