The Arena spa by Dimension One Spas is a round-shaped model with a seating capacity of 7+. It features a shell made from Ultralife™ or Granitex™ materials. The spa measures 87 inches in diameter and 36 inches in height, with a water capacity of 340 gallons (1287 liters). The dry weight is 560 lbs (254 kg), and the full weight is 3395 lbs (1540 kg). The skirt is made of wood, and it includes a poly floor. The water treatment system used is Crystal Zone™.
Plumbing and Jets:
The spa is equipped with 2 plumbing systems and 1 filter with 75 sq. ft. coverage. It includes various VCR jets, such as 2 air adjustable/directional, 6 rotators, and 2 mini rotators, among others. Additional features include 2 Typhoon Jets, 1 Ozone Jet, and 1 Heater Return Jet.
Pumps and Electrical System:
The spa has one dual-speed jet pump for domestic use and a single-speed pump for export. It operates on a 240V electrical system with different amperage settings for domestic and export models. The heater options range from 2.7 to 5.5 kW for domestic and 2.9 kW for export. The control system includes an MSPA-MP-D12 for domestic and MSPA-MP-D11-CE for export, with a scrolling message center.
Installation and Maintenance:
The spa requires a 3-foot square area to be supported consistently with the edges of the spa base. For E-Z lifter installation, an 18-inch clearance is recommended on the backside. Alternative cabinets may add significant weight, and exact details should be confirmed with the dealer. Caution is advised when drilling for power line installation to avoid puncturing plumbing lines.
Architectural Considerations:
Due to manufacturing tolerances, minor differences may exist between the actual spa and the provided drawings. It is recommended to measure the actual spa if site planning is critical.
Catalog excerpts

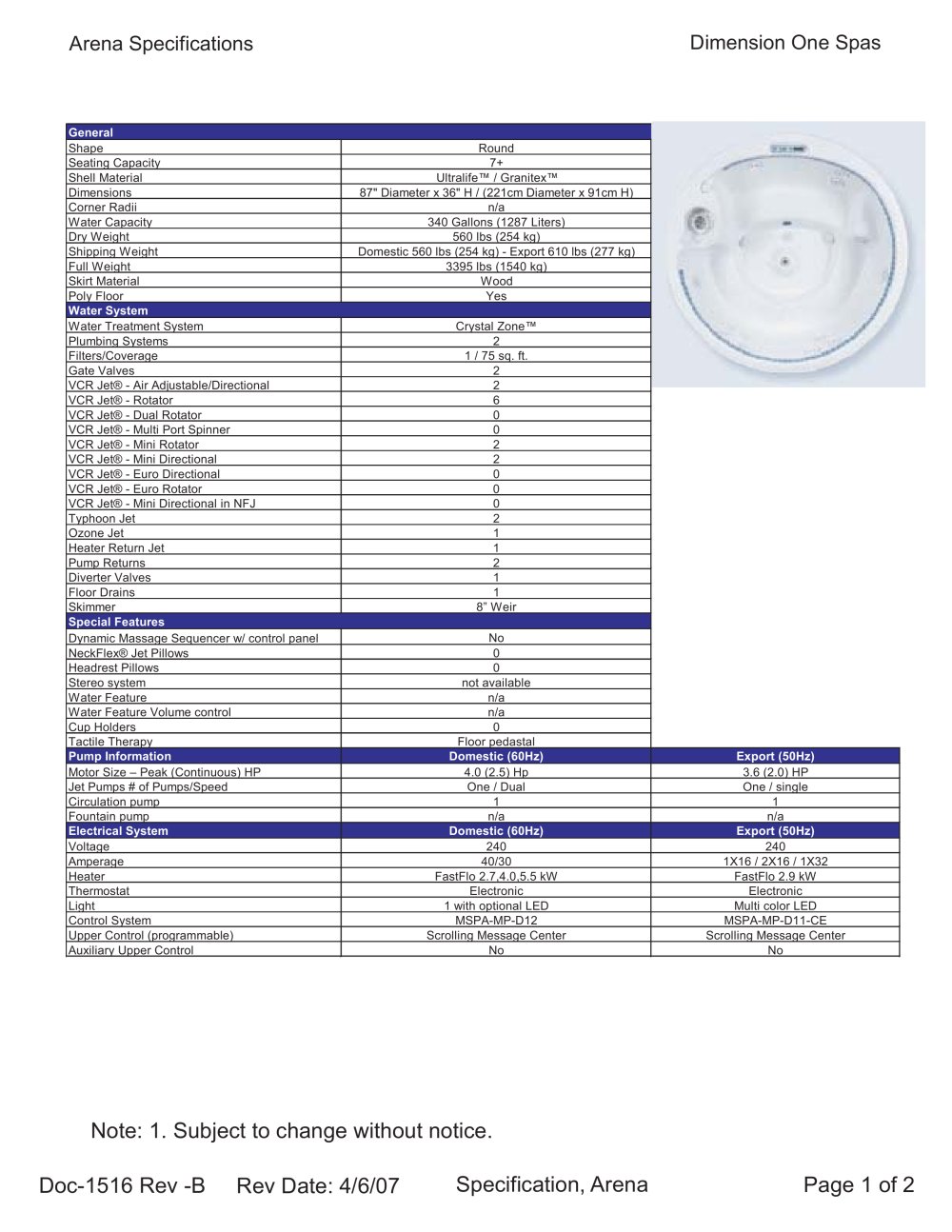

General Water System Special Features Sha p eRoundSeatin g Ca p acit y 7+Shell MaterialUltralife / Granitexٙ Dimensions87" Diameter x 36" H / ( 221cm Diameter x 91cm H ) Corner Radiin/a Water Ca p acit y 340 Gallons ( 1287 Liters ) Dr y Wei g ht560 lbs ( 254 k g) Shi pp in g Wei g ht Domestic 560 lbs ( 254 k g) - Ex p ort 610 lbs ( 277 k g) Full Wei g ht3395 lbs ( 1540 k g) Skirt MaterialWood Pol y FloorYesWater Treatment S y stemCr y stal ZonePlumbin g S y stems2Filters/Covera g e1 / 75 s q . ft.Gate Valves2 VCR Jetٮ - Air Ad j ustable/Directional2VCR Jet - Rotator6VCR Jetή - Dual Rotator0VCR Jet - Multi Port S p inner0VCR Jetή - Mini Rotator2VCR Jet - Mini Directional2 VCR Jetή - Euro Directional0 VCR Jet - Euro Rotator0 VCR Jetή - Mini Directional in NFJ0 T yp hoon Jet2Ozone Jet1Heater Return Jet1 Pum p Returns2Diverter Valves1Floor Drains1Skimmer8 WeirD y namic Massa g e Se q uencer w/ control p anelNoNeckFlexԮ Jet Pillows0Headrest Pillows0 Stereo s y stemnot availableWater Featuren/a Water Feature Volume controln/a Cu p Holders0Tactile Thera py Floor p edastal Pump Information Domestic ( 60Hz ) Export ( 50Hz ) Motor Size Peak ( Continuous ) HP4.0 ( 2.5 ) H p 3.6 ( 2.0 ) HPJet Pum p s # of Pum p s/S p eedOne / DualOne / sin g leCirculation p um p 11Fountain p um p n/an/a Electrical S y stem Domestic ( 60Hz ) Export ( 50Hz ) Volta g e240240Am p era g e40/301X16 / 2X16 / 1X32HeaterFastFlo 2.7 , 4.0 , 5.5 kWFastFlo 2.9 kWThermostatElectronicElectronicLi g ht1 with o p tional LEDMulti color LEDControl S y stemMSPA-MP-D12MSPA-MP-D11-CEU pp er Control (p ro g rammable ) Scrollin g Messa g e CenterScrollin g Messa g e CenterAuxiliar y U pp er ControlNoNo >
Open the catalog to page 1
86 3/8 in [219 cm]Skirt > THIS 3 FOOT SQUARE AREAIS TO BE SUPPORTED CONSISTENT WITH THE EDGES OF THE SPA BASE. 87 in [221 cm]ShellSee Caution 43 1/8 in [110 cm]Recommended location forElectricalInlet EquipmentCompartment 34 5/8 in [88 cm]Hose Bib/Water Drain > See Note 5 Control Panel Front Side of Spa Vent Typ 2 PL 87 in [221 cm] Control Panel Spa Lip 36 in [91 cm] 33 1/4 in [84.46 cm] 32 5/8 in [82.87 cm] 3 1/2 in [9 cm] Pedestal Base Door ExtendsUnder Spa Lip 37 1/4 in [94.61 cm] 86 3/8 in [219.39 cm] >
