Product catalog summary

Overview: The document provides specifications and features of a counterbalanced Up & Over door, highlighting its design, safety features, and structural components.

Specifications:

The door is counterbalanced and pre-painted in ivory, protected by an external PVC removable film.
Structural reinforcement is present on the perimeter and center, particularly around the lock area.
Available with either a 1 or 3 locking point Yale cylinder lock.
Includes an anti-fall safety system for enhanced security.

Components:

External surface: The visible part of the door.
Vertical stile: Vertical support structure.
Upper cross member: Horizontal support at the top.
Counterweight: Balances the door for smooth operation.
Lateral tie: Provides additional structural support.
Handle unit and lower handle: Used for opening and closing the door.
Omega reinforcing: Additional structural reinforcement.
Counterweight casing: Encloses the counterweight mechanism.

Additional Features: The door can be equipped with a pedestrian door for ease of access without fully opening the main door.

Catalog excerpts

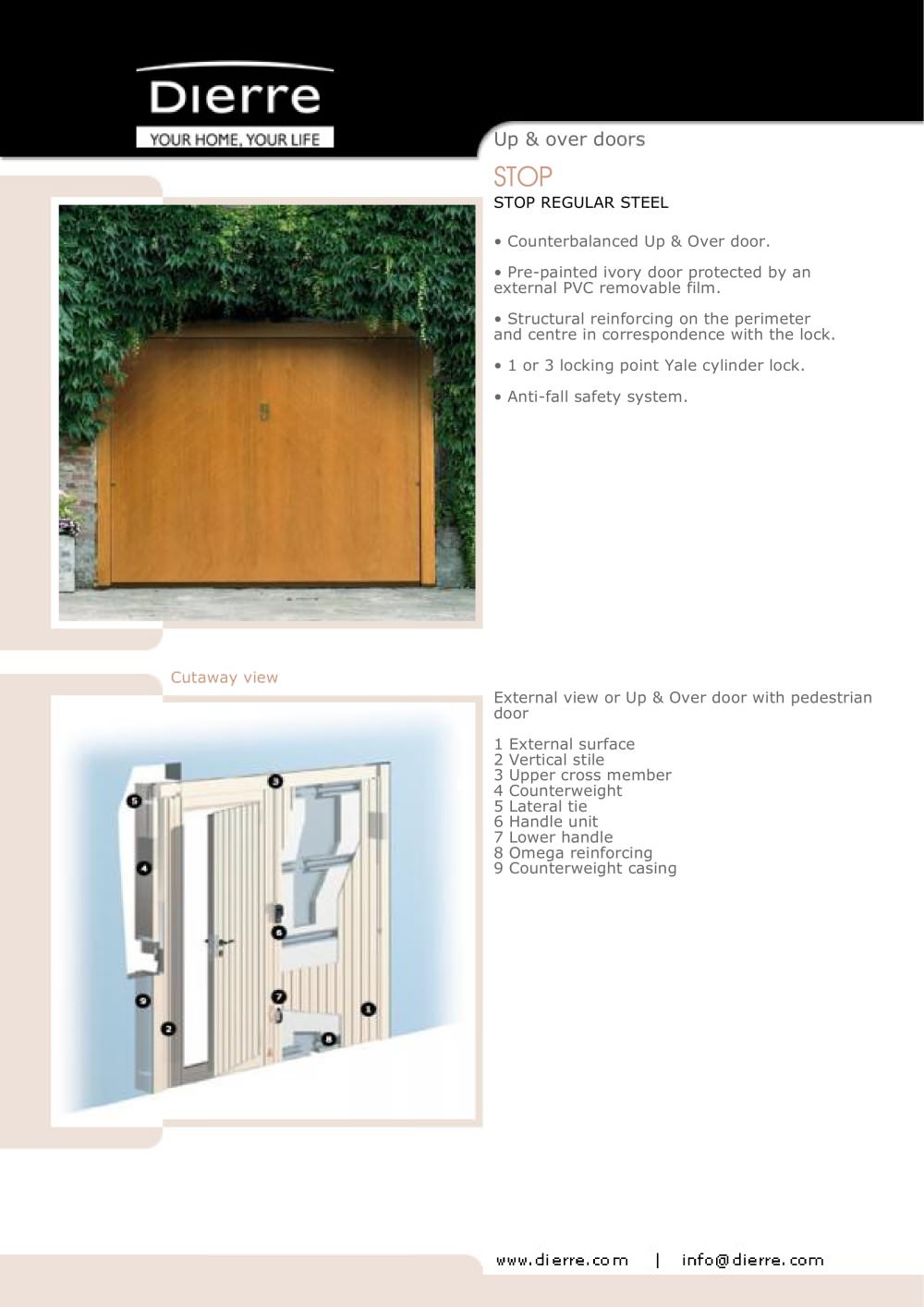

Counterbalanced Up & Over door. Օ Pre-painted ivory door protected by an external PVC removable film. Structural reinforcing on the perimeter and centre in correspondence with the lock. Օ 1 or 3 locking point Yale cylinder lock. Anti-fall safety system. External view or Up & Over door with pedestrian door 1 External surface 2 Vertical stile 3 Upper cross member 4 Counterweight 5 Lateral tie 6 Handle unit 7 Lower handle 8 Omega reinforcing 9 Counterweight casing STOP REGULAR STEEL Cutaway view >

Open the catalog to page 1
