DIECI 3

Product catalog summary

Performance Specifications

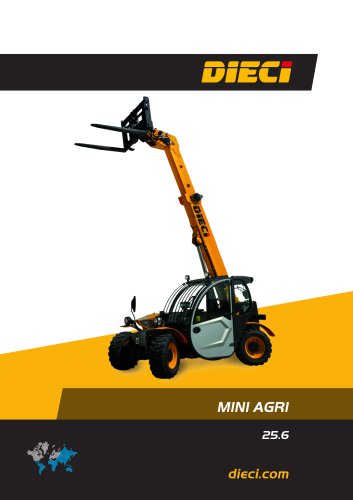

The MINI AGRI 25.6 model has a maximum capacity of 2500 kg (5512 lb) and can lift up to a height of 5.78 m (19.0 ft). It has a maximum horizontal extension of 3.25 m (10.7 ft) and a fork swiveling angle of 129°. The pull-out force is 5510 daN (12387 lbf) and towing force is 4400 daN (9892 lbf). The unladen weight is 4900 kg (10803 lb) and it can climb angles up to 40%. The maximum speed is 30 km/h (18.6 mph).

Boom Specifications
The boom operations include getting off the basket in 4.86 seconds, lifting in 9.34 seconds, extension in 7.3 seconds, retraction in 4.06 seconds, forward swiveling in 4.22 seconds, and reverse swiveling in 2.66 seconds.

Engine Specifications
The engine is a Kubota brand with a nominal power of 55.4 kW (74 HP) at 2600 rpm. It is a 4-stroke engine with mechanical injection, featuring 4 cylinders arranged vertically in line. The displacement is 3331 cm³ (203 in³) and it meets Stage IIIA/Tier 3 emission standards. The cooling system is liquid-based, and it includes a turbo compressor intake and an air pre-heating and pre-filtering system with a dust separator.

Transmission Specifications
The transmission is a single-speed hydrostatic type with a variable displacement pump and a hydrostatic motor with continuous automatic adjustment. It features electro-hydraulic reversal and a hydraulic pedal for controlled forward movement.

Differential Axles
The vehicle has 2 steering axles with 4 epicycloidal reduction gears. It supports 4-wheel, transversal, and 2-wheel steering. The front axle is rigid, while the rear axle is swinging. Service braking is oil bath on the front axle, and parking braking is negative actuation with electrical control.

Hydraulic System
The hydraulic system includes a gear pump for power steering and movements, with a capacity of 80 l/min (21.1 gal/min) and a maximum operating pressure of 23 MPa (3336 psi). The distributor control is a proportional 4in1 joystick with a single-lever hydraulic proportional distributor type.

Filling Capacities
The hydraulic system has a total capacity of 75 liters (19.81 gallons), and the diesel tank also holds 75 liters (19.81 gallons).

Tyres and Dimensions
The standard tires are sized 12.0/75-18. Key dimensions include: A - 290 mm (11.4 in), B - 985 mm (38.8 in), C - 2350 mm (92.5 in), D - 765 mm (30.1 in), F - 3535 mm (139.2 in), G - 4125 mm (162.4 in), H - 1990 mm (78.3 in), I - 1850 mm (72.8 in), L - 1510 mm (59.4 in), M - 1840 mm (72.4 in), P - 1865 mm (73.4 in), Q - 3925 mm (154.5 in), S - 1495 mm (58.9 in), T - 120 mm (4.7 in).

Catalog excerpts

PERFORMANCE Vehicle model Maximum capacity Maximum lifting height Maximum horizontal extension Fork swiveling angle Pull-out force Towing force Unladen weight Maximum climb angle Max speed (referred to wheels with maximum permitted diameter) BOOM Vehicle model Forward swiveling Reverse swiveling ENGINE Vehicle model Nominal power Number and arrangement of cylinders Emission standards Cooling system Turbo compressor Air pre-heating and air pre-filtering with dust separator TRANSMISSION Vehicle model Transmission type Single speed Hydrostatic transmission with variable displacement pump Hydraulic...

Open the catalog to page 2

Vehicle model

Open the catalog to page 3

25.6 DIECI Srl - Via E. Majorana, 2-4 - 42027 Montecchio Emilia (RE) ITALY Tel. +39 0522 869611 - Fax +39 0522 869791 - E-mail: [email protected] - www.dieci.com DOCCT0000033-EN-11 Powered by TCPDF (www.tcpdf.org)
