Product catalog summary

Overview: This document provides detailed specifications and technical data for a range of radiators, categorized by height and type (single or double). It includes dimensions, thermal output, weight, and capacity for each model, along with installation and operational guidelines.

Specifications:

Dimensions: Radiators are available in various heights (400mm, 600mm, 800mm, 1000mm, 1500mm, 1800mm, 2000mm) with corresponding widths and interaxis measurements.
Thermal Output: Each model's thermal output is provided for temperature differences of 50°C and 30°C, measured in watts (W).
Weight and Capacity: The weight (kg) and water capacity (liters) of each radiator are specified.

Technical Notes:

Maximum Operating Temperature: 90°C
Maximum Operating Pressure: 400 kPa
Customization: Special heights are available upon request, and different numbers of elements can be configured.
Installation: Wall fastening systems are described, and specific notes for single pipe installations are referenced.

Data Summary: The document includes tables listing each radiator model with its reference number, dimensions, number of elements, thermal output at specified temperature differences, weight, and capacity. This data is crucial for selecting the appropriate radiator based on space and heating requirements.

Catalog excerpts

technical data Radiator body dimensions GroRe des Heizkorpers Dimensions du corps chauffant Dimensiones del cuerpo calefactor technical notes Maximum operating temperature: 90 °C Max. Betriebstemperatur: 90° C Temperature maximum de fonctionnement: 90 °C Temperatura max de funcionamiento: 90 °C Different number of elements available Bestimmte Anordnungen und Anzahl von Elementen Possibilite de differentes quantites de elements Possibilidad de diferentes numeros de elementos Special heights available upon request: 750/II00/I300/I400/I600/I700/I900 Besondere Hohen nach Kundenwunsch moglich: 750/II00/I300/I400/I600/I700/I900 Hauteurs speciales disponibles a la demande: 750/II00/I300/I400/I600/I700/I900 Alturas especiales disponibles previa solicitud: 750/II00/I300/I400/I600/I700/I900 For single pipe installation, please consult technical notes Pag.3I3 Bei dem Einrohrsystem lesen Sie die technischen Daten auf Seite 3I5 Pour installation monotube consulter les renseignements techniques detailles Pag. 3I7 Para instalaciones monotubo consulte las informaciones tecnicas detalladas Pag. 3I9 Maximum operating pressure: 400 kPa Max. Betriebsdruck: 400 kPa Pression maximum de fonctionnement: 400 kPa Presion max de funcionamiento: 400 kPa

Open the catalog to page 1

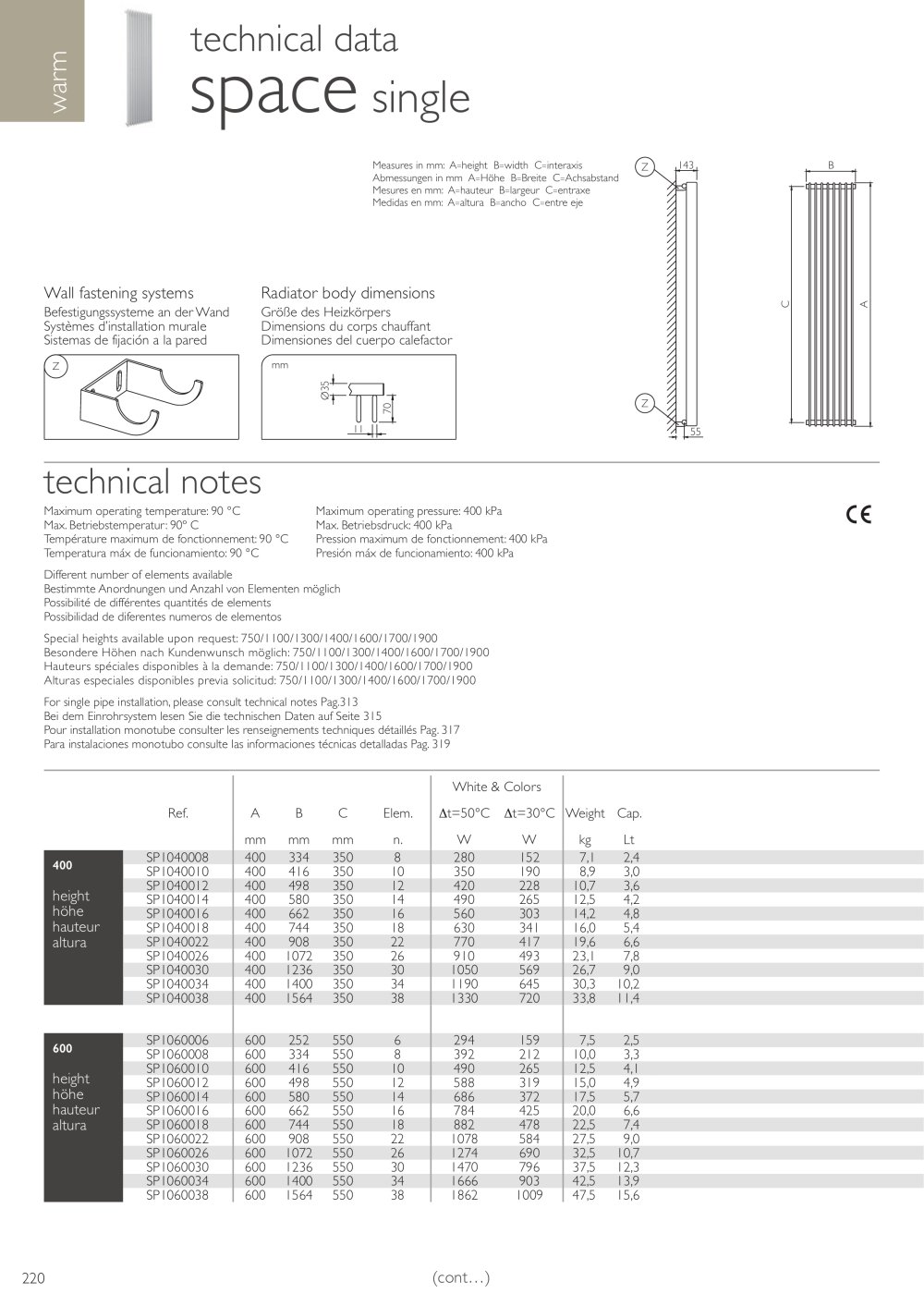

technical data SpaCE single Ref

Open the catalog to page 2

technical data Wall fastening systems Befestigungssysteme an der Wand Systemes d'installation murale Sistemas de fijacion a la pared Radiator body dimensions GroRe des Heizkorpers Dimensions du corps chauffant Dimensiones del cuerpo calefactor technical notes Maximum operating temperature: 90 °C Max. Betriebstemperatur: 90° C Temperature maximum de fonctionnement: 90 °C Temperatura max de funcionamiento: 90 °C Different number of elements available Bestimmte Anordnungen und Anzahl von Element Possibilite de differentes quantites de elements Possibilidad de diferentes numeros de elementos Maximum...

Open the catalog to page 3

technical data

Open the catalog to page 4
