Technical Specifications

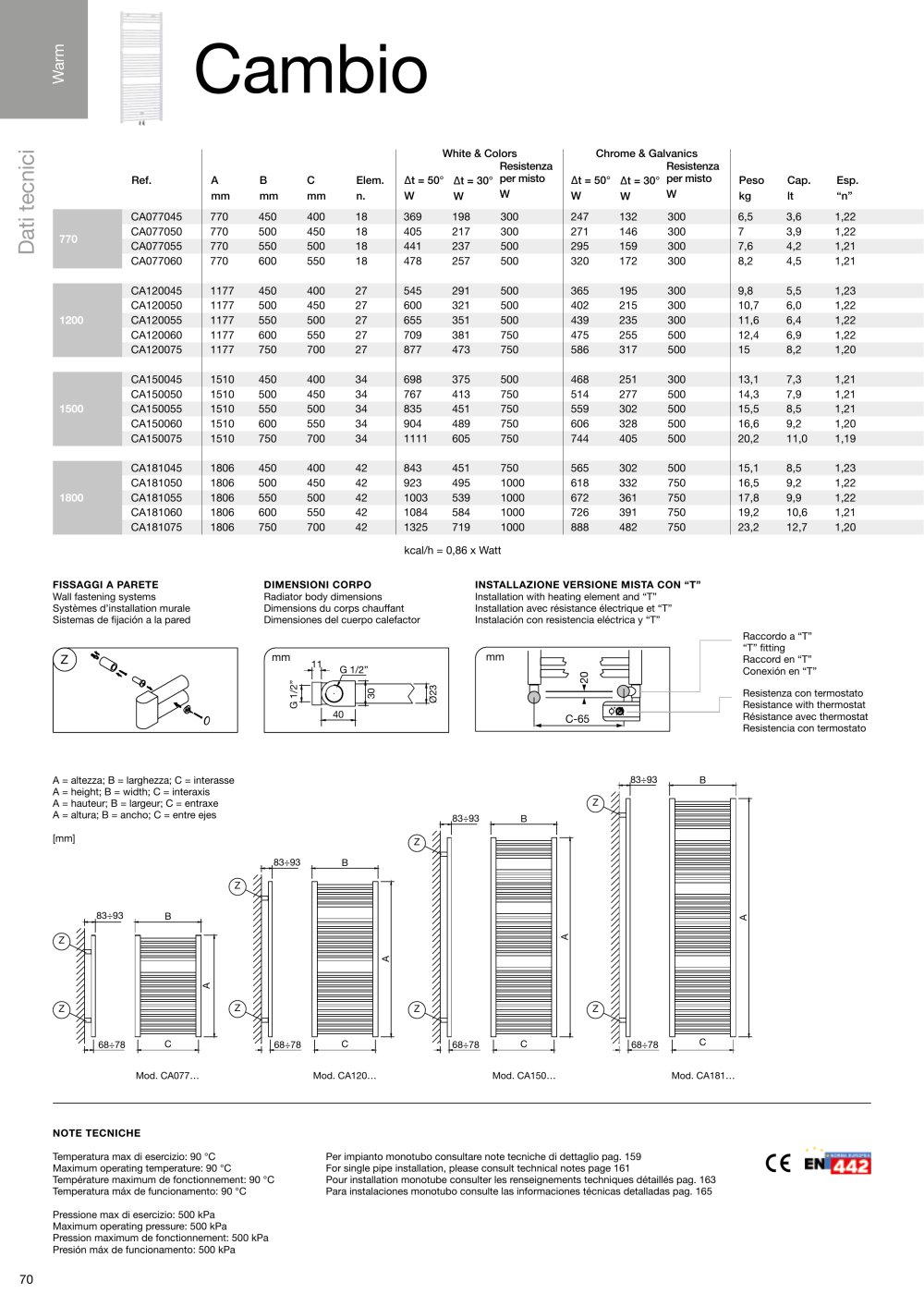

This document provides detailed technical data for a series of radiators identified by model codes such as CA077045, CA120045, CA150045, and CA181045, among others. The radiators vary in dimensions, power output, weight, and capacity.

Key Parameters

• Dimensions: Height (A), Width (B), and Interaxis (C) are specified in millimeters for each model.
• Power Output: Thermal power is given in Watts (W) for temperature differences (Δt) of 30°C and 50°C, with separate values for white & colors and chrome & galvanic finishes.
• Weight and Capacity: Weight is provided in kilograms (kg), and water capacity in liters (lt).
• Thickness and Elements: Thickness (Esp.) and number of elements (Elem. n.) are listed for each radiator.
• Resistance for Mixed Installation: Electrical resistance power values (W) for mixed installations at 1200, 1500, and 1800 Watts are included.

Operating Conditions

• Maximum Operating Temperature: 90 °C
• Maximum Operating Pressure: 500 kPa

Installation and Mounting

• Wall Fastening Systems: The document references wall mounting options compatible with the radiator models.
• Installation with Heating Element and "T" Fitting: Instructions and dimensions for installing the radiator with an electric heating element and a "T" fitting are provided, including thermostat resistance and connection details.
• Single Pipe Installation: For single pipe systems, additional technical notes are referenced on page 159 (or equivalent in other languages).

Additional Notes

• Dimensions and installation details are given in multiple languages (Italian, English, French, Spanish) to support international use.
• The formula for converting Watts to kcal/h is provided: kcal/h = 0.86 × Watt.
• Model-specific data includes variations in power output and weight depending on size and finish.

Summary of Model Data

The radiator models are grouped by size series (e.g., CA077, CA120, CA150, CA181) with increasing dimensions and power ratings. For example:

• CA077045: Height 770 mm, Width 450 mm, Power at Δt=50°C (White) 369 W, Weight 6.5 kg, Capacity 3.6 lt.
• CA120060: Height 1177 mm, Width 600 mm, Power at Δt=50°C (White) 709 W, Weight 12.4 kg, Capacity 6.9 lt.
• CA150075: Height 1510 mm, Width 750 mm, Power at Δt=50°C (White) 1111 W, Weight 20.2 kg, Capacity 11.0 lt.
• CA181075: Height 1806 mm, Width 750 mm, Power at Δt=50°C (White) 1325 W, Weight 23.2 kg, Capacity 12.7 lt.

This data supports selection based on heating requirements, installation constraints, and aesthetic finish.
