Hinged Fire Doors_2010

Product catalog summary
Overview: DAN-doors offers hinged fire doors designed for both industrial and chill applications, certified to withstand a 60-minute fire test according to DS 1052 standards. These doors are equipped with features to enhance fire resistance and meet hygiene standards.
Specifications:
  • Fire Rating: 60 minutes
  • Thickness: 60 or 62 mm
  • Dimensions: Customizable, with maximum dimensions of 1100 x 2200 mm for single-leaf and 2200 x 2200 mm for double-leaf doors
  • Insulation: Non-organic material with excellent insulation properties
  • Door Leaf Material: Plastisol-coated, galvanized steel, or stainless steel, available in various finishes
  • Frame: 1.0 mm or 1.5 mm thickness, insulated with non-organic material
  • Gaskets: Silicone rubber, compliant with fire safety and food safety regulations
  • Hinges: Stainless steel with bronze bushes
  • Handles: Stainless steel with bronze bearings, available with plain or key plate for cylinder lock
  • Door Closer: Sturdy, with synchronization fittings for double-leaf doors
  • Intumescent Strip: Expanding fire paste list
Additional Features:
  • Galvanized espagnolette device on stationary leaf for double-leaf doors
  • Optional synchronization fittings and extra door closer for double-leaf doors
  • Stainless steel threshold, cylinder lock, and kick plates available
Compliance and Quality: The doors meet the strictest hygiene standards and comply with the Foodstuffs Hygiene Directive 93/43/EEC. They are designed with quality materials and precision engineering, suitable for the food industry and other demanding environments.
Contact Information: DAN-doors A/S, Industrivej 19, Stilling, DK-8660 Skanderborg, Tel: +45 87 93 87 00, Email: [email protected], Website: www.dan-doors.com
See more

Catalog excerpts

Hinged Fire Doors_2010-1

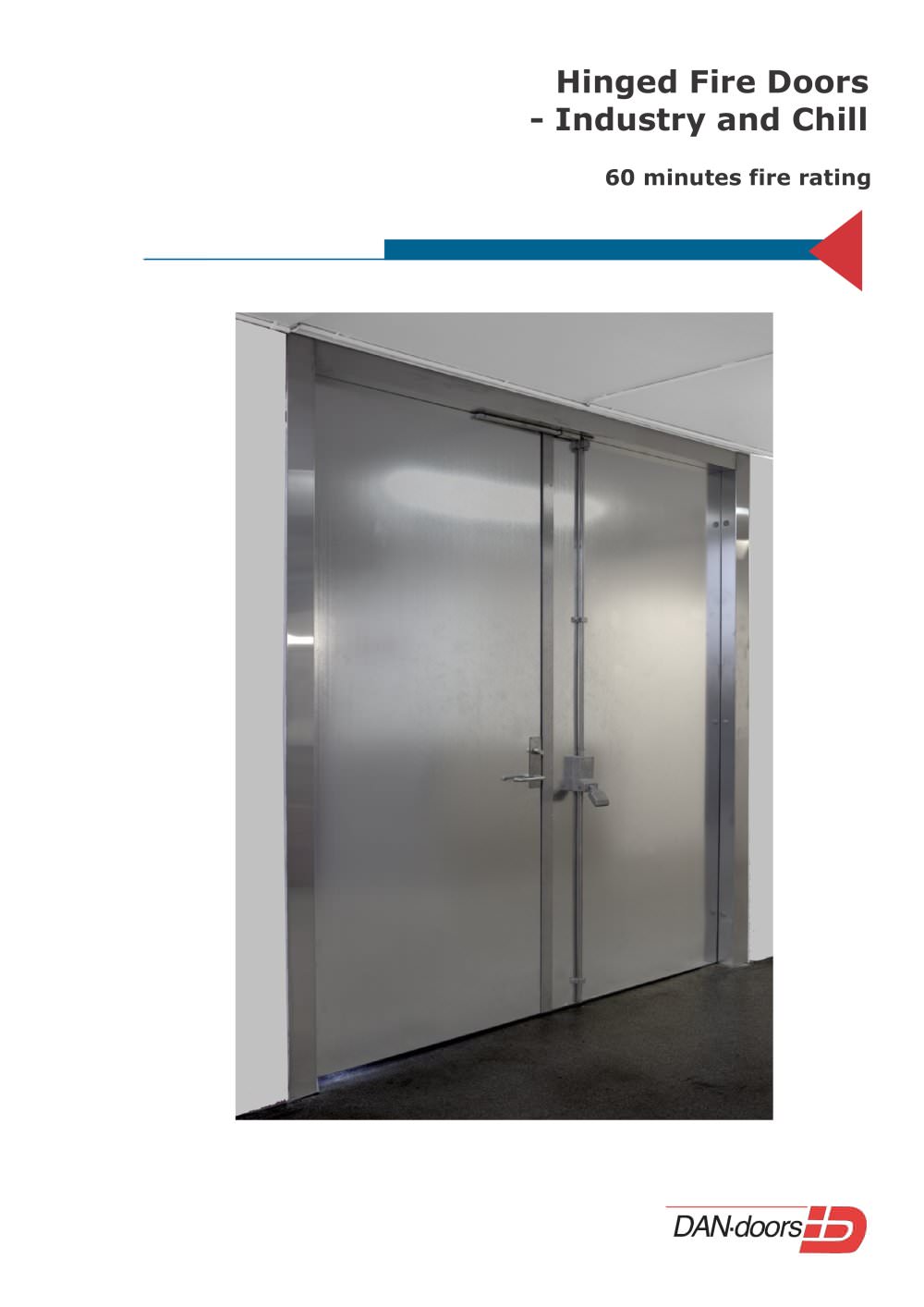

Hinged Fire Doors - Industry and Chill 60 minutes fire rating

 Open the catalog to page 1
Hinged Fire Doors_2010-2

Hinged Fire Doors – Industry and Chill DAN-doors hinged fire doors are certified according to DS 1052 Referring to this DAN-doors fire sliding doors can resist 60 minutes fire test. The door comes standard with a sealing gasket for chill function and an intumescent strip that expands and seals the door in case of fire. For industry applications the BS 60 door is without sealing gasket. DAN-doors hinged fire doors can be delivered in various surfaces and as 1 or 2-leaf doors. Thickness: 60 og 62 mm. Dimensions: Made to measure, but max W 1100 x 2200 for 1 and max W 2200 x H 2200 for 2-leaf doors....

 Open the catalog to page 2
