VIR SERIES

Product catalog summary

Overview: The document provides detailed specifications and descriptions of the Vir Series signalling luminaries, designed and patented by Daisalux, S.A.U. These luminaries are built to comply with EN 60598-1 standards and various EU directives, ensuring compatibility with electromagnetic, low-voltage, and RoHS requirements.

Construction Details: The luminaries are constructed to meet IP 42 and IK 03 standards, suitable for mounting on normally flammable surfaces (Class 'F'). They offer protection against electrical shocks (Class II for permanent and luminary models, Class III for no power supply module models).

Power Supply and Battery: The luminaries operate at a supply voltage of 230V-50Hz with a consumption of less than 50mA. They include a battery protected against excessive discharges and polarity reversal, with a range of 1 hour and a charge time of 24 hours. Models without a power supply module require a 24V AC/DC supply.

Model Variants: The Vir Series includes various models such as ceiling signs, flat wall signs, left-hand and right-hand protruding wall signs, and hanging signs. These are available in different configurations: Permanent, Permanent TCA (with self-test mode and DaisaTest system), Luminary (mains connection), and No Power Supply Module (requires PBL unit).

Finishes and Customization: Standard signs feature V-grooved edges to enhance visibility, while special signs can be customized with or without V-grooved edges. Photoluminescent signs are available for models without photoluminescent lighting.

PBL Units: The document details PBL units for 'No Power Supply' models, providing battery-powered solutions with various output capacities and operational modes, including Autotest and Daisatest Centralised System compatibility.

Dimensions and Materials: The luminaries are described as simple, compact, and transparent, made from acrylic material with an aluminum frame, utilizing the latest LED technology for consistent and long-lasting lighting.

Notes: For different sizes and custom orders, the document advises contacting the factory. The document also includes a disclaimer that Daisalux reserves the right to modify the information without prior notice.

Catalog excerpts

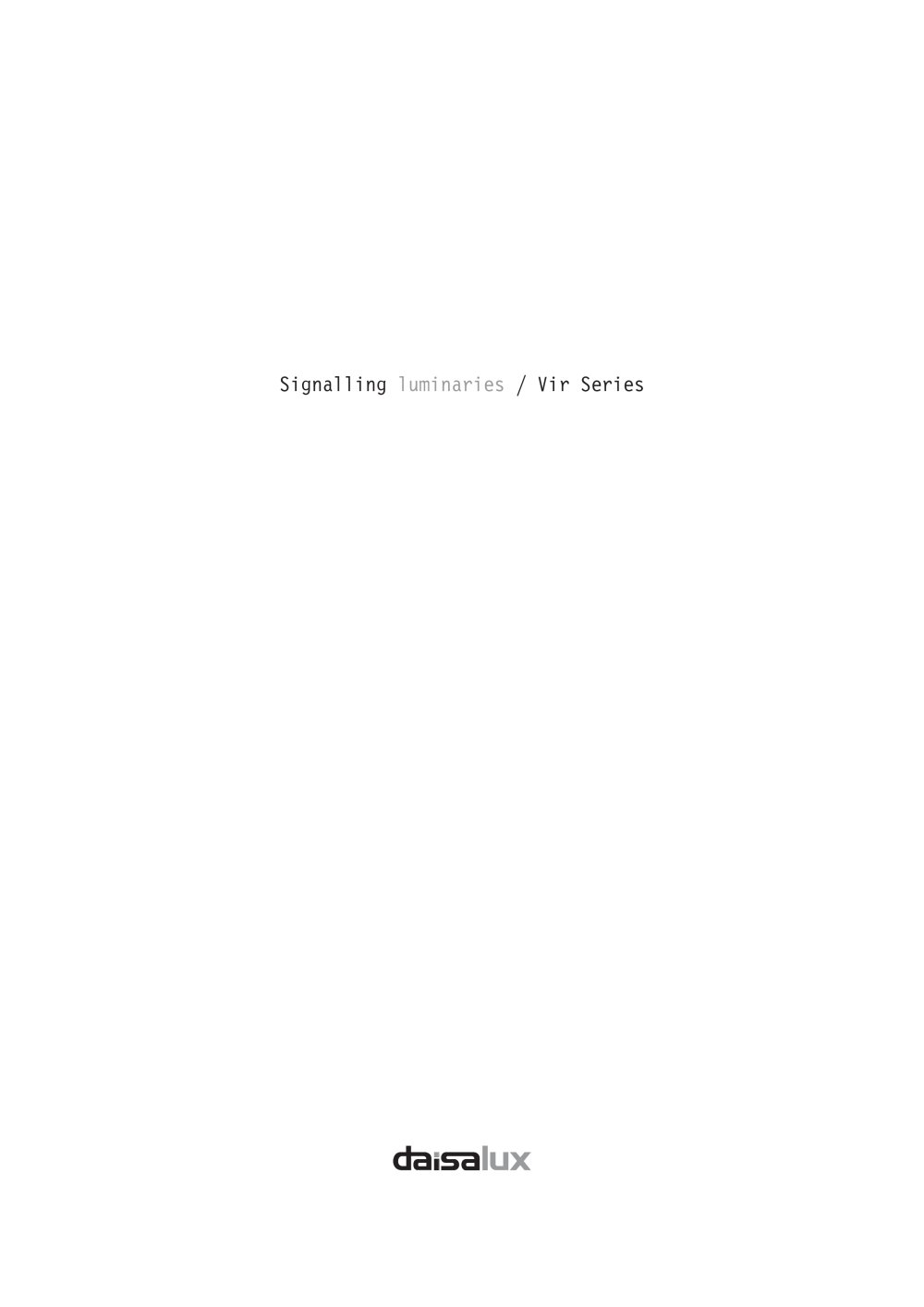

Signalling luminaries / Vir Series >

Open the catalog to page 1

Construction details: Built to EN 60598-1 / Conforming to Community Electromagnetic Compatibility, Low-Voltage and RoHSDirectives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC / IP 42 IK 03 / Luminary suitable for mounting on normally flammablesurfaces: Class FӔ. Luminary: Supply voltage: 230V-50Hz / Consumption < 50mA / Order reference includes luminary and low-voltage supply module/ Protection against electrical shocks from the luminary: Class II. Permanent: Supply voltage: 230V-50Hz / Consumption < 50mA / Battery protected against excessive discharges and polarity reversal/ Remote control standby...

Open the catalog to page 3

5 Signalling luminaries Vir Series 210x210 Vir2121-T Ceiling Sign > Pat. mod. Vir2121-P Flat Wall Sign > Pat. mod. Vir2121-BI left-handProtruding wall sign > Pat. mod. Vir2121-BD right-handProtruding wall sign > Pat. mod. Vir2121-S Hanging sign > Pat. mod. size="-2">

Open the catalog to page 6

Simple, compact, transparent, made in acrylic material with an aluminium frame and latest LED technology.Provides consistent, long-lasting lighting and offers a definitive solution for permanent signs. Provides an uninterrupted visual sequence through its highly discrete symbols. ModelAssemblyPower supplyPermanent: The permanent models include a permanent power supply module with batteries.Battery range of 1 hour. (See page 10).VIR1616-T PCeiling sign230VVIR1616-P PFlat wall sign230VVIR1616-BI P Left-hand protruding wall sign230VVIR1616-BD P Right-hand protruding wall sign230V VIR1616-S PHanging...

Open the catalog to page 9

RTF0906RTF0911Available at 195x320 and 210x210 in standard photoluminescent signs. > The V-grooved edges of the main outline of the drawing lets the light through said areas tohighlight the identification of the image. >

Open the catalog to page 13

All the models from the Vir series shown in this catalogue have been created and patented by Daisalux, S.A.U, and are for exclusive use by said company. Edition 1 - Revision 1 30/11/07Daisalux reserves the right to modify the information in this catalogue without prior notice. >

Open the catalog to page 16
