LEDA SERIES

Product catalog summary

Construction Details: The Leda Series beacons are constructed according to EN 60598-1 (IEC 60598-1) standards and comply with various EU directives including Electromagnetic Compatibility, Low Voltage, and RoHS. The materials used are self-extinguishing plastics tested up to 850ºC.

Technical Specifications: These beacons operate at a supply voltage of 24V AC/DC and are classified as Class III luminaires. They can be used with or without mains connection through specific devices (PBL-80, PBL-25, PBL-60 TCA) or with a TL-40 transformer. They are maintenance-free and have an IP 64 IK 07 protection rating.

Mounting Options: The beacons can be panel-mounted with rear access or mounted without rear access using a snap-fit method. The required orifice sizes are Ø16 mm for bolt mounting and Ø15.5 mm for snap-fit mounting.

Design and Colors: The beacons feature a stainless steel trim and are available with opal or transparent polycarbonate diffusers. LED colors include blue, amber, green, red, and white.

Power Supply Devices: Various power supply devices are available, including PBL-80, PBL-25, PBL-60 TCA, and TL-40, each with specific battery types and capacities. The PBL-80 and PBL-60 TCA models include self-test modes and microprocessors for centralized system operation.

Accessories: Accessories include the KE LEDA recessed housing box for installations without rear access and the DIR-1 directional switch for sequential operation of beacons.

Ordering Example: An example order includes 70 LEDA beacons with white LEDs and opal diffusers, plus one PBL-80 power supply device.

Company Information: All models are patented by Daisalux, S.A.U., and the company reserves the right to modify the catalogue information without notice.

Catalog excerpts

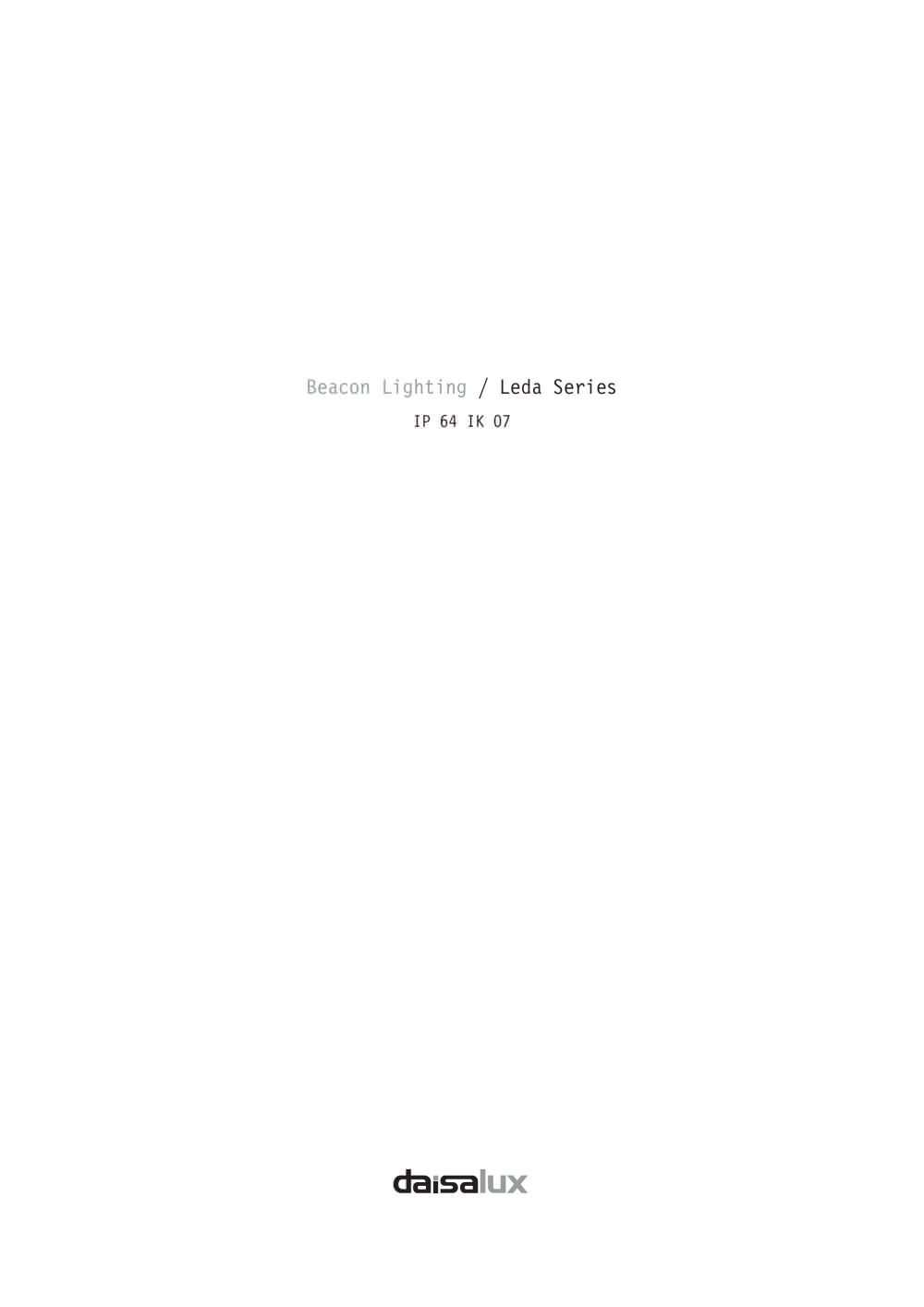

Beacon Lighting / Leda Series > IP 64 IK 07 size="-1">

Open the catalog to page 1

1 Beacon Lighting > Actual size photo size="-1">

Open the catalog to page 2

Construction details: Built to EN 60598-1 (IEC 60598-1) standard / Conforming to Community Electromagnetic Compatibility,Low Voltage and RoHS Directives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC / Self extinguishing plastic materials,850C to EN 60598-1 (IEC 60598-1) and EN 60695-2-1 (IEC 60695-2-1), according to models. Technical specifications: Supply voltage 24V AC/DC / Class III Luminary / Signalling: with or without mains connectionthrough centralised PBL-80, PBL-25 and PBL-60 TCA devices, and only with mains connection through the TL-40 transformer / Does not require maintenance / IP...

Open the catalog to page 3

Trim manufactured instainless steel.Opal polycarbonate diffuser Panel-mounted with rear access. Mounted with a boltRequired orifice 16 mm. LED colour: white. Pat. mod. > Panel thickness Trim manufactured instainless steel.Transparent polycarbonatediffuser > ؘ20 Min. 5 mm.Max. 16 mm. 22261 2022261 LED colour: amber.Pat. mod. Mounted on material with no rear access. Mounted with no bolt (snap-fit).Required orifice ؘ 15.5 mm.Trim manufactured instainless steel.Opal polycarbonate diffuser > Panel thickness Min. 6 mm. LED colour: blue. Pat. mod. KE LEDA: Recessed housing LEDA Trim manufactured instainless...

Open the catalog to page 4

Latest bet of Daisalux for the led technology in the field of signaling and beaconing. Composed of an opalor transparent polycarbonate diffuser and a stainless steel trim. Its small dimensions (20 mm diameter and26 mm depth), colour variety through four led diodes in five different colours and recessed mounting providethis beacon with an aesthetic suitable for integrating into the most demanding projects in terms of architectureand decoration. > LEDA BWhite24V DC/AC (I=0,015 A)*IP 64 IK 07LEDA ZBlue24V DC/AC (I=0,015 A)*IP 64 IK 07 LEDA VGreen24V DC/AC (I=0,015 A)*IP 64 IK 07LEDA AAmber24V DC/AC...

Open the catalog to page 5

ELECTRICAL GROUP All the Leda series models shown in this catalogue have been created and patented by Daisalux, S.A.U., and are for the exclusive use of this company. Edition 1 - Revision 2. 30/11/07Daisalux reserves the right to modify the information in this catalogue without notice. >
