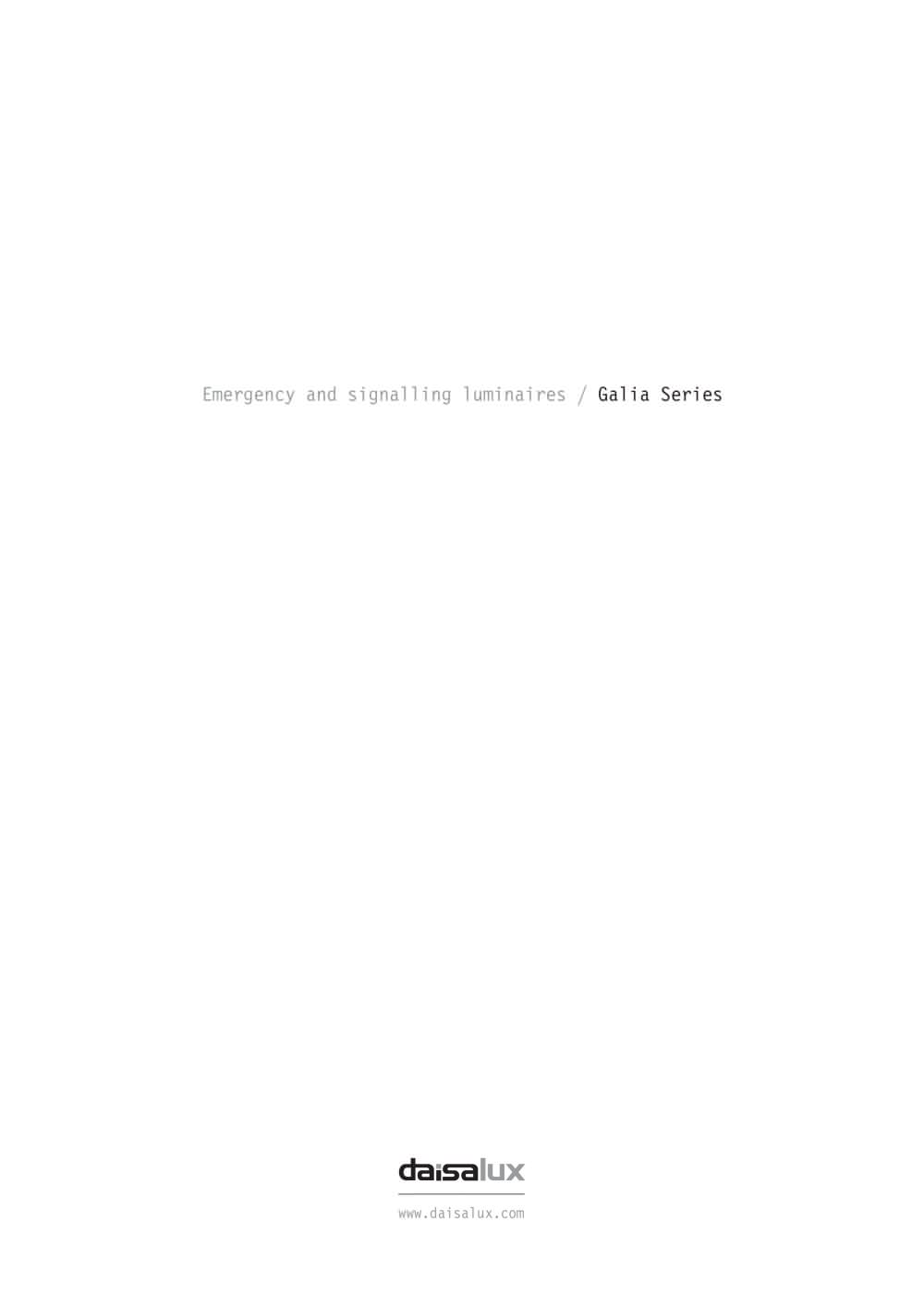

Emergency and signalling luminaires / Galia Series www.daisalux.com

1 Emergency and signalling luminaires

Galia Series 2 Emergency and signalling luminaires Construction details: Built to EN 60598-2-22 standards / According to European Electromagnetic Compatibility , Low Voltage and RoHS Directive 2004/108/EC, 2006/95/EC and 2002/95/EC / Built to synthetic material, 850ºC according to EN 60598-1 and EN 60695-2-10 / Battery protected against excessive discharges / Standby by remote control / Circuit for remote control protected against connection errors / Electric shock protection: Class II / Luminaire suitable for installation on normally inflammable surfaces: Class "F" / IP 42 IK 04 / Thermal protection...

3 Emergency and signalling luminaires Surface Galia Series Casing and trim in synthetic material. Trim finish painted silver grey RAL9006. Matt opal diffuser. 180 360 50 Suspended Galia Series Metal tubular supports polished and painted silver grey RAL 9006. Hanging support reinforced with fibreglass. Trim finish painted silver grey RAL 9006. 62 360 180 300 21 27 292 Galia Series Its shapes, innocent colours and essential nature grant it a necessary introverted nature, in order to obtain a timid visual dialogue in its relationship with the spatial and functional order. Ceiling mounted Galia Series...

Operation, common data and notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltage present, while the other comes into operation in the event of a power failure. 4 Emergency and signalling luminaires Model Autonomy Lumens Emerg. lamp Charging monitor Non Maintained: GALIA N2 1 h 100 FL 8 W White LED GALIA N4 1 h 200 FL 8 W White LED GALIA N6 1 h 260 FL 8 W White LED GALIA 2N3 2 h 140 FL 8 W White LED GALIA 3N2 3 h 100 FL 8 W White LED Model Autonomy Lumens Emerg. lamp Mains lamp Charging monitor Maintained: GALIA P2 1 h 100 FL 8 W FL 8 W White LED...

Operation, common data and notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltage present, while the other comes into operation in the event of a power failure. 5 Emergency and signalling luminaires Model Autonomy Lumens Emerg. lamp Charging monitor Non Maintained: GALIA-B N5 1 h 260 FL 8 W White LED GALIA-B 2N3 2 h 140 FL 8 W White LED GALIA-B 3N3 3 h 115 FL 8 W White LED Model Autonomy Lumens Emerg. lamp Mains lamp Charging monitor Maintained: GALIA-B P2 1 h 120 FL 8 W FL 8 W White LED GALIA-B P5 1 h 250 FL 8 W FL 8 W White LED Model Autonomy Lumens...

Operation, common data and notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltage present, while the other comes into operation in the event of a power failure. For metal tubular support sizes other than those shown in this catalogue, please check with the factory. 6 Emergency and signalling luminaires Model Autonomy Lumens Emerg. lamp Charging monitor Non Maintained: GALIA-S N5 1 h 260 FL 8 W White LED GALIA-S 2N3 2 h 140 FL 8 W White LED GALIA-S 3N3 3 h 115 FL 8 W White LED Model Autonomy Lumens Emerg. lamp Mains lamp Charging monitor Maintained:...

Operation, common data and notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltage present, while the other comes into operation in the event of a power failure. 7 Emergency and signalling luminaires Model Autonomy Lumens Emerg. lamp Charging monitor Non Maintained: GALIA-AD N5 1 h 260 FL 8 W White LED GALIA-AD 2N3 2 h 140 FL 8 W White LED GALIA-AD 3N3 3 h 115 FL 8 W White LED Model Autonomy Lumens Emerg. lamp Mains lamp Charging monitor Maintained: GALIA-AD P2 1 h 120 FL 8 W FL 8 W White LED GALIA-AD P5 2 h 250 FL 8 W FL 8 W White LED Model Autonomy...

Exit signs Surface Galia Series / Pennant Galia Series / Suspended Galia Series / Ceiling mounted Galia Series 9 Emergency and signalling luminaires NOTE: Customized exit signs and pictograms may be supplied to order. DIMENSIONS: 350 x 150 mm. RT1225 RT1220 RT1223 RT1224 RT1205 RT1201 RT1202 RT1204 RT1206 RT1208 RT1209 RT1215 RT1216

All the Galia Series models that appear in this catalogue are created and patented by Daisalux, S.A.U., and are for the exclusive use of this company. Edition 1 - Revision 2. 10/03/08 Daisalux reserves the right to modify the information in this catalogue with no prior notice. DAISALUX, S.A.U.- Polígono Industrial Júndiz - C/Ibarredi, 4 Apdo. 1578 01015 Vitoria (Spain) Tel. +34/945 29 01 81 - Fax: +34/945 29 02 29 e-mail: [email protected] • http://www.daisalux.com E L E C T R I C A L G R O U P
