Construction Details: The Clavo Series by Beacon Lighting is constructed according to EN 60598-1 (IEC 60598-1) standards and complies with various directives including Community Electromagnetic Compatibility, Low Voltage, and RoHS Directives. The materials used are self-extinguishing plastics tested up to 850ºC.

Technical Specifications: The beacons operate at a supply voltage of 24V AC/DC and are classified as Class III Luminaries. They can be used with or without mains connection through devices like PBL-80, PBL-25, and PBL-60 TCA, or with a TL-40 transformer. The beacons are maintenance-free and have an IP 64 IK 07 protection rating.

Design and Features: The Clavo Series features a cylindrical body made of stainless steel with a polycarbonate diffuser. The LED colors available are blue, white, red, green, and amber. The beacons are designed for easy installation and integration into various design and signaling applications.

Accessories and Power Supply: The series includes various power supply devices such as PBL-80, PBL-25, and PBL-60 TCA, each with specific battery capacities and features like self-test mode and microprocessor operation. The TL-40 transformer can supply up to 40 beacons, and the DIR-1 directional switch allows sequential activation of beacons.

Installation and Ordering: The Clavo beacons require a 6 mm hole for installation and come with a 1.5-meter cable. Orders must specify the diffuser type (Transparent or Opal) and LED color. An example order includes 150 CLAVO beacons with white LEDs and transparent diffusers, along with 2 PBL-80 units.

Model Variants: The Clavo Series includes models with different LED colors, each operating at 24V DC/AC with an IP 64 IK 07 rating. The maximum number of beacons powered by each power supply device is specified, with the PBL-80 supporting up to 80 beacons.

Manufacturer Information: All models are patented by Daisalux, S.A.U., and the company reserves the right to modify the catalog information without notice. Contact details for Daisalux are provided for further inquiries.

Catalog excerpts

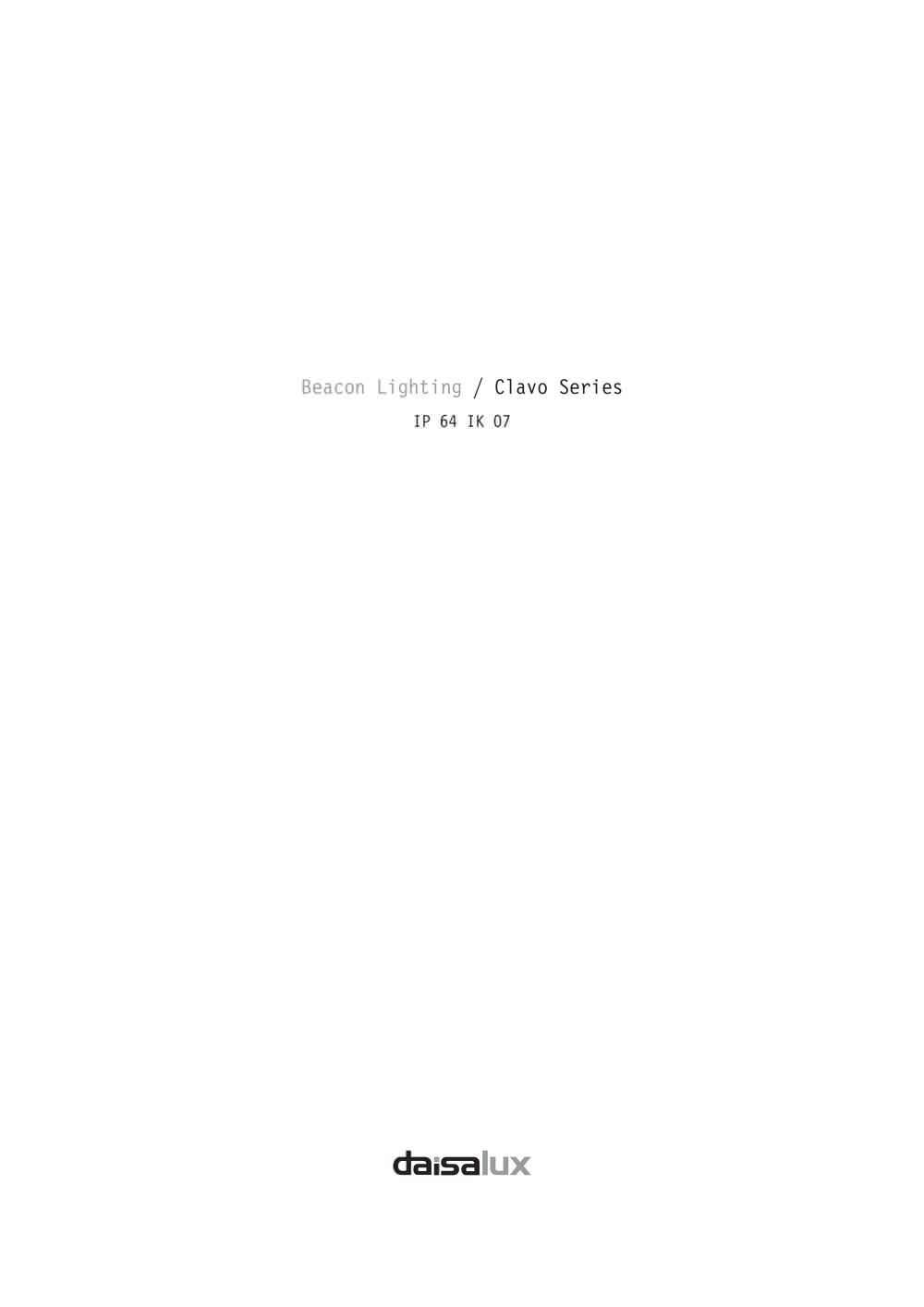

Beacon Lighting / Clavo Series > IP 64 IK 07 size="-1">

Open the catalog to page 1

1 Beacon Lighting > Actual size photo size="-1">

Open the catalog to page 2

Construction details: Built to EN 60598-1 (IEC 60598-1) standard / Conforming to Community Electromagnetic Compatibility,Low Voltage and RoHS Directives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC / Self extinguishing plastic materials,850C to EN 60598-1 (IEC 60598-1) and EN 60695-2-1 (IEC 60695-2-1), according to models. Technical specifications: Supply voltage 24V AC/DC / Class III Luminary / Signalling: with or without mains connectionthrough centralised PBL-80, PBL-25 and PBL-60 TCA devices, and only with mains connection through the TL-40 transformer / Does not require maintenance / IP...

Open the catalog to page 3

Cylindrical bodymanufactured in stainless steel.Polycarbonate diffuser > 5,5 LED colour: amber.Pat. mod. > ؘ 6337 Cylindrical bodymanufactured in stainlesssteel.Polycarbonate diffuser LED colour: blue.Pat. mod. KE CLAVO: Clavo recessed housing box Cylindrical bodymanufactured in stainlesssteel.Polycarbonate diffuser LED colour: white.Pat. mod. > 6 52,5 37 Cylindrical bodymanufactured in stainlesssteel.Polycarbonate diffuser > Hole required: 6 mm.48,5 LED colour: red.Pat. mod. Cylindrical bodymanufactured in stainlesssteel.Polycarbonate diffuser LED colour: green.Pat. mod. Whether in signallingapplications...

Open the catalog to page 4

FinishesFinish of:Description Marking DiffuserTransparent(TR)Opal(OPAL) Accessories Reference:Description KE CLAVOCLAVO recessed housing box for installations with norear access (brick walls, ceramic, staircases, etc.). Power supply devices PBL-80Battery-powered unit with a constant output at 24V, 1.20 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels, one of which can be adjustedwhen connected to the mains. Operation in Self-test mode.PBL-80 (NI-MH)Battery-powered unit with a constant output at 24V, 1.20 A. Includes NI-MH battery.Battery range of 1 hour. Has two power levels,...

Open the catalog to page 5

Clavo SeriesVela S Tenerife Auditorium >

Open the catalog to page 6

e la Series Lyra Series >

Open the catalog to page 7

ELECTRICAL GROUP All the Clavo series models shown in this catalogue have been created and patented by Daisalux, S.A.U., and are for the exclusive use of this company. Edition 1 - Revision 2. 30/11/07Daisalux reserves the right in modify the information in this catalogue without notice. >
