Double Discovery Wall Ovens
Product catalog summary
Overview: This document is a planning guide for the installation of Dacor's Discovery wall ovens, available in 27 and 30-inch widths. It includes specifications, cutout dimensions, electrical requirements, and overall dimensions.
Specifications: The guide specifies that the ovens require a dedicated circuit with a total connected load of 8.6kW (37A) and a 240VAC, 4-wire, 60Hz, 40A breaker. The approximate shipping weight is 415 lbs.

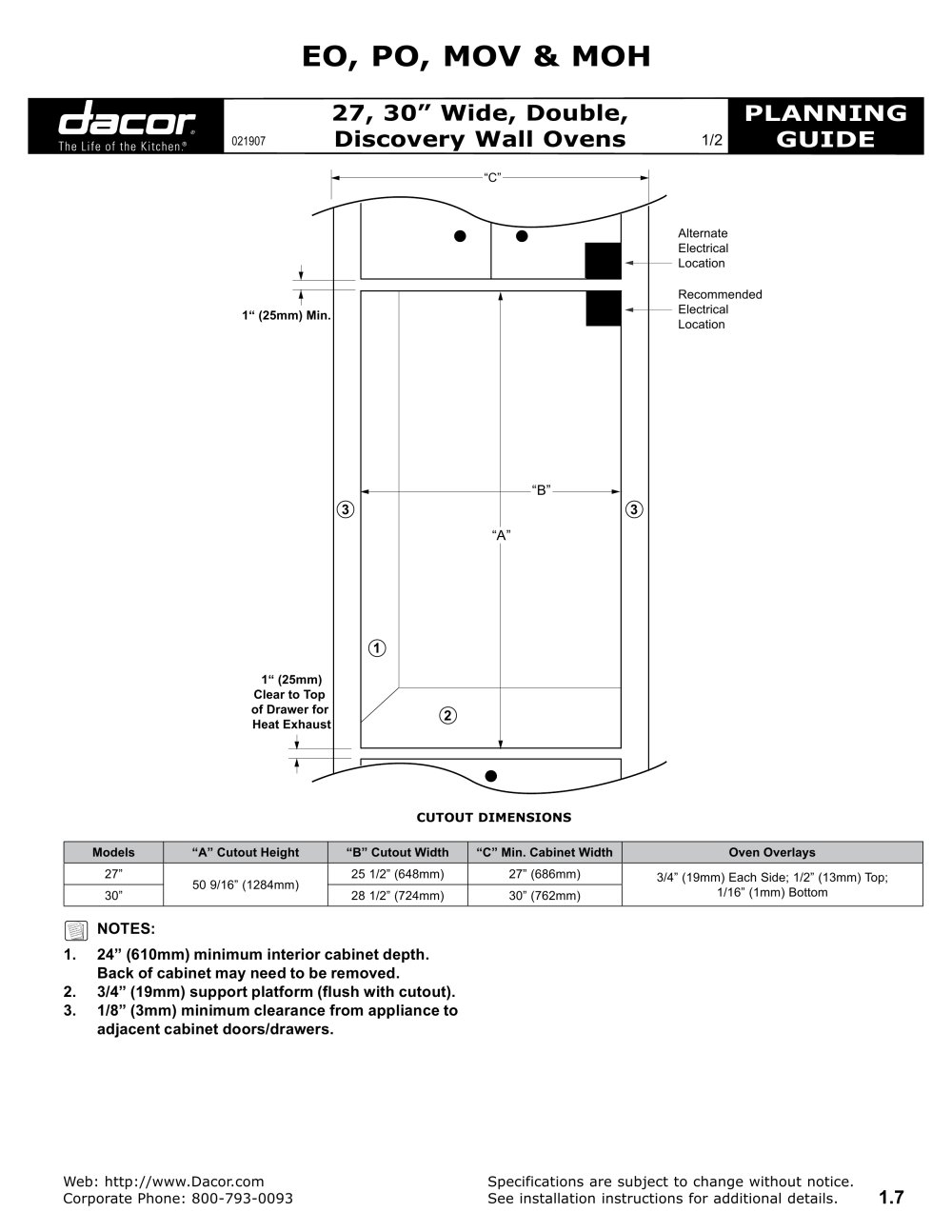

Cutout Dimensions: The minimum interior cabinet depth is 24 inches (610mm), with a 3/4 inch (19mm) support platform flush with the cutout. There must be a minimum clearance of 1/8 inch (3mm) from the appliance to adjacent cabinet doors/drawers. The cutout height for the 27-inch model is 50 9/16 inches (1284mm) and for the 30-inch model is 28 1/2 inches (724mm).
Overall Dimensions: The document provides detailed measurements for the oven handles and overall dimensions, including the Epicure™, Millennia™, and Preference™ models. The top view with the door open is also illustrated.
Installation Notes: The back of the cabinet may need to be removed to accommodate the oven. The recommended electrical location is specified, and an alternate location is provided.
See more
Catalog excerpts
ModelsԓA Oven Width EPICUREԙMILLENNIAPREFERENCEٙ3 11/16 (94mm)1 1/4Ԕ(32mm)1 1/4(32mm)1 1/4Ԕ(32mm)3 5/16 (84mm)2 5/16Ԕ (59mm) 2727Ԕ (686mm)3030Ԕ (762mm) Oven cabinetBack ofcontrol panel/oven door OVEN HANDLE DIMENSIONS OVERALL DIMENSIONS Dedicated CircuitRequiredTotalConnected LoadApproximateShipping Weight 240VAC,4-wire,60Hz, 40A(Breaker)8.6kW (37A)415 lbs. 22 3/4(578mm) TOP VIEW with DOOR OPEN >
