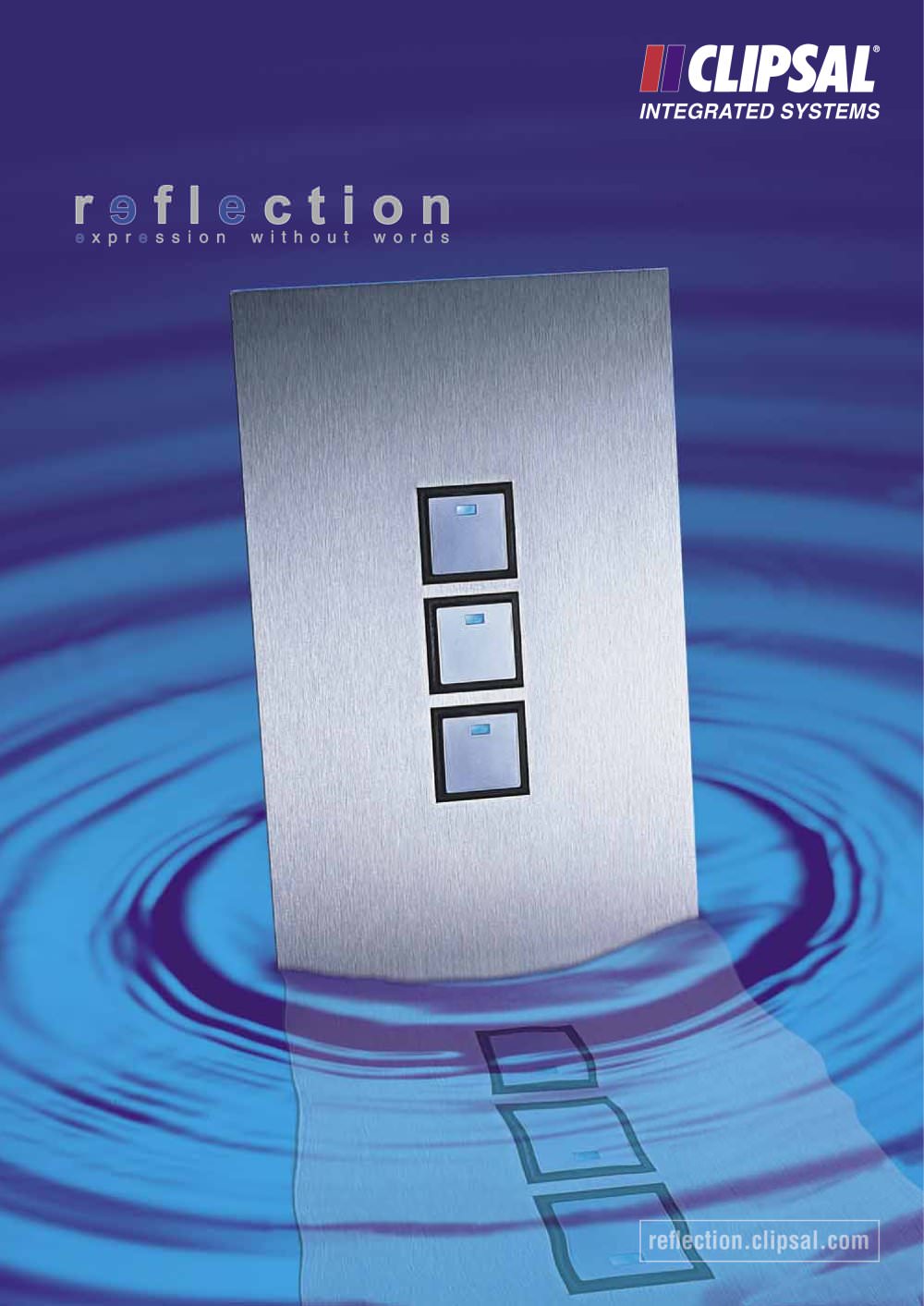

Reflection, expression without words

Reflection, expression without words

Product catalog summary

Introduction
The document introduces the Reflection range of metal plate switches by Clipsal Integrated Systems, highlighting its aesthetic appeal and advanced functionality.

Design and Aesthetics
The Reflection switches feature a screwless stainless steel switch plate with a flat and smooth surface. The switch buttons have inbuilt 'cool blue' LED status indicators, providing a modern and stylish look. The range is available in multiple configurations, including 1, 2, 3, 4, 6, and 8 gang options.

Functionality and Technology
Reflection switches are part of the Clipsal C-Bus system, offering intelligent automation capabilities. They can control various C-Bus output devices such as relays, dimmers, and analogue output units. Each key can be programmed for different functions, including toggle switch, dimmer control, and scene control. The switches can be programmed using the onboard 'Learn Mode' or C-Bus Installation Software.

Installation and Programming
The switch plate and buttons are easily removable for engraving or pad printing. Reflection units can be programmed before or after installation, and they retain programmed information even during power failures due to inbuilt non-volatile memory.

Manufacturing and Availability
Reflection switches are designed and manufactured in Australia by Clipsal Integrated Systems. The document provides contact information for various international offices and representatives.

Conclusion
The Reflection range combines sleek design with advanced automation technology, making it suitable for modern commercial and domestic environments.

Catalog excerpts

The modern interiors of today require a switch with a sleek, contemporary design that blends into any wall surface. A switch that is both stylish and discreet. The Reflection switch from Clipsal achieves this and more, through innovative design and the latest technology from Clipsal Integrated Systems. Constructed from smooth stainless steel and boasting a fl at rectangular design and the latest C-Bus automation technology, the Refl ection range is designed to make building management easier and look right at home in todays modern commercial or domestic environments. For years, metal plate switches...

Open the catalog to page 2

As part of the Clipsal C-Bus system, theres a lot more to the Refl ection switch than just a pretty face. Scratch beneath the surface and youҒll discover an intelligent automation system designed to deliver widespread control of the most advanced building automation system. The Refl ection range is capable of controlling any combination of C-Bus output devices, including, C-Bus Relays, Dimmers and Analogue output units. Each key is capable of being programmed to achieve various functions, including toggle switch, dimmer control, timer and many other customisable options. Up to 4 keys can be set...

Open the catalog to page 3

Products of Clipsal Integrated Sys tems Pty Ltd > Member of Clipsal Australia Holdings Group ABN 15 089 444 931 Head Offi ce 12 Park Terrace, BowdenSouth Australia 5007PO Box 103 HindmarshSouth Australia 5007Telephone (08) 8440 0500International +61 8 8440 0500 Facsimile (08) 8346 0845International +61 8 8346 0845Internet www.clipsal.com/cisE-Mail [email protected] CIS Technical Support Hotline 1300 722 247 International RepresentativesChina Clipsal China Limited Telephone +86 755 8237 5959 Offi ces in all StatesNSW Greece Schneider Electric AETelephone +30 69 4646 3200 Sydney (02) 9794 9200...
