Firetek Fulsh Mounted Smoke Detectors

Firetek Fulsh Mounted Smoke Detectors
4Pages

Catalog excerpts

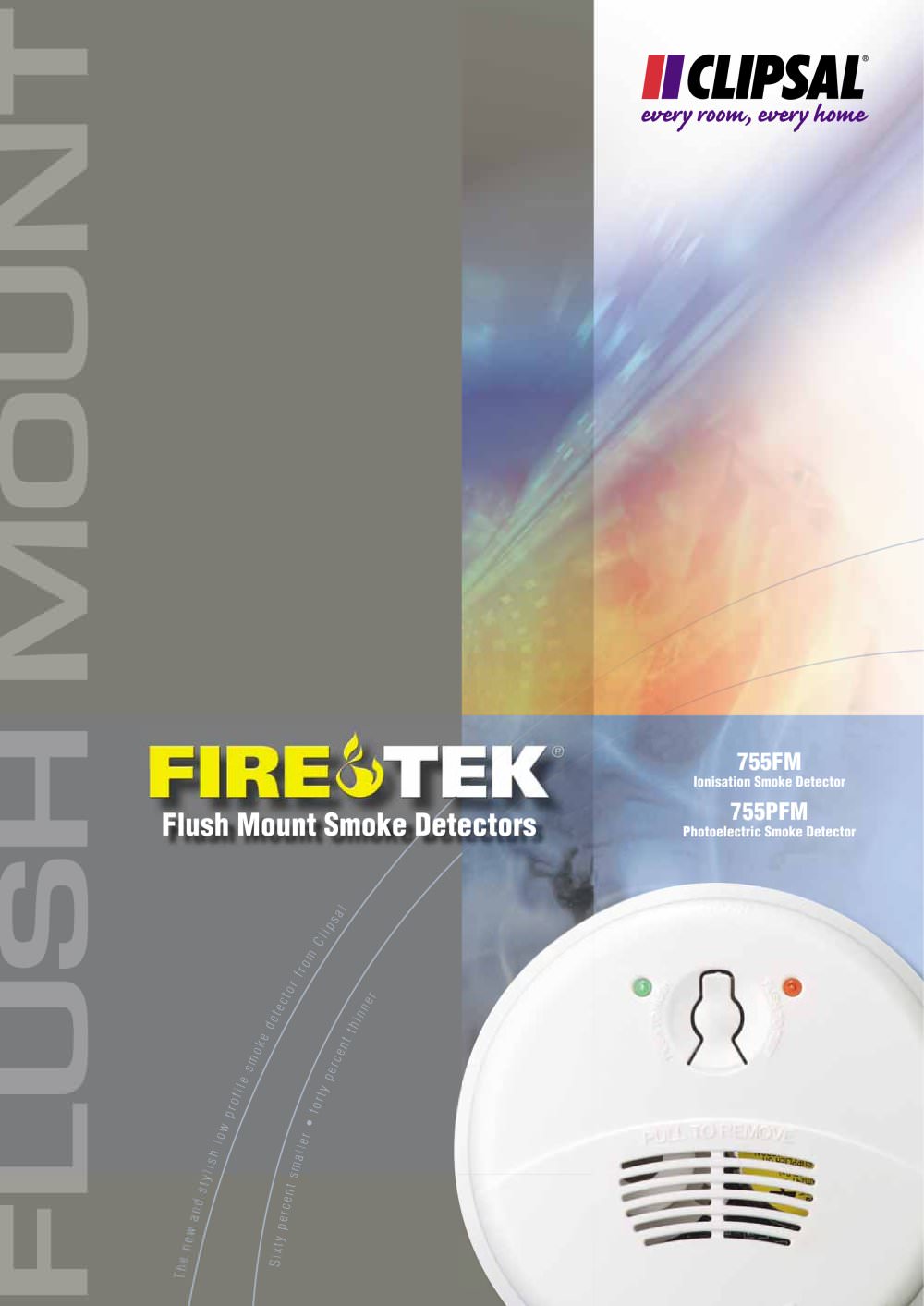

Firetek Fulsh Mounted Smoke Detectors - 2

ULTIMATE STYLE AND QUALITY sleek, low profi le design - provides a stylish and unobtrusive smoke detector that virtually blends into ceilingՕ designed to complement existing interior decor. Same size as a low voltage downlight fi tting large hush/test button to facilitate easy operation (e.g. with broom handle)Օ red and green LED indicators clearly display unit status from all angles interconnect facility allows multiple units to be connected together. When one unit detects smoke, all units will sound alarmՕ unit is protected from nuisance tripping via insect barrier mesh and an enclosed...

Open the catalog to page 2

Firetek Fulsh Mounted Smoke Detectors - 3

super low profi le, fully recessed design > Fixed mounting base mains powered, 220-240V a.c. 50Hz 35mA 9V d.c. battery backup (included) > Base is recessed within ceiling cavity and provides fi xed connection point for supply and interconnect cables. quick fi t-off/easy installation ultra reliable operation > Cover tilts away for easy access to wiring. loud alarm indication: 85dB at 3 metres interconnectable up to 40 units low battery indication (audible and visual) Hush button to silence unwanted alarms built in test facility to check unit function unit cannot be operated without 9V...

Open the catalog to page 3

Firetek Fulsh Mounted Smoke Detectors - 4

Catalogue Number 755PFM 755FM Primary Power Supply220-240V a.c. 50HzSecondary Power Supply9V d.c. Alkaline Battery BackupOperating Current35mADetector Type Photoelectric Chamber Ionisation Chamber Unit contains no Americurium 241, <1kBq radioactive material (1 microcurie)Horn Level85dB at 3 metres minimumVisual IndicatorsGreen LED for mains power ONRed LED for warning and low battery indicationLow Battery AlarmYes Audible and Visual AlertHush ModeYes Silences Unwanted Alarms, 10minutesInterconnect FacilityYes 40 Alarms over 150 metres maximumOverall Dimensions 90mm cut-out (suits 3.5踔...

Open the catalog to page 4
