Clipsal Homesafe Keyless Entry System

Clipsal Homesafe Keyless Entry System

Clipsal Homesafe Keyless Entry System

Product catalog summary
Overview: The Clipsal HomeSafe Keyless Entry System offers a convenient and secure method for unlocking doors without the need for traditional keys. It utilizes a uniquely coded transponder that, when held near the reader, automatically unlocks the door.
Key Features:
  • Unique Identification Codes: Each transponder has a unique code, allowing for easy addition or removal of users.
  • Easy Installation: Can be installed in existing or new doors, requiring an electric door strike but not new door handles.
  • Power Options: Operates on a 12VDC plug pack with a battery backup option, or can be powered by a security alarm panel.
  • Convenience: Ideal for up to 400 users, suitable for home offices, wine cellars, and for the elderly or disabled.
Technical Specifications:
  • Operating Voltage: 8 - 20V DC
  • Current Consumption: 50mA (idle)
  • Frequency: 134.2kHz
  • Card Read Range: 20cm
  • Card Code Combination: 264
  • Key Memory: 400 Users
  • Operating Temperature: -10° to +55°C
  • Size: 110 x 74 x 17.5 mm
  • Color: Steel Blue
Advantages:
  • Transponders are unique and cannot be duplicated.
  • Lost or stolen transponders can be easily deleted from the system.
  • Provides convenience in dark areas and for those with difficulty using keys.
  • Electronic strike controller can be placed inside to prevent tampering.
Product Range:
  • 5470: Keyless Entry System with cables and 2 Key Card Transponders
  • 5470KT: Key Card Transponders
  • 5470FB: FOB Transponders
  • 5470PP: Power Pack Transformer
  • 5470BC: Battery Charger Circuit
  • 5470S: Application Software
Contact Information: For more information, contact Clipsal Integrated Systems Pty Ltd at their head office in South Australia or through their international representatives in various countries.
See more

Catalog excerpts

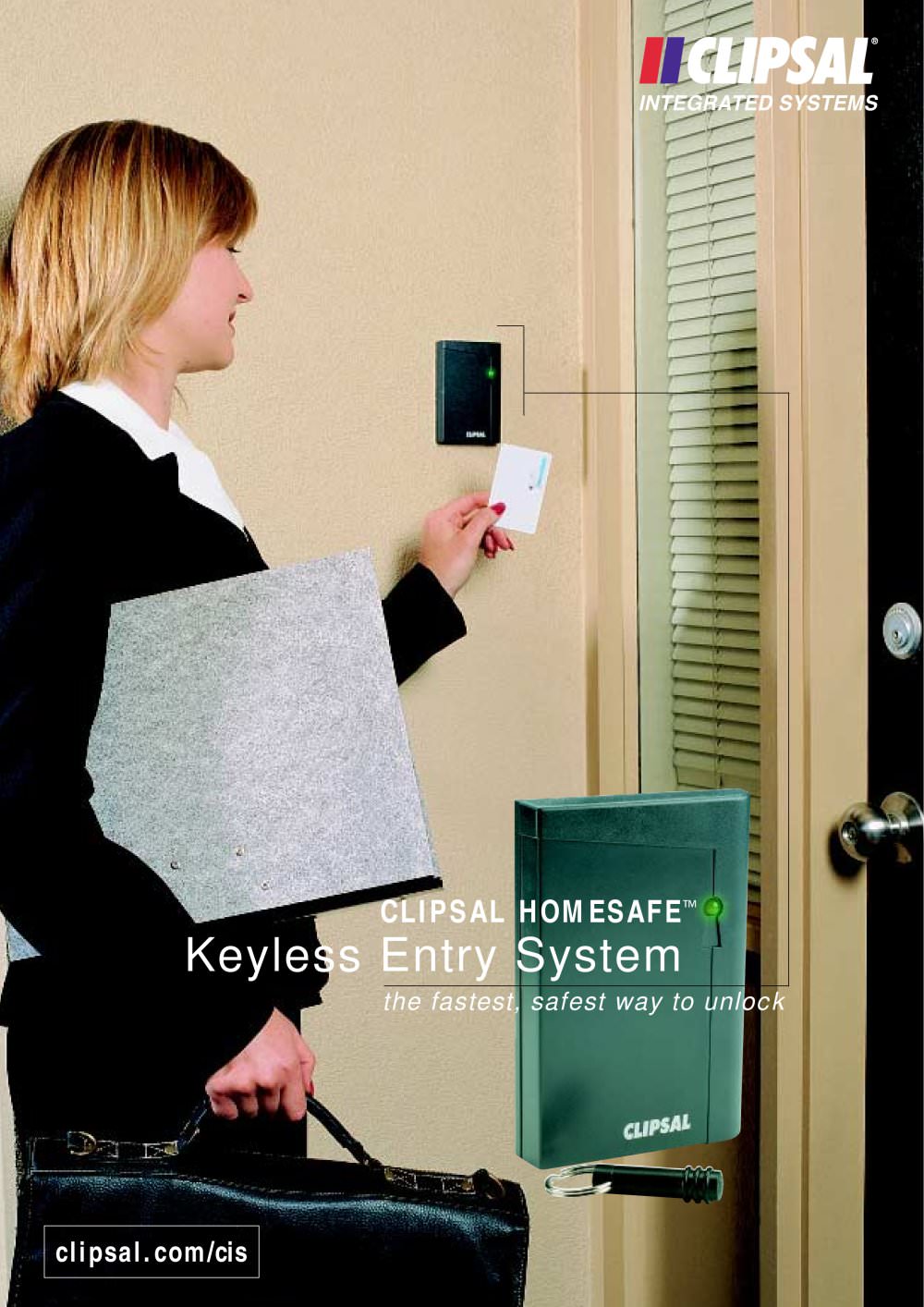

Clipsal Homesafe Keyless Entry System-1

the fastest, safest way to unlock clipsal.com/cis >

 Open the catalog to page 1
Clipsal Homesafe Keyless Entry System-2

Clipsals Keyless Entry System is quite simply the most convenient and secure way to unlock. No more fumbling around in the dark looking for keys and keyholes. Just hold a special, uniquely coded transponder close to the reader and the door unlocks automatically.The system can provide access to up to 400 people. It is suitablefor use in home offices, wine cellars and studies, and ideal for the elderly or people with a disability. Every transponder has its own unique identification code. Usersmay be added or deleted from the system at any time.The system automatically registers each attempt to...

 Open the catalog to page 2
Clipsal Homesafe Keyless Entry System-3

Each FOB or card transponder is uniqueand cannot be duplicated.׷If the transponder is lost or stolen it cansimply be deleted from the system without the need to replace locks, etc.Cards are ideal for dark areas wherefinding keys and the door lock can be difficult.׷Suitable for the elderly and disabled whomay have trouble using conventional keys.Up to 400 users can be connected to the system. ׷The electronic strike controller can be placedinside the building or office to prevent tampering.Provides convenience and privacy at home,especially in areas like wine cellars and home offices. The Keyless...

 Open the catalog to page 3
Clipsal Homesafe Keyless Entry System-4

This product range is part of the A product of Clipsal Integrated Systems Pty Ltd Malaysia > ACN 089 444 931 ABN 15 089 444 931 Clipsal Integrated Systems Sdn BhdLot 26, Jalan Pengapit 15/19 Shah Alam Industrial Estate40000 Shah AlamSelangor Darul Ehsan West MalaysiaTelephone(3) 5519 1122Facsimile(3) 5512 3155 [email protected] Head Office 12 Park Terrace, BowdenSouth Australia 5007PO Box 103, HindmarshSouth Australia 5007 Telephone (08) 8269 0560International +61 8 8269 0560Facsimile (08) 8346 0845International +61 8 8346 0845Internet clipsal.com/cisE-Mail [email protected] Singapore...

 Open the catalog to page 4
