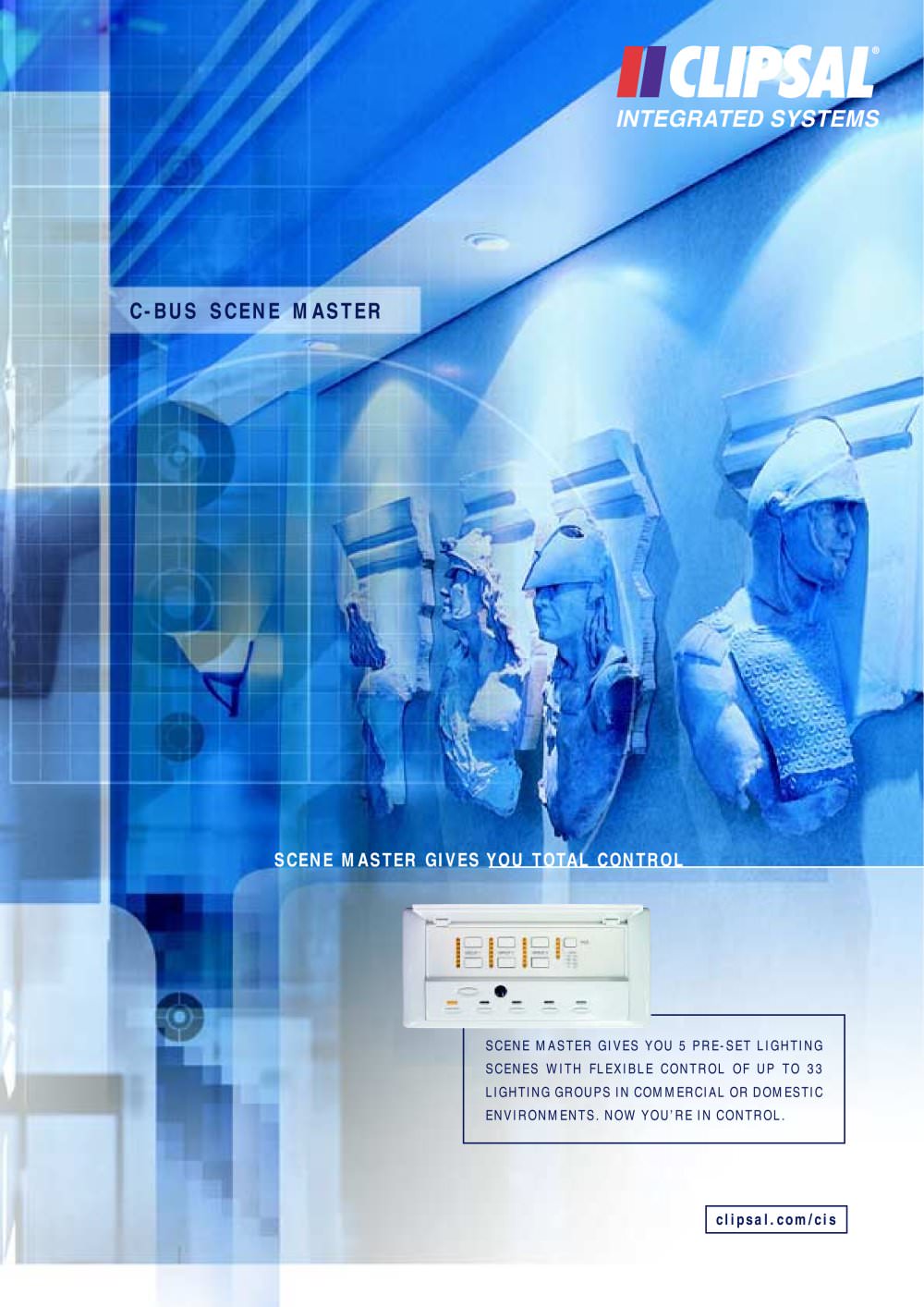

C-Bus Scene Master
13Pages

SCENE MASTER GIVES YOU 5 PRE-SET LIGHTINGSCENES WITH FLEXIBLE CONTROL OF UP TO 33LIGHTING GROUPS IN COMMERCIAL OR DOMESTIC ENVIRONMENTS. NOW YOURE IN CONTROL. clipsal.com/cis >

Now Youre in Control 1 - 2 Setting Spectacular Scenes 1 - 2 How Scene Master can work for you 3 - 4 Using Scene Master - Commercial Application 5 Using Scene Master - Residential Application 6 Schematic Overview of connecting a C-Bus system 7 - 8 How to Specify Scene Master 9 - 10 Scene Master Technical Details 14 - 16 Scene Master Controls Layout 15 > Scene Master Mechanical Details 16 The Complete Clipsal C-Bus System 17 - 20 Input UnitsOutput Units System Support UnitsSoftware Tools SWITCHING AND DIMMING PATTERNS ARESTORED FOR YOUR CONVENIENCE SO THAT ACONFERENCE ROOM, FOR EXAMPLE, COULD...

WITH SCENE MASTER YOU HAVE CONTROL OF LIGHTING IN JUST ABOUT ANY KIND OFMULTI-PURPOSE AND OPEN PLAN AREA YOU CAN THINK OF. COMMERCIAL OR DOMESTIC,YOU CAN ILLUMINATE ANY AREA PRECISELY AS YOU WANT IT AT THE TOUCH OF A BUTTON. WhatҒs more, Scene Master stores up to five lightingscenes that you can change whenever you want usingthe easy to understand display.Its even easier with a hand held infra-red control. AndScene Master can control 33 groups of lighting.The push-button unit gives walls a touch of style. Andbecause Scene Master uses sophisticated automation technology you can integrate it...

Switching and dimming patterns are stored for your convenience so that aconference room, for example, could be programmed to instantly change the mood and suit the occasion. At the office, typical scenes might include:1.a meeting scene4.a luncheon scene2.a presentation scene5.a formal evening function scene3.a video presentation scene6.and the Master Off switch > PUT SIMPLY, SCENE MASTER MAKES IT EASIER TO CONTROL LIGHTING.THE EASY TO USE CONTROL PANEL AND INFRA-RED REMOTE CONTROL ALLOW YOU TOMAKE THE MOST OF ANY MULTI-PURPOSE AREA. AT THE PRESS OF A BUTTON YOU CANACCESS FIVE LIGHTING...

Scene Master is connected via C-Bus to two fourchannel relay units, one four channel 2 Amp dimmer,one four channel relay and one 0-10V analogueoutput unit. The lighting groups connected to C-Bus outputs are assigned to the scene buttons andproduce six different lighting patterns within the area. The lighting groups connected toC-Bus outputs are assigned to the scene buttons and produce sixdifferent lighting patterns within the house. Scene Master is connected via C-Bus to two four channel relay units, one four channel 2 Amp dimmerand one eight channel 1 Amp dimmer. 5 6 >

THIS IS TO INDICATE THE PRINCIPLES OF C-BUSCONNECTIONS. PLEASE REFER TO INDIVIDUALEQUIPMENT TECHNICAL DATA FOR FULL DETAILSOF INSTALLATION AND ELECTRICAL CONNECTIONS. 7 8 >

TO OBTAIN A COPY OF THIS SPECIFICATION IN ELECTRONIC FORMAT (E.G., ASCII TXT FILE OR MICROSOFT WORD DOC FILE), PLEASE CONTACT YOU LOCAL CLIPSAL REPRESENTATIVE. > The wall-mounted controller includes separate buttons to allow the user to individually dim threeseparate groups. The controlled outputgroupsare programmable via a software assignable addressing system and are not limited to anyhard wired groups of outputs. > A wall mounted Lighting Scene Controller isprovided to allow the user of the system toaccess lighting in the nominated areas.Switching,dimming and scene control are provided...

The unit has a בSetup Mode which allowsthe Lighting Controller to ґlearn required lighting scenes without the use of a computer. A sceneis learnt by initiating Setup Mode, manuallysetting a scene via the Scene Controller and other system input devices (e.g. wall switches)and assigning a load to a preset button. > A special fade rate is associated with the Master Off button and is indicated following a press of theMaster Off button. SCENE MASTER CONTROLLER Catalogue Number 5035NIRS > C-Bus Supply Voltage 15-36V DC @ 36mA required for normal operation.Does not source current to the C-Bus...

SCENE MASTER INFRA-RED REMOTE CONTROL Catalogue Number 5035TX Supply Voltage 3V DC required for normal operation.Transmission range reduces with battery voltage. Battery Lithium Coin Battery CR2025 (or equivalent) Battery Shelf Life Approximately 1 Year Infra-red Transmission Range < 15m at 90 to Scene Master Control Unit Infra-red Transmission Protocol Standard NEC IR Code Compatible Control Functions 8 Membrane Buttons5 Preset Scene ButtonsMaster Off Button Multi-Zone Up/Down Dim Buttons Dimensions 86 x 54 x 8mm (LxWxD) Weight 28g Colour Black INFRA-RED REMOTE CONTROLUNIVERSAL MOUNTING...

Total unit capacity 20A Provides C-Bus control of electronic DSI digital ballasts > Available as 4 channels x 5A, 2 channels x 10Aand 1 channel x 20A > Controls up to 100 DSI ballasts per channel > Suitable for resistive loads (incandescent lamps) and inductive Low Voltage lighting transformers(e.g., 12V dichroic lamps). De-rating factorapplicable for electronic transformers > Channel status indicators > Faulty lamp/ballast detection and indication > DSI channel overload detection and indication Local manual override buttons > Dimming setting for each channel is individually controllable >...

Data gateway between C-Bus networks. > Allow isolation of networks whilst maintaining allcommunications, and are also used to amplify thecontrol signals in large installations. NETWORK BRIDGE POWER SUPPLY UNIT C-BUS SOFTWARE TOOLS C-GATE SOFTWARE APPLICATION C-LUTION GRAPHICAL USERINTERFACE SOFTWARE APPLICATION > Converts 240V a.c. input to C-Bus 36V d.c.,maximum C-Bus current of 350mA. > C-Gate is the gateway software program which al-lows third parties to integrate with the C-Bus system > High ac impedance at C-Bus communications frequencies > C-Gate server software can be embedded into...

Patented A product ofClipsal Integrated Systems Pty Ltd > ABN 15 089 444 931 ACN 089 444 931 12 Park Terrace, BowdenSouth Australia 5007PO Box 103 HindmarshSouth Australia 5007Telephone (08) 8269 0560International +61 8 8269 0560Facsimile (08) 8346 0845International +61 8 8346 0845Internet clipsal.com/cisE-Mail Head Office International Enquiries Singapore Head Office Export DepartmentTelephone+61 8 8269 0587Facsimile+61 8 8340 7350E-Mailexport@clipsal.com.au Clipsal Integrated Systems Pte LtdNo. 5 Fourth Chin Bee RoadSingapore619699Telephone(65) 266 1998Facsimile(65) 266...
