EOLO

Product catalog summary

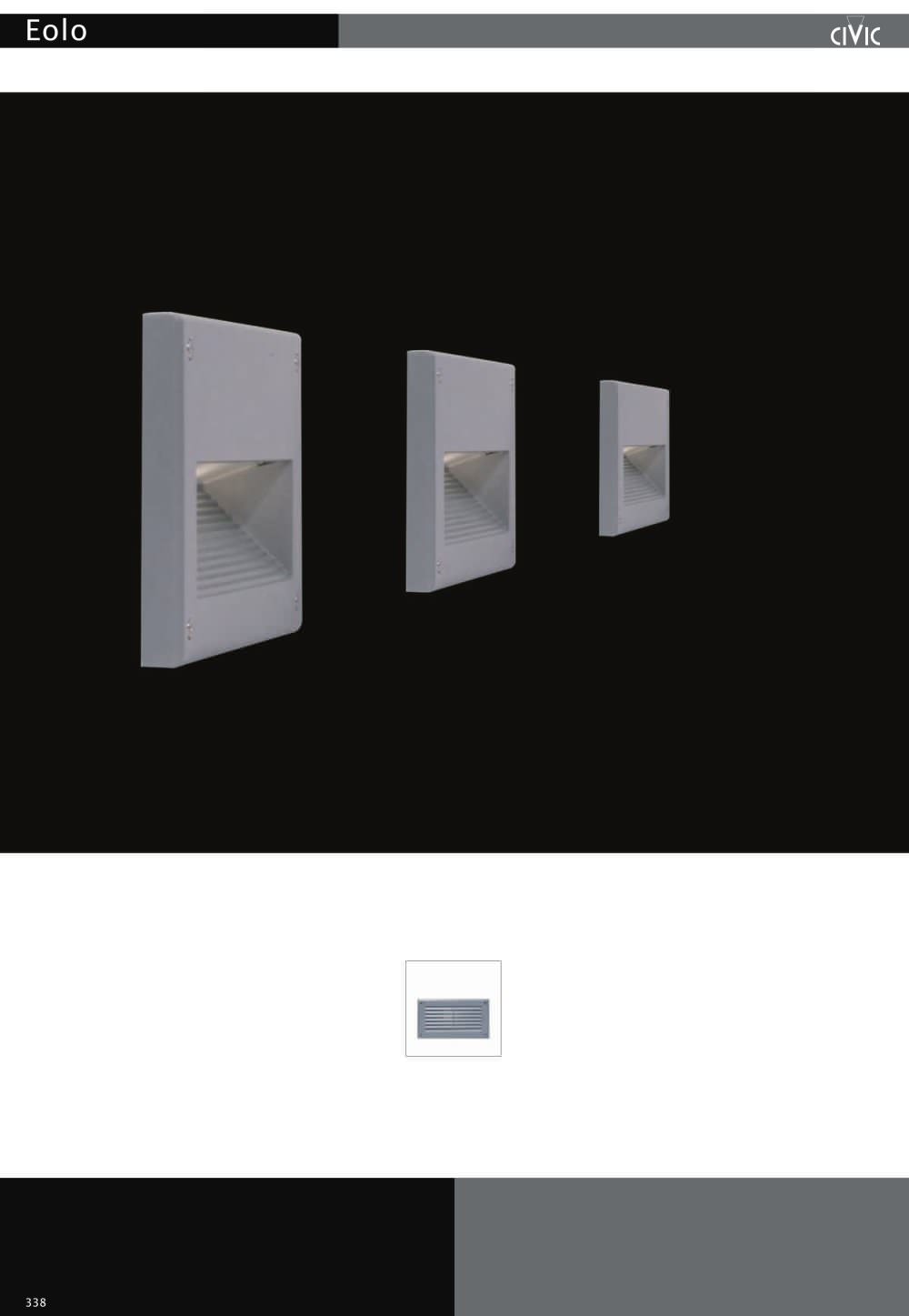

Product Overview: Eolo is a wall recessed lighting fixture designed for outdoor use. It is constructed from die-cast aluminium and features a glass diffuser. The fixture can accommodate either an incandescent or a compact fluorescent lamp, and it includes the necessary recessed housing for installation.

Specifications: The Eolo lighting fixture is available in different versions to support various lamp types and configurations:

JEN.13MRA: Designed for compact fluorescent lamps, includes an electromagnetic ballast. Compatible with TC-D - G24 d-1 1x13W lamps.
JEN.60MRA: Designed for incandescent lamps. Compatible with A60 - E27 1x60W lamps.
JEN.13MRVI: Features a mask for asymmetric lighting with compact fluorescent lamps, includes an electromagnetic ballast.
JEN.60MRVI: Features a mask for asymmetric lighting with incandescent lamps.
JEN.13MRG: Includes an anti-glare louver for compact fluorescent lamps, with an electromagnetic ballast.
JEN.60MRG: Includes an anti-glare louver for incandescent lamps.

Performance and Dimensions: The fixture has a rectangular shape with dimensions of 130mm x 230mm x 20mm. It provides an asymmetric light distribution with a maximum luminous intensity of 94.80 cd/klm and a total luminous flux of 900 lm. The efficiency is noted at 18.20%.

Color Options: The fixture is available in multiple RAL colors, including RAL9010, RAL9005, RAL9006, and RAL7035.

Additional Information: The fixture is rated IP54, indicating protection against dust and water splashes. It is suitable for various environmental conditions and includes features like an electromagnetic ballast for certain models.

Catalog excerpts

Eolo è un apparecchio di illuminazione da incasso da parete per esterni, in alluminio pressofuso e diffusore in vetro. Può ospitare una lampada a incandescenza o fluorescente compatta. La cassaforma per la posa in opera è inclusa. Eolo is a wall recessed lighting fitting for outdoor use in die cast aluminium with a glass diffuser. It can host one incandescent or compact fluorescent lamp. Recessed housing included. Eolo est un appareil d’encastrement mural pour l’extérieur réalisé en aluminium pressé et diffuseur en verre. Il peut accueillir une lampe à incandescence ou fluorescente compacte....

Open the catalog to page 3

JEN.13MRA Versione per lampada fluorescente compatta. Reattore elettro - magnetico incluso. Version for compact fluorescent lam p. Electromagnetic ballast included. Version pour lampe fluorescente compacte. Ballast electroma - gnétique inclus. TC-D - G24 d-1 1x13W JEN.60MRA Versione per lampada a incandescenza. Version for incandescent lamp. Version pour lampe incandescente. A60 - E27 1x60W JEN.13MRVI Versione con visiera per luce asimmetrica per lam pada fluorescente compatta. Reattore elettromag netico incluso. Version with mask for asymmetric lig hting for compact fluore - scent lamp. Electromag...

Open the catalog to page 4

EOLO

EOLO
