VERTICAL SHOWCASES Refrigeration solutions with a design focus.

BfcuptaTJCC] Packed Cheese and Cured meet dairy products meats Cold deli Milk Beverage Champagne White wine Red wine

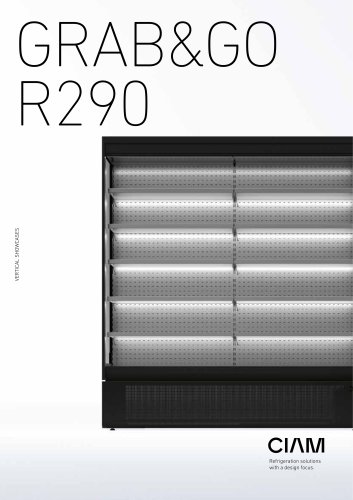

The new Grab&Go R290 line of refrigerated cabinets is designed to meet the market's growing need for plug-in refrigerated equipment, capable of maintaining both positive and negative temperatures, using the gas R290.

Grab&Go R290 TP Positive temp. Grab&Go R290 TP Positive temp. Open

Grab&Go R290 TN Negative temp.

GRAB&GO R290 POSITIVE TEMPERATURE The entire range offers a wide dimensional choice with four different lengths that can be channeled together to meet all design requirements. The design can be customized by choosing between double-glazed sides (20 mm each) included as standard, or solid sides (30 mm each). Grab&Go R290 at positive temperature Roller blind in micro-fabric on TP Open version

Dimensions Lengths: 940 - 1240 - 1840 - 2440 mm Depth: 790 mm Height: 2050 mm

GRAB&GO R290 TP, POSITIVE TEMPERATURE, ECO DOORS Double-glazed Eco doors and standard RAL 7021 screen printing

1240 mm 940 mm Grab&go R290 TP, positive temperature, eco doors

GRAB&GO R290 NEGATIVE TEMPERATURE 790 Grab&Go R290 negative-temperature refrigerated cabinets are available in three different lengths, which also include the thickness of the side panels. The latter are always supplied solid as standard. The intermediate shelves are adjustable and made of plastic-coated steel painted RAL 7036 color. Dimensions Lengths: 700 – 1400 – 2100 mm Depth: 790 mm Height: 2050 mm Grab&Go R290 negative temperature in the dimensions offered

Interior Grab&Go R290 Negative Temperature RAL 7044, Shelf T5 ED Premium triple-glazed door with standard RAL 7021 screen printing

Positive-temperature refrigerated cabinets can be channeled Sequential channeling in aesthetic continuity without an intermediate side panel, — while all models in the range can be placed sequentially next to each other as they share the same depth, height, and technical compartment dimensions.

Channeling in aesthetic continuity without intermediate side panel

The shelf types available for this family of refrigerated cabinets are differentiated according to refrigeration. The standard shelf type for positive-temperature models is bent steel in a polished finish; shelves, as well as interiors, can be customized with epoxy powder coatings, glass with stainless steel frame or wood. GRAB&GO R290 OPEN TP GRAB&GO R290 ECO TP Shelf Inox Standard Bent stainless steel shelf; standard finishes: polished steel; optional finishes: powder coating. Dim. 600x450 mm 600x350 mm Natural oak solid wood shelf; optional finishes: solid wood on request. Shelf_T5 GL Glass...

The standard shelf type for negative-temperature models is in plastic-coated steel painted RAL 7036. Shelves, as well as interiors, can be customized with epoxy powder coatings. Shelf_T5 ED Plastic-coated steel shelf RAL 7036 Dim. 600x420 mm Shelf Inox Standard Bent stainless steel shelf; standard finishes: polished stainless steel; optional finishes: powder coating. Dim. 600x420 mm

The new refrigeration design includes a wall ventilation system. This made it possible to increase the volume of the refrigerated compartment for larger product display, while maintaining the total height of the refrigerator and including an indoor condensing unit with R290 gas.

Electronic Tangential Fans with adjustable speed and low noise impact <25 dB(a) Two types of systems are provided: one for positive temperature, with electric defrosting, and one for negative temperature, with hot gas defrosting. In addition, the fans used are electronic tangential.

These systems, based on a capillary system, are available exclusively in a plug-in version with an indoor condensing unit, using the gas R290. In order to ensure perfect cleaning and maintenance of the technical compartment, the latter is equipped with an easy cleaning filter. Easy cleaning system (air filter cleaning for the condenser of the motor unit)

Micro-perforated sheet metal technical compartment

In the positive-temperature models, lighting is provided by diffused LEDs light fixture with a neutral shade of 3000°K, positioned under each display shelf. The light fixtures are connected by a practical quick-connect cable, allowing the shelves to be adjusted. Indirect lighting with diffused LEDs, warm gradation 2700°K (on request) In negative-temperature models, lighting is vertically integrated and placed flush with the wall in the sides and vertical uprights. Again, a no-spot LED with a 3000°K gradation is used.

On request, cooler (4000°K) or warmer (2700°K) gradations can also be provided as an additional option. Light fixture 3000°K diffused LEDs Indirect lighting with 3000°K diffused LEDs as standard

Electronics CIAM CONNECT Ciam Connect is the integrated solution for remotely monitoring and managing all functions of CIAM products. All features can be activated and monitored from a simple smartphone, tablet, or PC. It is also possible to integrate the solution directly into your company's management system. Connectivity This SIM data communication device allows remote control of the showcase without having to connect it to Wi-Fi or the local internet network. Ciam Connect System Remote control Through the Cloud portal you can interact with the showcase, by downloading the operating graphics,...

Touch control unit as standard As standard, the control unit is of the Touch type and is integrated into the basement, on the right side of the operator. A product label is located inside the refrigerator, it has a QR code from which user and maintenance manuals and other technical content related to the product can be downloaded.

Plug-in refrigerated vertical cabinet at positive temperature (+2/+8°C) | molded heat-insulated tank made of polyurethane coated with s/s | fan ventilated refrigeration system on all display levels | automatic defrost | built-in hermetic condensing unit with gas R290 | touch control panel | double glazing sides with black RAL 7021 screen printing | roller blind in micro-fabric | RAL 7021 powder-coated steel exterior cladding | polished steel interior sheets | pressure-folded steel shelves adjustable on rack rod | lighting on all shelves with 3000°K diffused LED | technical compartment and base...
