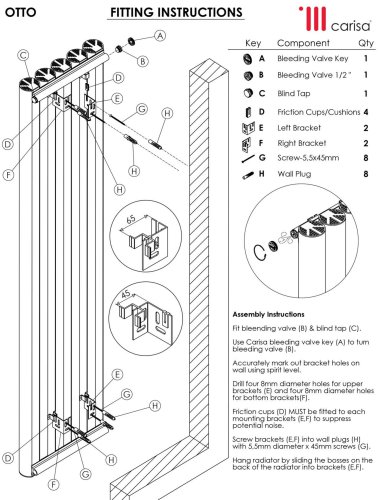

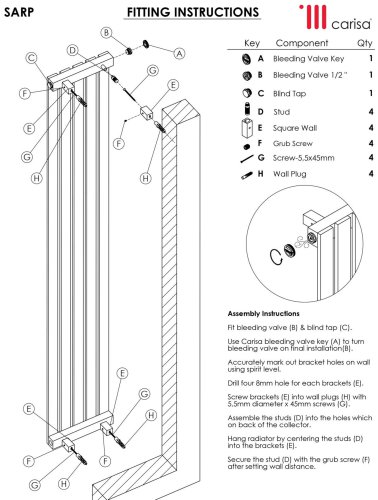

FITTING INSTRUCTIONS carisaKey Component Qty A Bleeding Valve Key 1 Fit bleending valve (B) & blind tap (C). Use Carisa bleeding valve key (A) to turn bleeding valve (B). Accurately mark out bracket holes on wall using spirit level. Drill four 8mm diameter holes for upper brackets (E) and four 8mm diameter holes for bottom brackets(F). Friction cups (D) MUST be fitted to each mounting brackets (E,F) to suppress potential noise. Screw brackets (E,F) into wall plugs (H) with 5,5mm diameter x 45mm screws (G). Hang radiator by sliding the bosses on the back of the radiator into brackets (E,F).

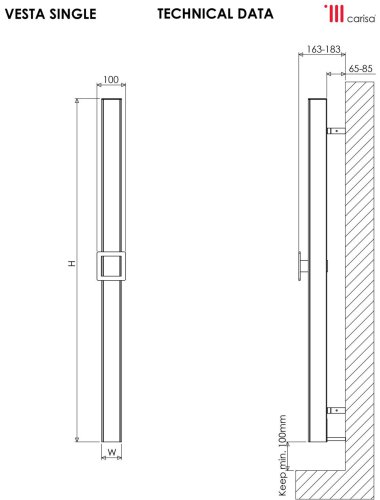

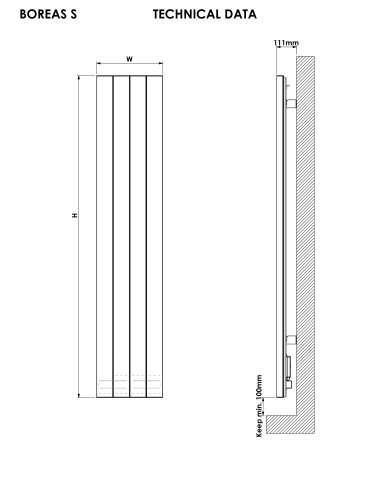

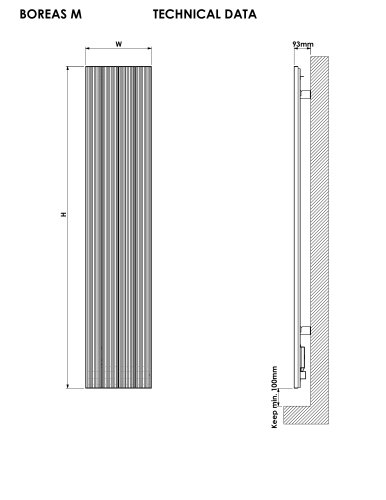

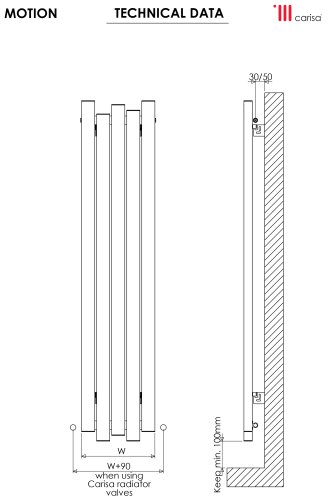

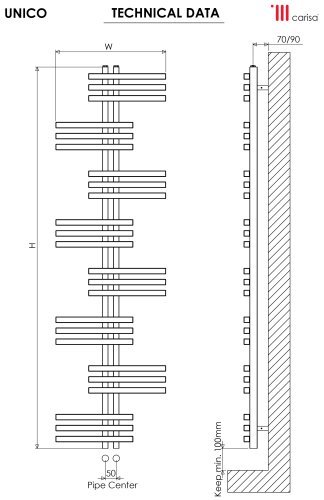

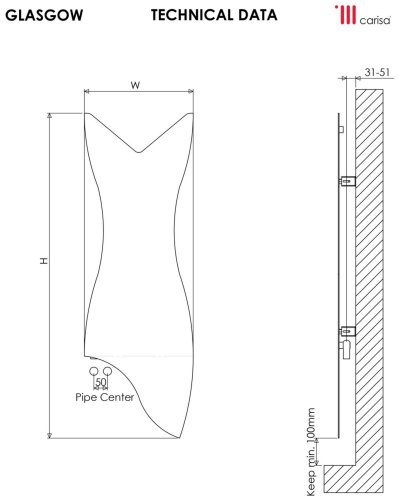

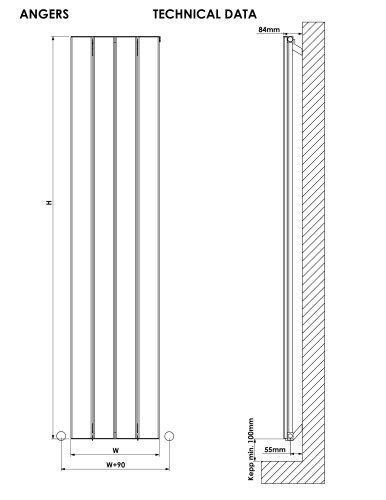

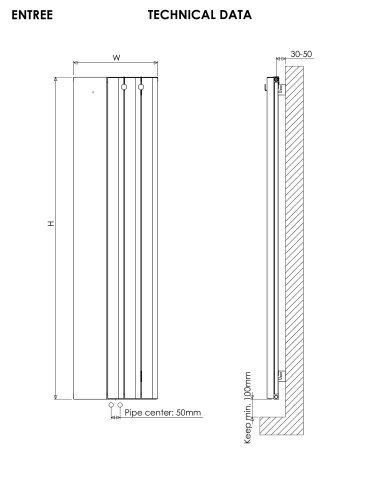

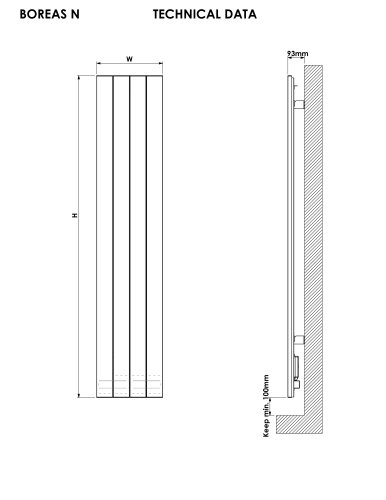

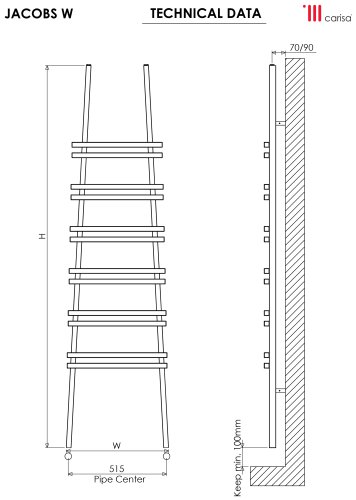

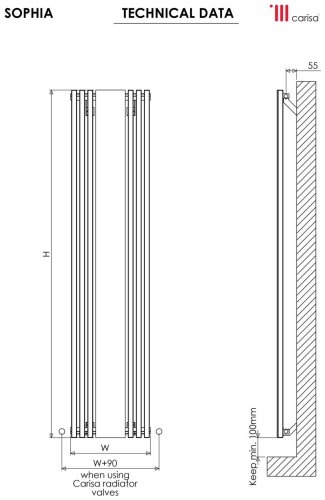

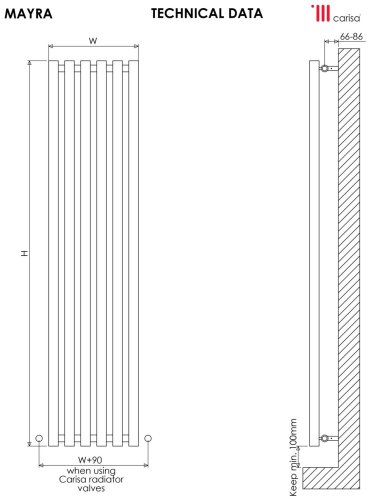

TECHNICAL DATA *|||carisa-
