HumiSteam

Product catalog summary

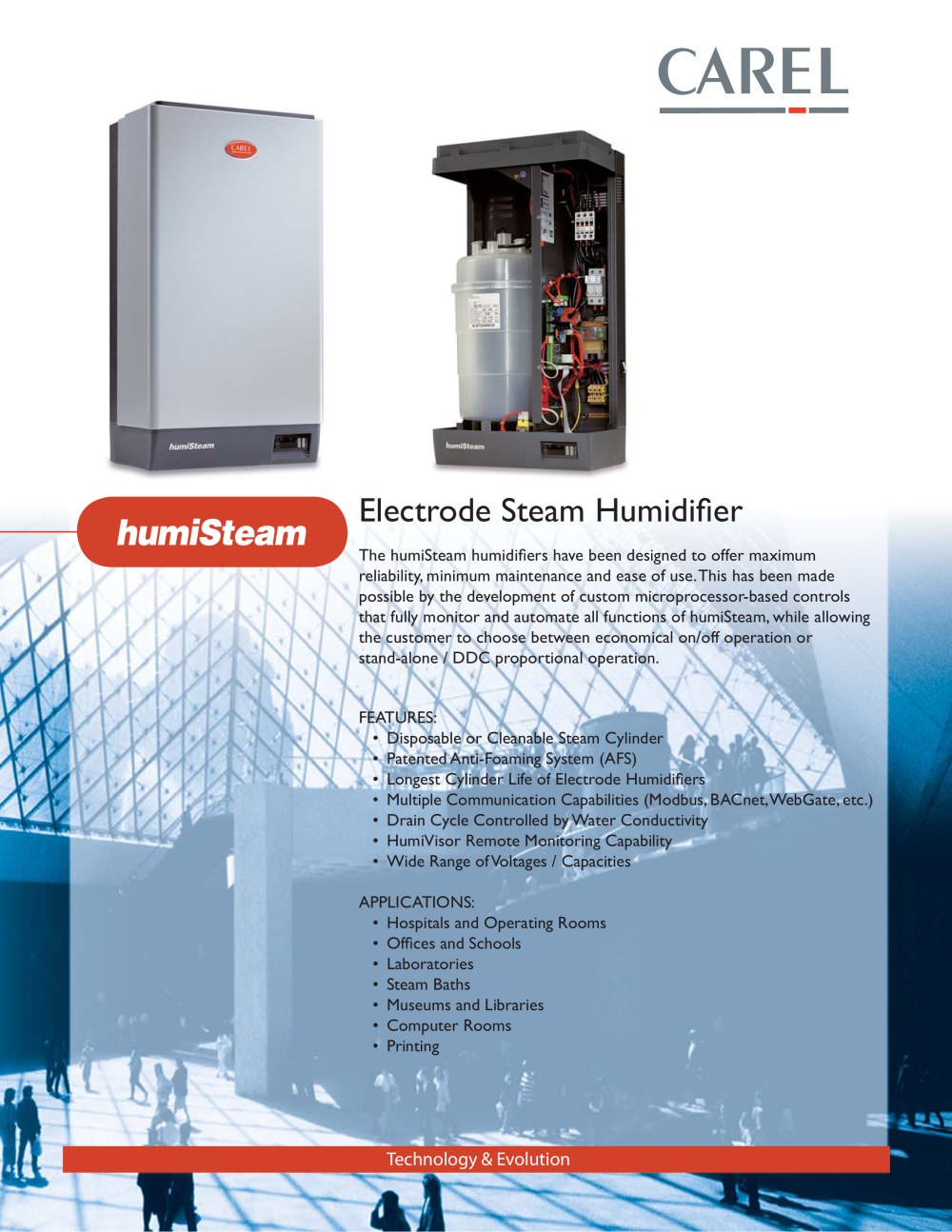

Overview: The humiSteam Electrode Steam Humidifiers are designed for reliability, minimal maintenance, and ease of use. They feature microprocessor-based controls for full automation and offer options for economical on/off or proportional operation.

Features:

Disposable or cleanable steam cylinder
Patented Anti-Foaming System (AFS)
Longest cylinder life among electrode humidifiers
Multiple communication capabilities (Modbus, BACnet, WebGate, etc.)
Drain cycle controlled by water conductivity
HumiVisor remote monitoring capability
Wide range of voltages and capacities

Applications: Suitable for use in hospitals, operating rooms, offices, schools, laboratories, steam baths, museums, libraries, computer rooms, and printing facilities.

Model Selection: The model number is determined by steam output, control type, power supply, version number, cylinder type, and optional equipment. For example, model UE 025 H D 0 U 1 0 indicates a humiSteam Electrode Humidifier with specific features and capacities.

Technical Specifications:

Steam output ranges from 3.3 lbs/hr to 286 lbs/hr depending on the model and power supply.
Power supply options include 208/1, 230/1, 208/3, 230/3, 460/3, and 575/3.
Control voltage is 24 VAC 50/60 Hz.
Ambient conditions: 34-140°F (1-40°C), 0-80% RH, up to 8” W.C. duct static pressure.
Feed water conditions: 15-116 psi, 125-1250 MicroMhos conductivity.

Physical Dimensions: Dimensions vary by model, with heights ranging from 24.4” to 37.2”, widths from 14.4” to 45.5”, and depths from 10.8” to 17.9”.

Water and Drainage: Maximum water feed rates range from 0.16 gpm to 4 gpm, with drain rates up to 12 gpm. Drain connections require specific piping sizes.

Ventilated Steam Distributors: Models VSDU0A and VRDXL are available, each with specific power, air volume, and noise specifications.
