GasSteam

Product catalog summary

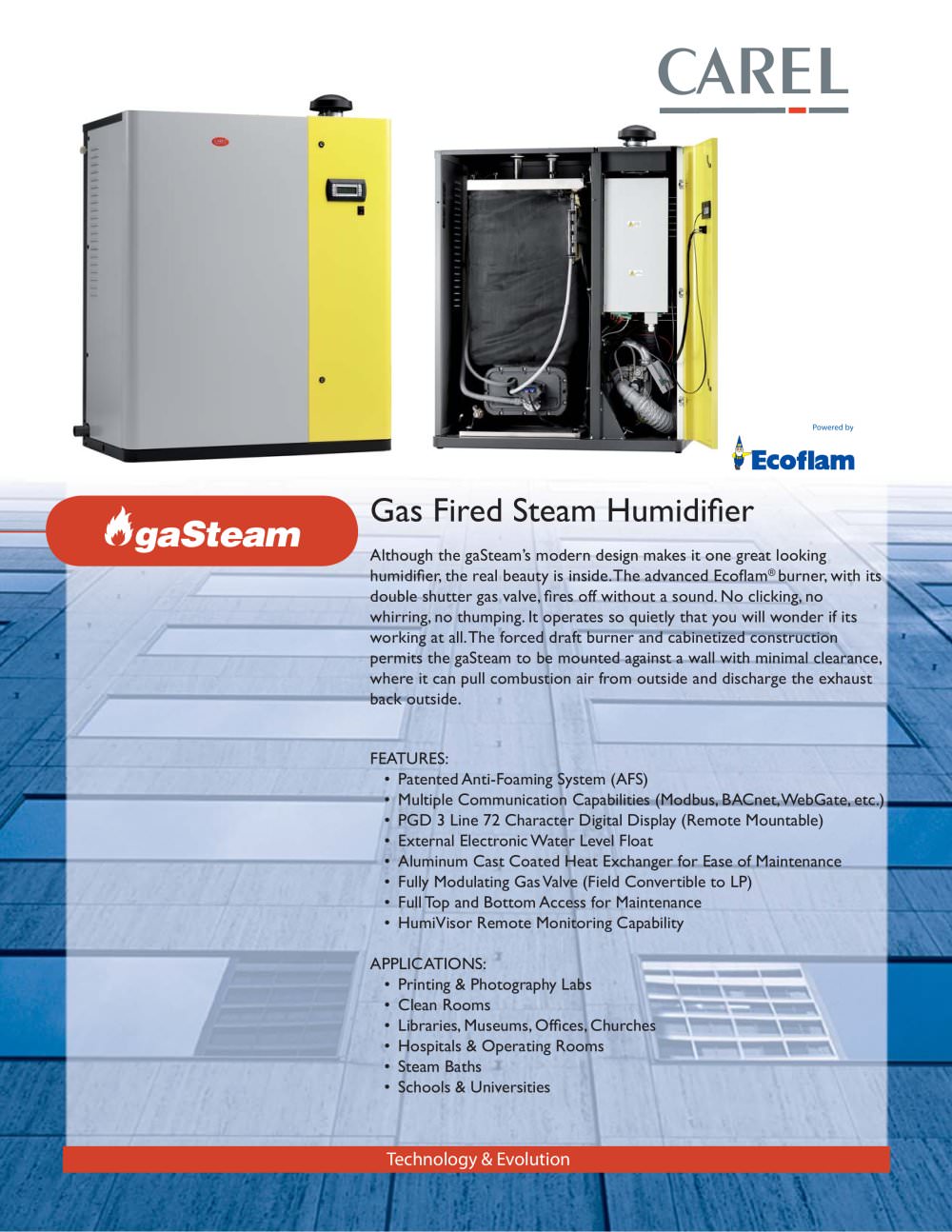

Overview: The document provides detailed information about the Gas Fired Steam Humidifier, highlighting its advanced features, applications, and technical specifications. The humidifier is designed for quiet operation and efficient performance, suitable for various environments.
Features:
  • Patented Anti-Foaming System (AFS) to prevent foam formation.
  • Multiple communication capabilities including Modbus, BACnet, and WebGate.
  • PGD 3 Line 72 Character Digital Display, which is remote mountable.
  • External electronic water level float for accurate monitoring.
  • Aluminum cast coated heat exchanger for easy maintenance.
  • Fully modulating gas valve, convertible to LP gas.
  • Full top and bottom access for maintenance purposes.
  • HumiVisor remote monitoring capability.
Applications: The humidifier is suitable for use in printing and photography labs, clean rooms, libraries, museums, offices, churches, hospitals, operating rooms, steam baths, schools, and universities.
Technical Specifications:
  • Model Selection: UG045, UG090, UG180 with capacities of 100 lbs/hr, 200 lbs/hr, and 400 lbs/hr respectively.
  • Dimensions: Height - 47.3”, Width - varies by model, Depth - varies by model.
  • Weight: Varies by model, with operating weights ranging from 408 lbs to 950 lbs.
  • BTU Input: Ranges from 120,490 BTU/hr to 444,000 BTU/hr.
  • Types of Gas: Compatible with natural gas, propane, and butane.
  • Steam Outlets: Varies by model, with up to 4 outlets.
  • Control Voltage: 24 VAC 50/60 Hz.
  • Maximum Steam Pressure: 0 - 2000 Pa.
  • Feed Water Requirements: 15 - 120 psi, with a hardness of <= 24 grains (418 ppm).
  • Water Flow: Instant maximum feed water flow of 2.62 gpm and drain water flow of 8 gpm.
  • Room Distribution Units: Required for each steam outlet, with specifications including power, air volume, height, weight, and noise level.
Contact Information: CAREL USA, 385 South Oak Street, Manheim, PA 17547. Tel: (717) 664-0500, Fax: (717) 664-0449, Email: [email protected], Website: www.carelusa.com
See more

Catalog excerpts

GasSteam-2

VAC/PhaseFactorUnit Model Number: Capacity, Amperage, WattageUG045UG090UG180 > 230/1lbs/hr (kg/hr)100 (45)200 (90)400 (180)Height47.3 (1200mm)47.3Ԕ (1200mm)47.3 (1200mm)Width35.4Ԕ (900mm)40.2 (1020mm)40.2Ԕ (1020mm)Depth19.7 (500mm)22.5Ԕ (570mm)45 (1040mm)Ship Weight300 lbs (137kg)363 lbs (165kg)507 lbs (230kg)Operating Weight408 lbs (185kg)595 lbs (270kg)950 lbs (430kg)BTU Input120, 490 BTU/hr232, 640 BTU/hr444, 000 BTU/hrTypes of GasNatural Gas, Propane, ButaneSteam Outlets1 x 1-5/8Ԕ (40mm)2 x 1-5/8 (40mm)4 x 1-5/8Ԕ (40mm)Control Voltage24 VAC 50/60 HzMaximum Steam Pressure(0 - 2000 Pa)Feed...

 Open the catalog to page 2
