Product catalog summary
Overview: The document introduces a new range of electrode steam humidifiers designed for light commercial environments with capacities ranging from 5.5 lbs/hr to 12 lbs/hr. These humidifiers are suitable for various applications such as copier rooms, doctor's offices, wine cellars, walk-in humidors, and small print shops.
Features:
- Disposable Steam Cylinder
- Anti-Foaming Algorithm
- Communication and Alarm Output Connections
- Built-in Drain Tempering
- Comprehensive LCD Display
- Fan Relay for AHU/Duct Installations
- Optional Integrated Fan for Direct Room Discharge
Applications: The humidifiers are ideal for light commercial applications up to 12 lbs/hr, including copier rooms, doctor's offices, wine cellars, walk-in humidors, and small print shops.
Technical Specifications:
- Models: CH*02V1000, CH*05V2000
- Steam Production: 5.5 lbs/hr (2.5 kg/hr) and 12 lbs/hr (5.4 kg/hr)
- Power Supply: 110 V, 60 Hz single-phase and 230 V, 60 Hz single-phase
- Power Consumption: 1.86 kW and 4.05 kW
- Current: 16.88 A and 17.61 A
- Type of Control: ON/OFF and 0 to 10 V proportional
- Control Range: 20 to 100%
- Accessory Connections: External fan, alarm relay, external enabling, 24 V
- Steam Connection: 7/8” (22 mm)
- Fan Flow-rate: 71 cfm (120 m3/h)
- Max Steam Pressure: 4” WC (1000 Pa)
- Water Supply Connection: 3/4”
- Supply Water Conductivity: 125 to 1250 µS/cm
- Supply Water Flow-rate: 0.45 gpm (1.7 l/min)
- Drain Water Connection: 1 1/4” (32 mm external)
- Drain Water Temperature: <140°F (<60°C)
- Drain Flow: 1.32 gpm (5 l/min)
- Operating Conditions: 34 to 104°F (1 to 40°C), 10 to 90% rH non-condensing
- Storage Conditions: 14 to 158°F (-10 to 70°C), 5 to 95% rH non-condensing
- Index of Protection: IP20
- Dimensions: 13.4 x 23.6 x 8.03 inches (341 x 600 x 204 mm)
Additional Product - Clima Thermostat-Humidistat: The Clima thermostat-humidistat is designed to work with the compactSteam humidifier, offering features such as 0 to 10 V proportional humidity control, automatic humidity set point compensation, alarm signaling, a daily timer, and direct power from compactSteam. It can also control heating, air-conditioning, and dehumidification functions with up to 11 different operating modes.
See more
Catalog excerpts

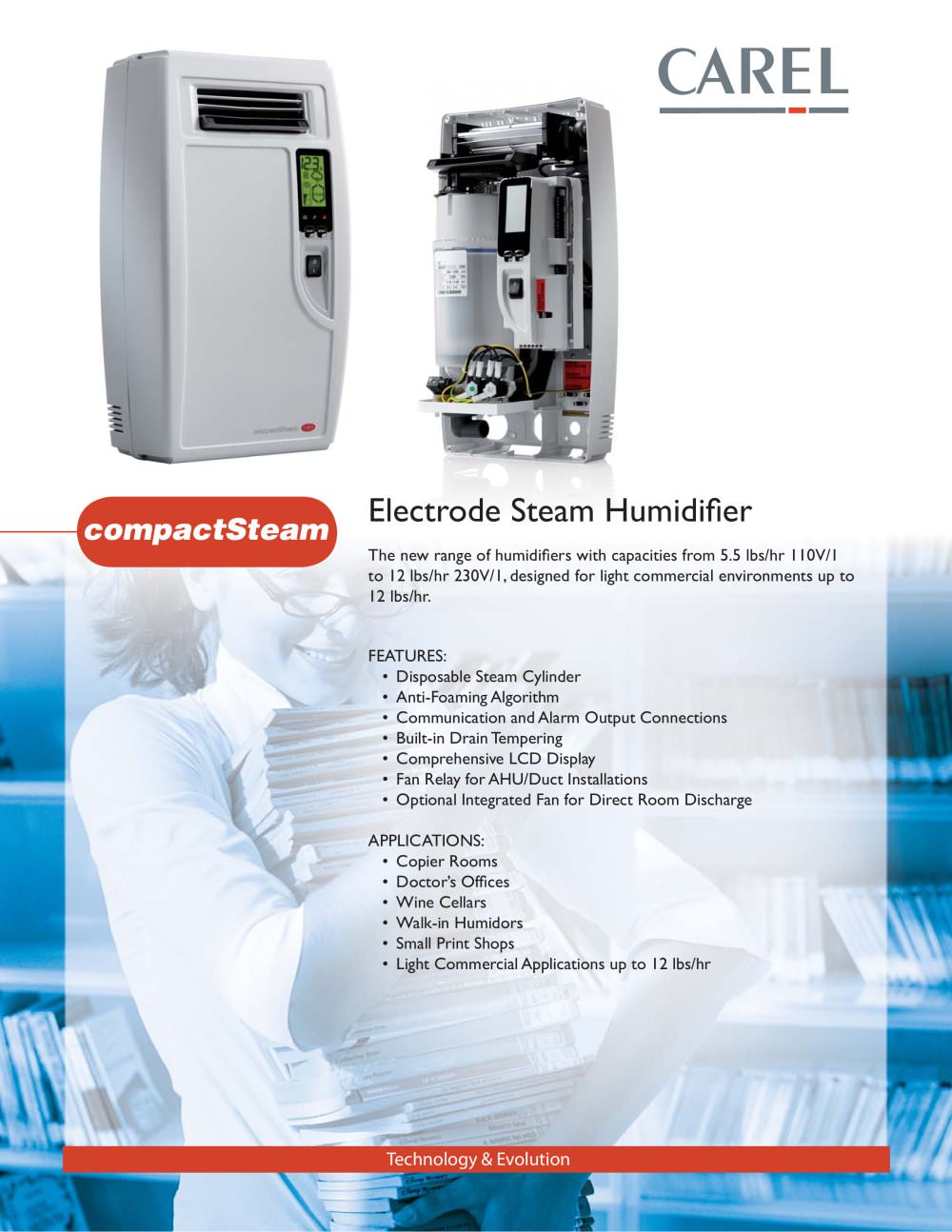

The new range of humidifi ers with capacities from 5.5 lbs/hr 110V/1 to 12 lbs/hr 230V/1, designed for light commercial environments up to 12 lbs/hr.FEATURES: Disposable Steam Cylinder Anti-Foaming Algorithm Communication and Alarm Output Connections Built-in Drain Tempering Comprehensive LCD Display Fan Relay for AHU/Duct Installations Optional Integrated Fan for Direct Room DischargeAPPLICATIONS:Copier Rooms Doctors Offi cesWine Cellars Walk-in Humidors Small Print Shops Light Commercial Applications up to 12 lbs/hr ҕ Օ Օ ՕՕ Օ Օ Technology & Evolution Technology & Evolution >
