Infrarouge

Product catalog summary

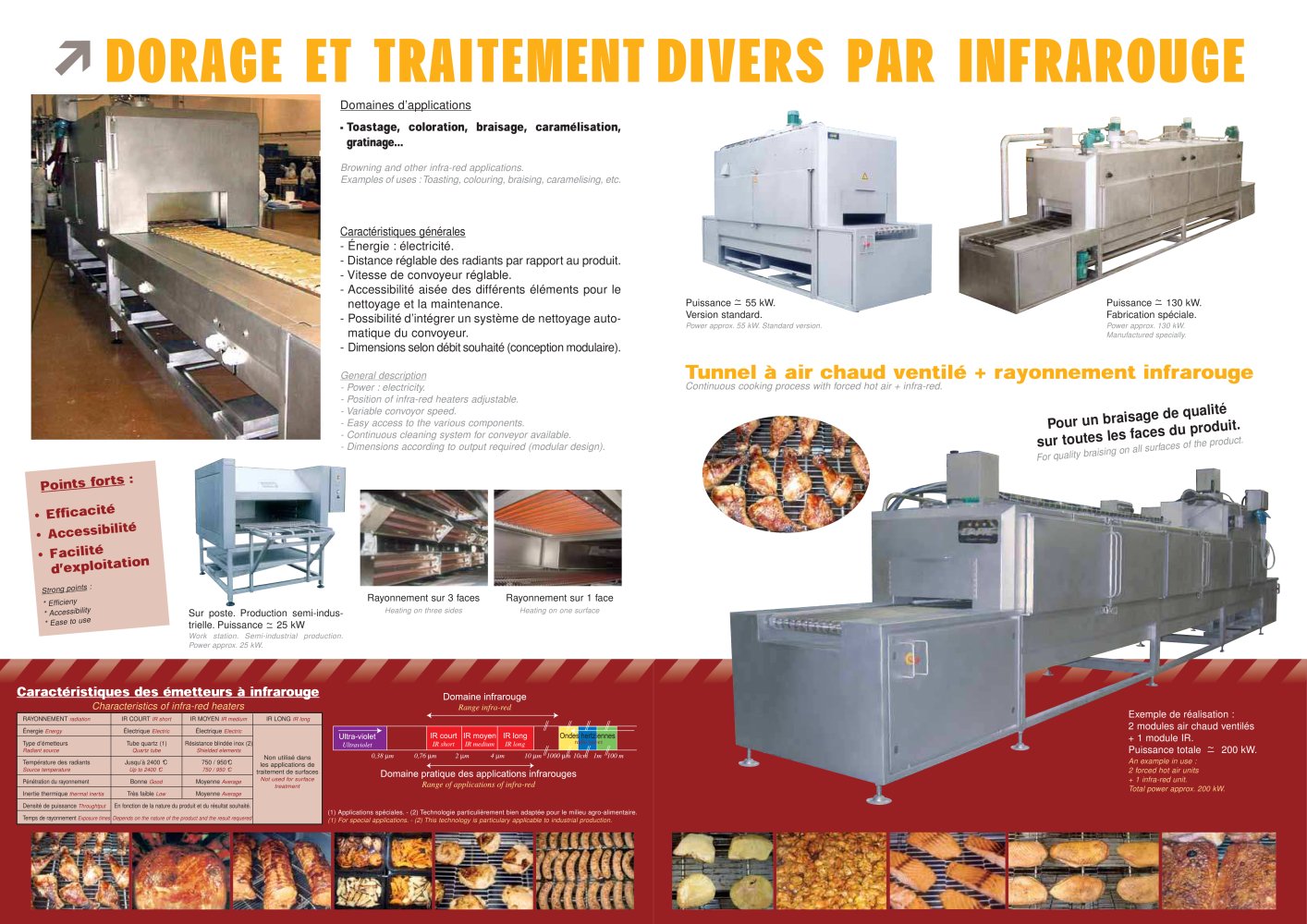

Overview: The document describes a continuous cooking process using a combination of forced hot air and infra-red radiation. It outlines different power configurations and applications for industrial cooking processes.

Specifications:

Standard version power: approximately 55 kW.
Specially manufactured version power: approximately 130 kW.
Example configuration: 2 forced hot air units + 1 infra-red unit, total power approximately 200 kW.

Applications:

Suitable for toasting, colouring, braising, caramelising, and gratinating.
Ensures quality braising on all surfaces of the product.

General Characteristics:

Energy source: electricity.
Adjustable position of infra-red heaters.
Variable conveyor speed.
Easy access for cleaning and maintenance.
Optional continuous cleaning system for the conveyor.
Modular design allows for dimensions according to output requirements.

Key Advantages:

Efficiency
Accessibility
Ease of use

Infra-red Heater Characteristics:

Types: Short, Medium, and Long IR radiation.
Energy: Electric.
Radiant sources: Quartz tube and shielded elements.
Temperature range: Up to 2400 °C for quartz tubes, 750/950 °C for shielded elements.
Penetration: Good for short IR, average for medium IR.
Thermal inertia: Very low for short IR, average for medium IR.
Not used for surface treatment applications.

Special Notes:

Short IR is used for special applications.
Shielded elements are particularly suitable for the food industry.
