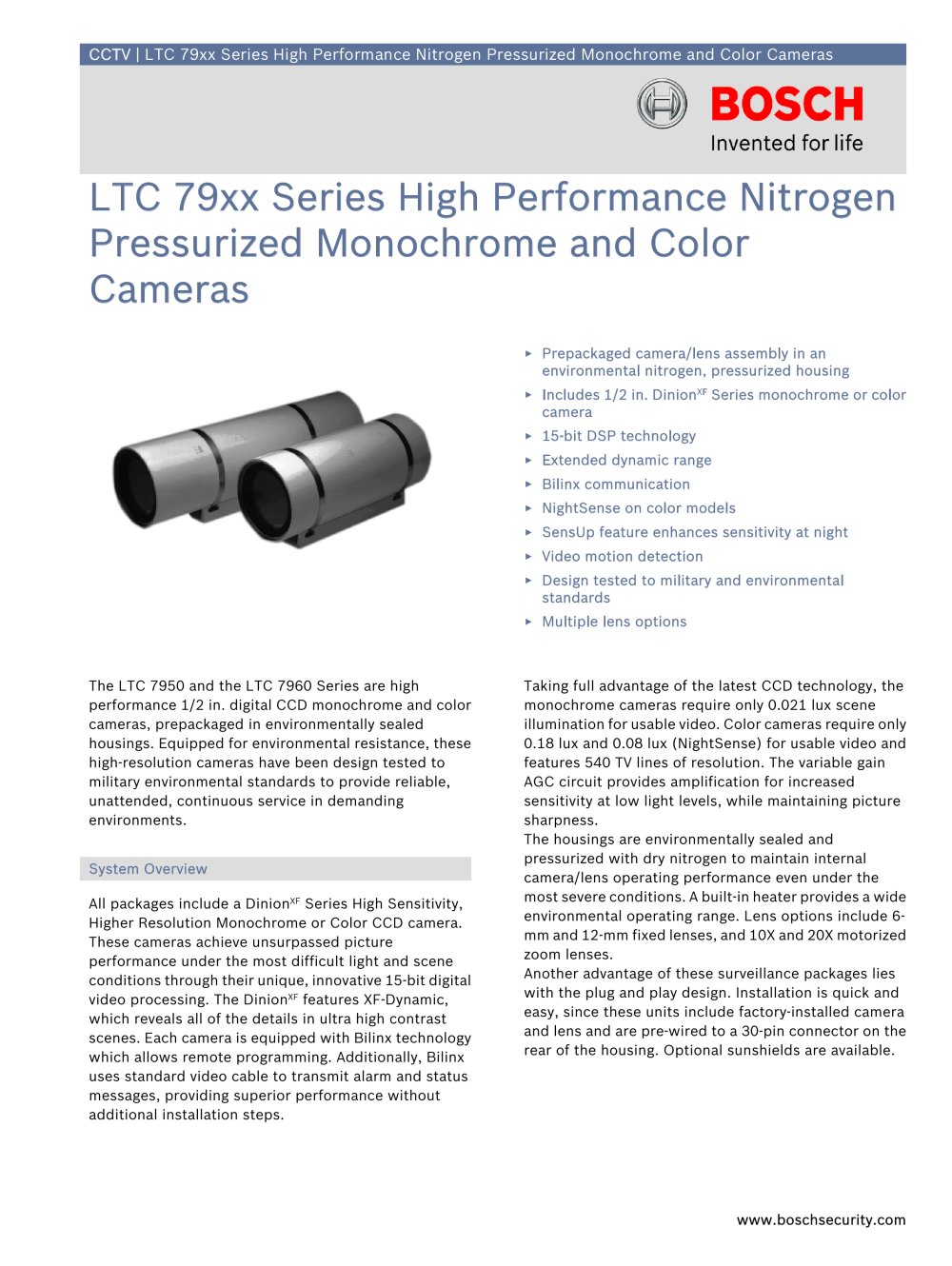

Overview: The LTC 79xx Series includes high-performance nitrogen-pressurized monochrome and color cameras, specifically the LTC 7950 and LTC 7960 models. These cameras are designed for demanding environments, featuring environmentally sealed housings and military-standard testing for reliability.

System Features: The cameras utilize DinionXF Series technology, offering high sensitivity and resolution through 15-bit digital video processing. They include XF-Dynamic for high contrast scenes and Bilinx technology for remote programming and communication via standard video cables. Monochrome cameras require 0.021 lux, while color cameras need 0.18 lux (0.08 lux with NightSense) for usable video, with a resolution of 540 TV lines.

Environmental Design: The cameras are housed in nitrogen-pressurized enclosures with built-in heaters, supporting a wide range of environmental conditions. Lens options include fixed and motorized zoom lenses, with plug-and-play installation facilitated by pre-wired connections.

Certifications and Approvals: The cameras comply with FCC Part 15 for electromagnetic compatibility and are designed to meet NEMA-4 and IP-68 enclosure protection standards.

Technical Specifications: The cameras operate on 115 VAC, 60 Hz, with a power consumption of less than 100 W. They feature a 1/2 in. CCD imager, 768 x 492 active picture elements, and a signal-to-noise ratio greater than 50 dB. Remote control options include AGC, electronic shutter, NightSense, and dynamic range settings.

Mechanical and Environmental Specifications: The housing is constructed from extruded aluminum with a glass faceplate and includes a thermostatically-controlled window heater. The cameras operate in temperatures from -40ºC to 55ºC and altitudes up to 15,000 m, with 100% humidity resistance.

Accessories and Ordering Information: Optional sunshields are available for different lens models. The document provides detailed ordering information for various camera and lens configurations.
