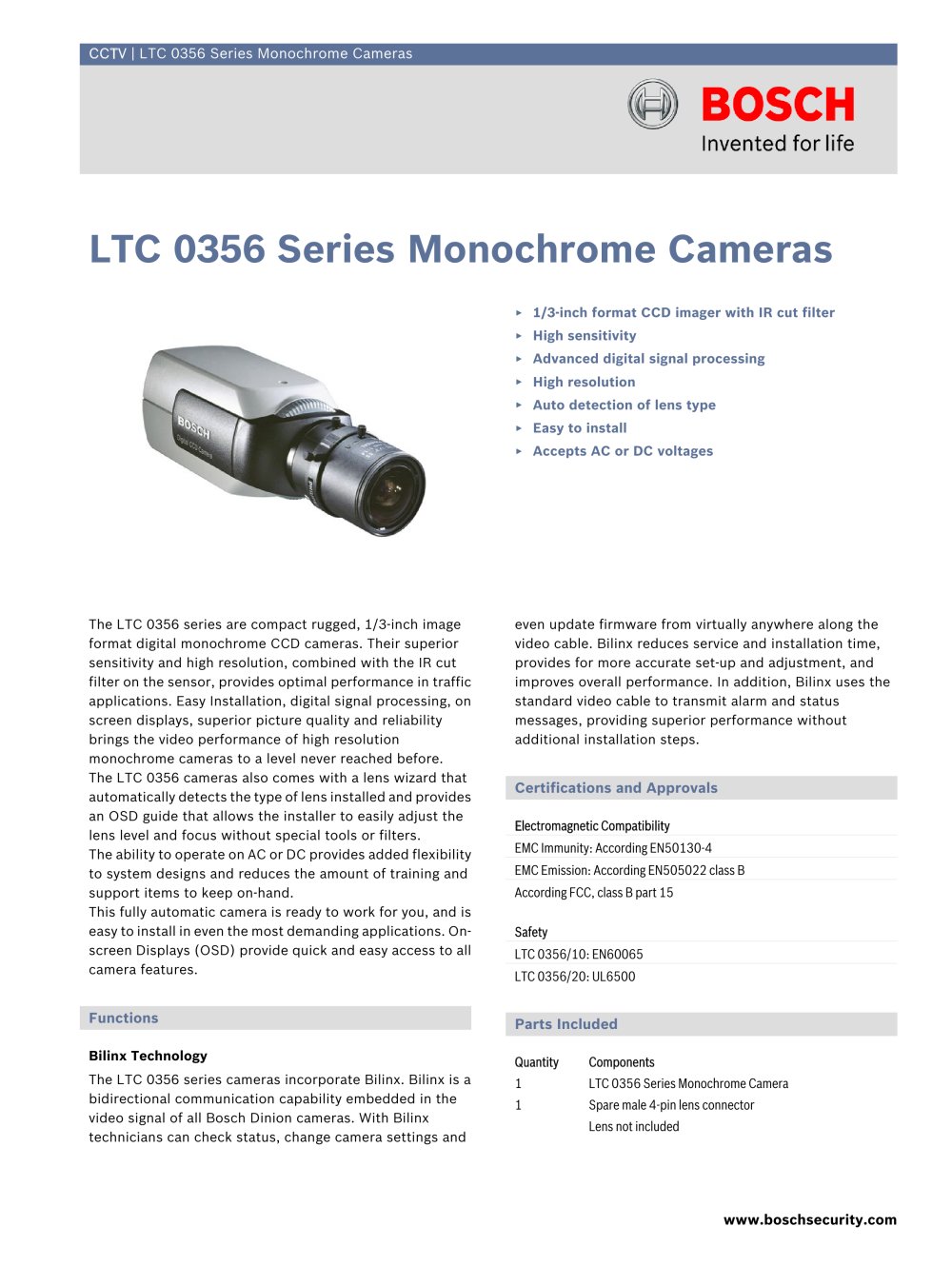

LTC 0356 Series Monochrome Cameras

LTC 0356 Series Monochrome Cameras

Product catalog summary

Overview: The LTC 0356 series are compact, rugged monochrome CCD cameras designed for high-resolution and high-sensitivity performance, particularly in traffic applications. They feature an IR cut filter, digital signal processing, and easy installation with on-screen displays (OSD) for superior picture quality and reliability.

Key Features:

1/3-inch CCD imager with IR cut filter
High sensitivity and resolution
Auto detection of lens type with OSD guide
Operates on AC or DC for flexible system design
Bilinx technology for remote status checks and settings adjustments

Technical Specifications:

Electrical: Supports 12 VDC/24 VAC with a power consumption of 4 W
Imager: Interline transfer CCD with active pixels of 752 H x 582 V (LTC 0356/10) and 582 H x 494 V (LTC 0356/20)
Sensitivity: Usable picture at 0.2 lux, full video at 0.9 lux
Resolution: 570 TVL with a signal-to-noise ratio of 50 dB
Shutter: Automatic, with a range from 1/50 to 1/500000 sec. (LTC 0356/10) and 1/60 to 1/600000 sec. (LTC 0356/20)
Video Output: Composite video 1.0 Vpp, 75 ohm

Certifications and Approvals:

EMC Immunity: EN50130-4
EMC Emission: EN505022 class B, FCC class B part 15
Safety: EN60065 (LTC 0356/10), UL6500 (LTC 0356/20)

Mechanical and Environmental:

Dimensions: 58 x 66 x 122 mm
Weight: 0.45 kg
Operating Temperature: -20°C to 50°C
Storage Temperature: -25°C to 70°C
Operating Humidity: 5% to 93% non-condensing

Ordering Information: The series includes models LTC 0356/10 and LTC 0356/20, with various compatible lenses and power supply units available as accessories.

Contact Information: Bosch Security Systems provides regional contact details for Europe, Middle East, Africa, Americas, and Asia-Pacific.
