28.19

28.19
2Pages

Catalog excerpts

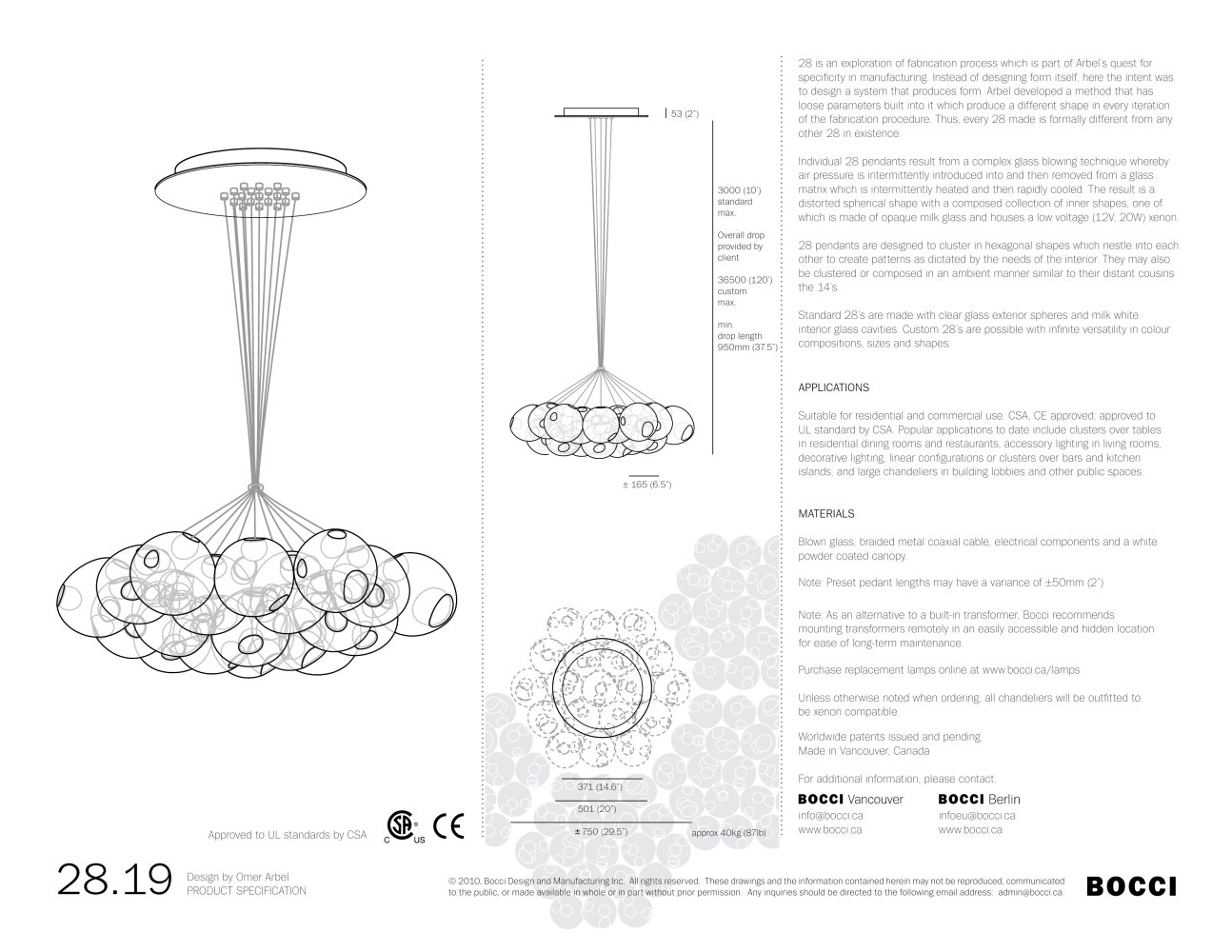

28 is an exploration of fabrication process which is part of Arbel’s quest for specificity in manufacturing. Instead of designing form itself, here the intent was to design a system that produces form. Arbel developed a method that has loose parameters built into it which produce a different shape in every iteration of the fabrication procedure. Thus, every 28 made is formally different from any other 28 in existence. 53 (2”) 3000 (10’) standard max. Overall drop provided by client 36500 (120’) custom max. min. drop length 950mm (37.5”) Individual 28 pendants result from a complex glass blowing technique whereby air pressure is intermittently introduced into and then removed from a glass matrix which is intermittently heated and then rapidly cooled. The result is a distorted spherical shape with a composed collection of inner shapes, one of which is made of opaque milk glass and houses a low voltage (12V, 20W) xenon. 28 pendants are designed to cluster in hexagonal shapes which nestle into each other to create patterns as dictated by the needs of the interior. They may also be clustered or composed in an ambient manner similar to their distant cousins the 14’s. Standard 28’s are made with clear glass exterior spheres and milk white interior glass cavities. Custom 28’s are possible with infinite versatility in colour compositions, sizes and shapes. APPLICATIONS Suitable for residential and commercial use. CSA, CE approved; approved to UL standard by CSA. Popular applications to date include clusters over tables in residential dining rooms and restaurants, accessory lighting in living rooms, decorative lighting, linear configurations or clusters over bars and kitchen islands, and large chandeliers in building lobbies and other public spaces. ± 165 (6.5”) MATERIALS Blown glass, braided metal coaxial cable, electrical components and a white powder coated canopy. Note: Preset pedant lengths may have a variance of ±50mm (2”) Note: As an alternative to a built-in transformer, Bocci recommends mounting transformers remotely in an easily accessible and hidden location for ease of long-term maintenance. Purchase replacement lamps online at www.bocci.ca/lamps Unless otherwise noted when ordering, all chandeliers will be outfitted to be xenon compatible. Worldwide patents issued and pending Made in Vancouver, Canada For additional information, please contact: 371 (14.6”) 501 (20”) R Approved to UL standards by CSA 28.19 Design by Omer Arbel PRODUCT SPECIFICATION ± 750 (29.5”) approx 40kg (87lb) info@bocci.ca www.bocci.ca infoeu@bocci.ca www.bocci.ca © 2010, Bocci Design and Manufacturing Inc. All rights reserved. These drawings and the information contained herein may not be reproduced, communicated to the public, or made available in whole or in part without prior permission. Any inquiries should be directed to the following email address: admin@bocci.ca.

Open the catalog to page 1

chandelier canopy position or Note The client is responsible wood blocking to securely Connections from the plywood Measure the plywood so that it fits within the canopy side walls (refer to detail above) Anchor the plywood backing to the structural ceiling substrate Connect transformers inside the canopy to line voltage ensuring to match black wire to black wire and white green wire with yellow stripe to the bare copper wire or green Note: As an option. Bocci recommends mounting hidden location for ease certified personnel to insure compliance with the code Anchor canopy into the plywood...
