GABION WALL ZENTURO

GABION WALL ZENTURO

GABION WALL ZENTURO

Product catalog summary
Overview
Zenturo Super is a comprehensive fencing solution known for its high design content and exceptional strength. It can be used as single panels or to create gabion walls, offering a personalized aesthetic look.

Benefits
  • High Strength: The panels are exceptionally strong due to narrower meshes compared to Zenturo Classic panels.
  • Functional Design: Ideal for gabion walls, allowing for a variety of infills to create a personalized look.
  • Easy Installation: Can be combined with Bekaclip posts or Zenturo post system for gabion walls.
  • Complete System: Includes panels in six heights, two types of posts, and a Zenturo Classic swing gate.

Applications
The Zenturo Super system is versatile, suitable for various fencing needs, and can be customized with different infills.

Specifications
  • Panel Dimensions: Width of 2005 mm and heights ranging from 655 mm to 2005 mm.
  • Mesh Sizes: 100 x 50 mm and 50 x 50 mm.
  • Wire Diameter: Horizontal wires are 5.00 mm, vertical wires are 4.15 mm.
  • Post Dimensions: Rectangular tube with a cross-section of 120 x 40 mm and wall thickness of 2.00 mm.

Panel Infill Options
  • Pixels: Square and rectangular plastic elements available in metallic anthracite.
  • Flexo Strips: Flexible plastic strips available in two widths, woven through the panel’s meshes.

Coating Technique
The panels are made of galvanized wire with an adhesion layer for perfect adhesion with the polyester top coating. Posts are galvanized internally and externally according to Euro standard EN 10346.

Additional Features
  • Gates: Compatible with Zenturo Classic swing gate.
  • Colors: Available in anthracite grey BF7016M, with other colors upon request.
See more

Catalog excerpts

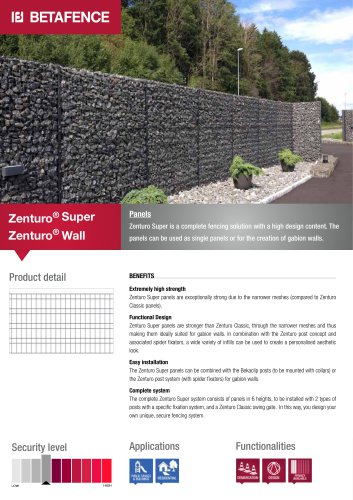

GABION WALL ZENTURO -1

Product detail BENEFITS- Extremely high strength Zenturo Super panels are exceptionally strong due to the narrower meshes (compared to Zenturo Classic panels). Functional Design Zenturo Super panels are stronger than Zenturo Classic, through the narrower meshes and thus making them ideally suited for gabion walls. In combination with the Zenturo post concept and associated spider fixators, a wide variety of infills can be used to create a personalised aesthetic look. Easy installation The Zenturo Super panels can be combined with the Bekaclip posts (to be mounted with collars) or the Zenturo post system (with spider fixators) for gabion walls. Complete system The complete Zenturo Super system consists of panels in 6 heights, to be installed with 2 types of posts with a specific fixation system, and a Zenturo Classic swing gate. In this way, you design your own unique, secure fencing system. Security level

 Open the catalog to page 1
GABION WALL ZENTURO -2

The Zenturo Super panels are flat panels with double (2D) alternating horizontal wires for added strength. The panels are 2005 mm wide and are available in heights from 655 mm up to 2005 mm. Mesh sizes: 100 x 50 and 50 x 50 mm Horizontal wire diameter: 5.00 mm Vertical wire diameter: 4.15 mm As a finishing touch, we have developed an extra panel (with wire diameter of 3.80 mm) which needs to be fixed at the top of the gabion wall (once the gabion wall has been filled up). It is available in anthracite (BF7016M). Posts and fixing systems The Zenturo Post is a rectangular tube with a cross section...

 Open the catalog to page 2

All Betafence International catalogs and technical brochures

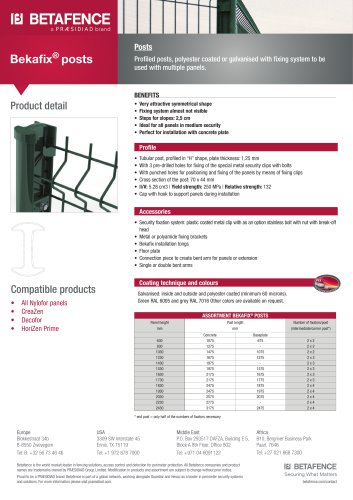

  1. BEKAFIX

    1  Page

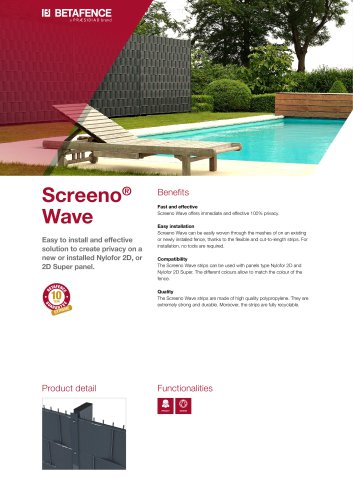

  2. SCREENO WAVE

    2  Pages

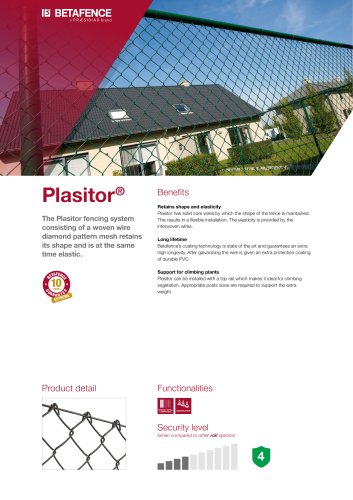

  3. PLASITOR
