Double Rack Oven

Double Rack Oven

Product catalog summary

Overview: The document provides detailed specifications and features of Belshaw Bros., Inc.'s modular deck ovens, specifically models ADO2W and ADO3W, designed for bakery use. These ovens are available in the USA, Canada, and Mexico.

Standard Features:

Modular, fully-insulated deck design with options for two or three pans wide capacity.
Available in configurations of one to four decks, each independently operated.
Equipped with double glazed full width/height viewing windows and a patented self-contained steam system.
Includes a single piece stone hearth on all decks and a digital control panel with various controls such as thermostat, bake and steam timer, and heat controls.
Comes with a stand with locking casters, a canopy with a 950 cfm fan, and a one-year parts/labor warranty.

Models:

ADO2W series: Single to four decks, two pans wide.
ADO3W series: Single to four decks, three pans wide.

Dimensions:

Overall width: 55.7" for 2-tray models, 74.4" for 3-tray models.
Overall depth: 49.6" with an additional 29" for canopy overhang.
Overall height: 98.5" including canopy and fan.
Heated area dimensions vary by model, with a minimum height of 7.25" with the door open.
Recommended clearance of 12" on all sides for cooling and servicing.

Electrical Data:

Power per deck: 6.2 KW for 2-tray models, 9.1 KW for 3-tray models.
Electrical requirements: 220 V/60hz/3ph with specific amperage per model.
Separate power supply required for the canopy fan.

Utilities:

Canopy fan and exhaust require a 6" O.D. round duct powered by a 950cfm fan motor.
Each oven deck requires a separate electrical connection.
Water supply: 1/2" NPT hot or cold water supply with specific pressure and quality requirements for steam operation.

Catalog excerpts

Fresh Answers > MODULAR DECK OVENS for todays bakery. ADO2W ҕ ADO3W Standard Features Modular fully-insulated deck designՕ Two or three pan wide capacity One, two, three or four decks Օ Each deck independently operated Double glazed full width/height viewing windows Օ Patented self-contained steam system Single piece stone hearth on all decks Օ Digital control panel features:Thermostat controlBake and steam timer control 7-day auto-on control Upper, lower and front heat controls Interior light Stand w/locking castersՕ Canopy w/950 cfm fan One year parts/labor warranty Models Above: ADO3W-3(3-deck oven, 3 pans wide) Օ ADO2W-1 (single deck/two pans wide) ADO2W-2 (two decks/two pans wide) Օ ADO2W-3 (three decks/two pans wide) ADO2W-4 (four decks/two pans wide) Օ ADO3W-1 (single deck/three pans wide) ADO3W-2 (two decks/three pans wide) Օ ADO3W-3 (three decks/three pans wide) ADO3W-4 (four decks/three pans wide) Available in USAՖCanadaMexico only 48 Belshaw Bros., Inc., 1750 22nd Avenue South, Seattle WA 98144-4590 USA ֩Belshaw 3/2005 Tel: 800-578-2547 Toll-free +1-206-322-5474 (International) Fax: 206-322-5425 www.belshaw.com [email protected] FOODSERVICE EQUIPMENT size="-5">

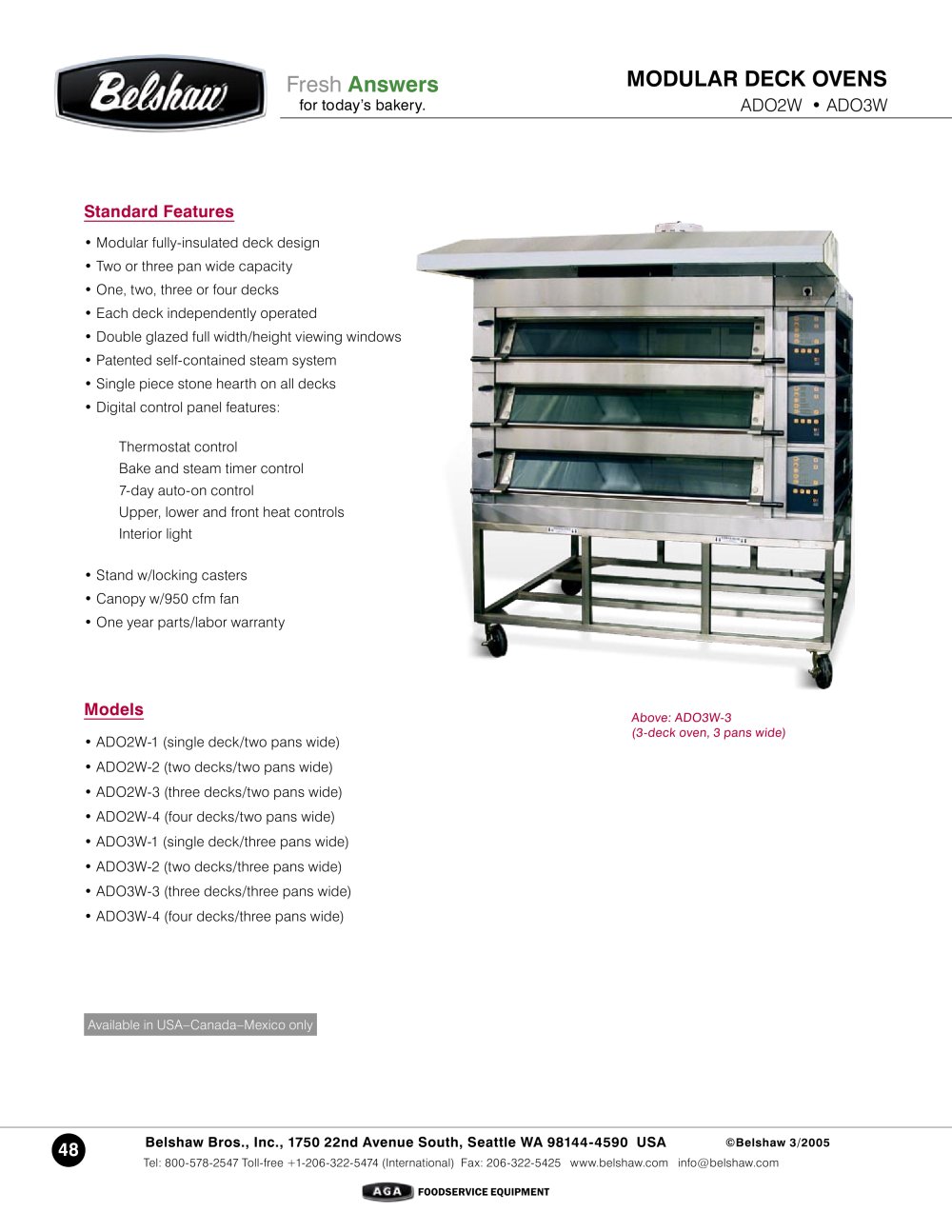

Open the catalog to page 1

ADOW2xADOW3֖xOverall width 55.7(1.42m)74.4ӓ(1.89m) Overall depth 49.6 (1.26m) with Canopy (A) add 29Ԕ (74cm) for overhang Overall height 98.5 (2.50m) (includes Canopy and Fan) Heated area width 37.3Ԕ (95cm)55.9 (1.42m) Heated area depth 32.3Ԕ (82cm) Heated area height 7.25 (185mm) at mimimum, with door open Clearance (all sides) 12Ԕ (30cm) recommended for cooling and to allow servicing. > 220 V/60hz/3ph220 V/60hz/3ph6.2 KW9.1 KW Power per deck 16.75 A25 A Cords 3ph + Neutral + Ground, length 108 (2.75m) Power for canopy Separate supply, 220V/60hz/1ph @ 6A >

Open the catalog to page 2
