Belshaw
Cake Donut Depositors

Cake Donut Depositors

Product catalog summary

Overview: This document provides detailed information about Belshaw Bros., Inc.'s range of donut depositors, including the Type 'B', Type 'F', Type 'N', and Donut Robot® models. These depositors are designed for precision and durability, suitable for various fryer types and sizes.

Specifications:

Type 'B' Depositor: A mechanically assisted, hand-crank machine for open kettle fryers. It holds 15 lbs (7 kg) of batter and can deposit 60 to 100 donuts per minute. Compatible with all 10 Belshaw donut plungers.
Type 'F' Depositor: Similar in size to Type 'B', but motorized with a touch-sensitive handle, allowing up to 115 strokes per minute. It reduces frying time variability and is easier on the operator. Available in a "Deluxe" option with a polished aluminum body.
Type 'N' Depositor: Holds 12 lbs (5 kg) of batter, suitable for smaller fryers like the Belshaw 616 tabletop fryer. The Automatic Type 'N' is for use with Belshaw Mark IX Donut Robot® fryers only.
Donut Robot® Automatic Depositors: These models require only batter filling and operate with their own set of plungers for various donut types.

Materials and Construction: The depositors feature aluminum alloy frames, hardened steel cams, bronze trip arms, and stainless steel cutter units. They are mountable on walls or columns.

Dimensions and Power:

Type 'B': Shipping weight 30 lbs (14 kg), hopper capacity 15 lbs (7 kg), max output 100 pieces/min.
Type 'F': Shipping weight 40 lbs (18 kg), hopper capacity 15 lbs (7 kg), max output 115 pieces/min, power requirements vary by voltage.
Type 'N': Shipping weight 25 lbs (11 kg), hopper capacity 12 lbs (5 kg), max output 100 pieces/min.
Donut Robot Mark II - IX: Shipping weight 36 lbs (16 kg), hopper capacity 10 lbs (4.5 kg), power requirements vary by voltage.

Certifications: For certifications, refer to the Automatic Fryers section of the Equipment Guide.

Catalog excerpts

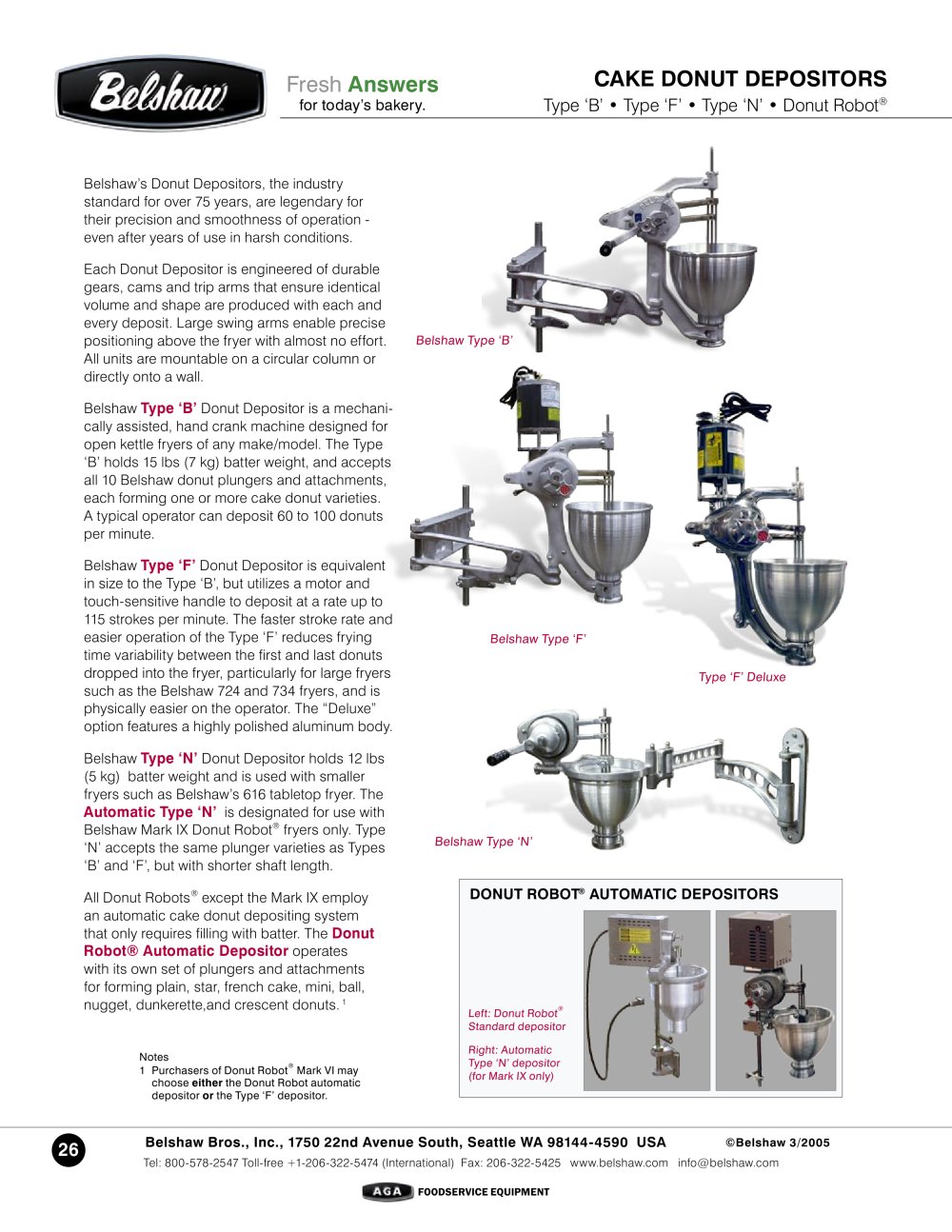

1 Left: Donut Robot > ή Standard depositorRight: Automatic Type Nђ depositor (for Mark IX only) Notes1 Purchasers of Donut Robot > Mark VI may choose either the Donut Robot automatic depositor or the Type ΑF depositor. >

Open the catalog to page 1
