BAXTER
Triple wide proof box

Triple wide proof box

Product catalog summary

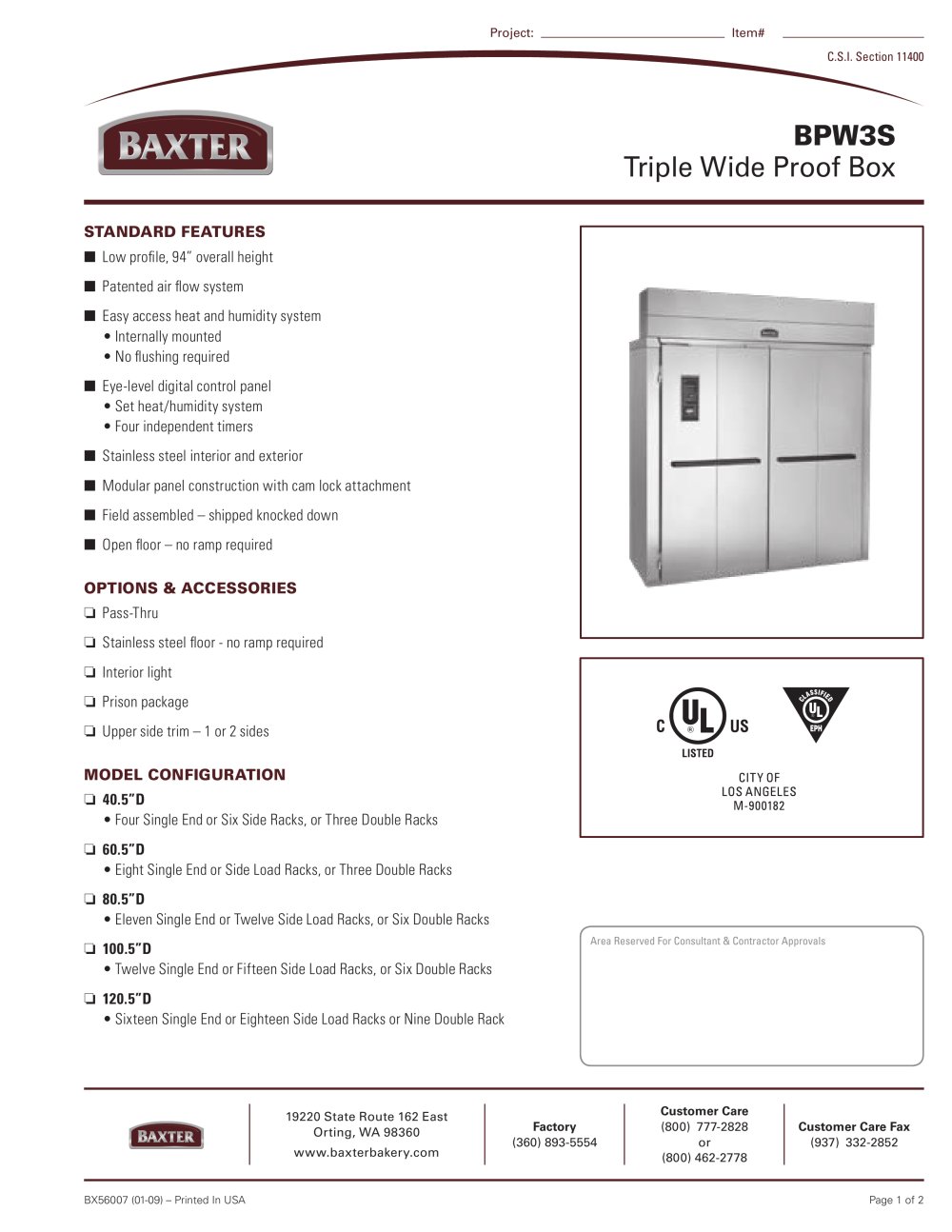

Overview: The document provides detailed specifications and features of the BPW3S Triple Wide Proof Box manufactured by Baxter Mfg. It highlights the construction, features, options, and installation requirements of the proofer.

Standard Features:

Low profile with a 94” overall height.
Patented air flow system with an internally mounted heat and humidity system that requires no flushing.
Eye-level digital control panel with four independent timers.
Stainless steel interior and exterior with modular panel construction and cam lock attachment.
Field assembled and shipped knocked down with an open floor design, eliminating the need for a ramp.

Options & Accessories:

Pass-Thru option.
Stainless steel floor with no ramp required.
Interior light and prison package options.
Upper side trim available for one or two sides.

Model Configurations: The proofer is available in various depths (40.5”D to 120.5”D) accommodating different rack configurations, from single end to double racks.

Physical Data: The document provides detailed interior and exterior dimensions for each model configuration, along with power input requirements and shipping information.

Utilities & Installation Notes:

Water supply must meet specific hardness, pH, and chloride concentration requirements.
Drain and power connections are specified, with recommendations for installation on a level floor.

Short Specification: The proofer is constructed from stainless steel with foam insulation and gaskets for energy efficiency. It features digital controls for temperature and humidity, a patented air flow system, and requires no ramp. The unit is approved by UL for safety and sanitation.
