Rotating Single Rack Oven - Gas

Rotating Single Rack Oven - Gas
2Pages

Catalog excerpts

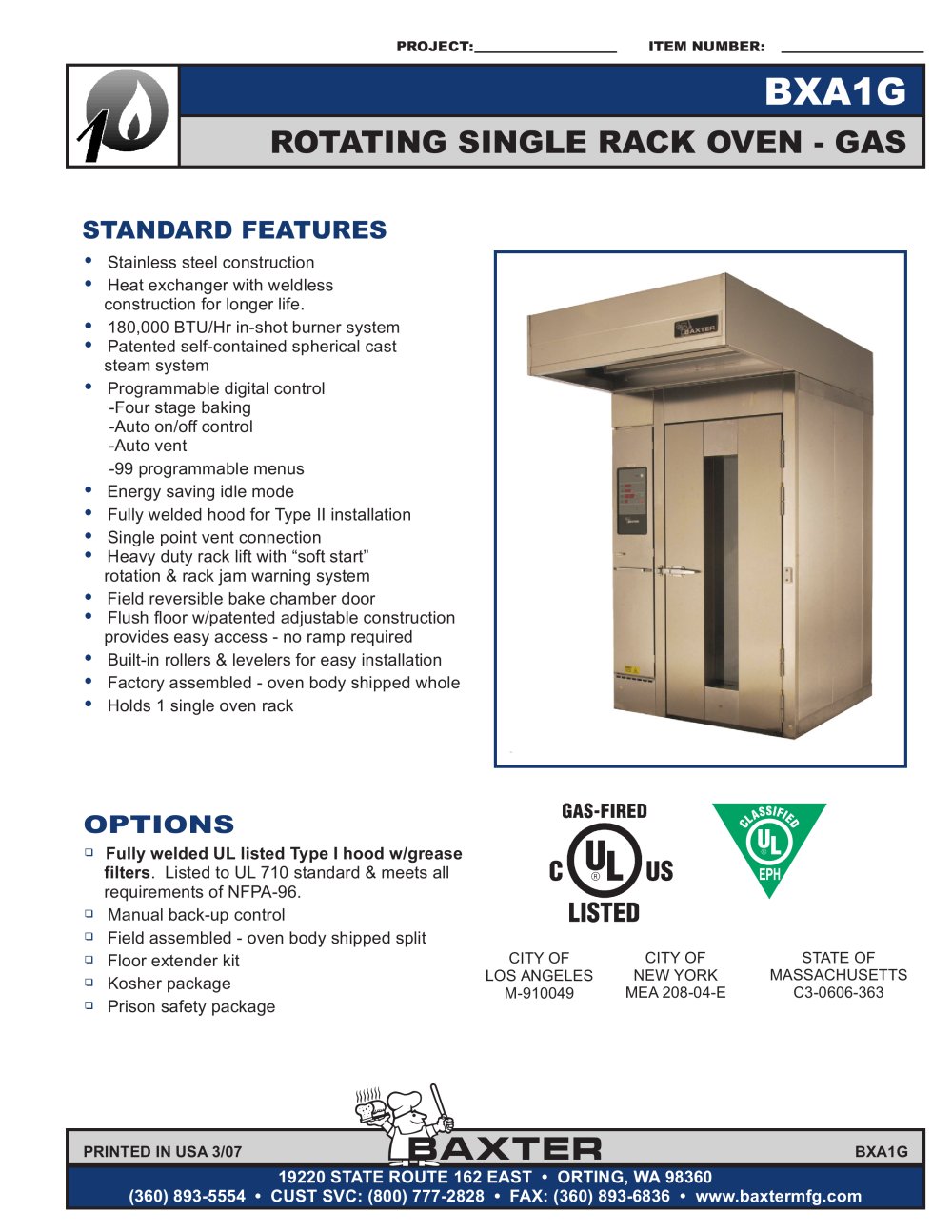

PROJECT: ITEM NUMBER: Stainless steel constructionHeat exchanger with weldless construction for longer life.180,000 BTU/Hr in-shot burner systemPatented self-contained spherical > !!!!!!! !!!!!! ! cast steam systemProgrammable digital control -Four stage baking -Auto on/off control -Auto vent -99 programmable menusEnergy saving idle modeFully welded hood for Type II installationSingle point vent connectionHeavy duty rack lift with soft startӔ rotation & rack jam warning systemField reversible bake chamber doorFlush floor w/patented adjustable construction provides easy access - no ramp requiredBuilt-in rollers & levelers for easy installationFactory assembled - oven body shipped wholeHolds 1 single oven rack Fully welded UL listed Type I hood w/grease filters . Listed to UL 710 standard & meets all requirements of NFPA-96.Manual back-up controlField assembled - oven body shipped splitFloor extender kitKosher packagePrison safety package > 111 1 1 1 > CITY OFLOS ANGELESM-910049 CITY OFNEW YORKMEA 208-04-ESTATE OFMASSACHUSETTSC3-0606-363 PRINTED IN USA 3/07BXA1G 19220 STATE ROUTE 162 EAST ORTING, WA 98360(360) 893-5554 Օ CUST SVC: (800) 777-2828 FAX: (360) 893-6836 Օ www.baxtermfg.com >

Open the catalog to page 1

2.0 (5.1 cm) 23.0Ԕ(58.4 cm) Highest Pointon Oven: GASWATERPOWER Drain 104.0 (264.2 cm) 6.0Ԕ (15.2 cm) 7.0 (17.8 cm)14.0Ԕ(35.6 cm) Power* Minimum Ceiling Height: 75.5 (191.8 cm)30.5Ԕ (77.5 cm)51.0 (129.5 cm)Drain 10 feet (3 m) 99.5Ԕ (252.7 cm) HOOD VENT 5.5 (14.0 cm)WaterGas Shipping WeightAssembled: DRAINFITTING6.3Ԕ(15.9 cm) DRAINFITTING7.0(17.8 cm) Vent 2,775 lbs. (1259 kg) Shipping WeightKnock-down: 27.5Ԕ (69.9 cm) 2,995 lbs. (1359 kg)Freight Class: 70 55.0 (139.7 cm) 51.0Ԕ (129.5 cm) 55.0 (139.7 cm) Gas Connect Point: 3/4Ԕ NPT Water Connect Point: 1/2 NPT. Cold water @ 30 psi > (207 kPa)...
